OmniSTAR 8200HP User Manual
Issue 1.07, 10/2008
33
The Carrier Phase screen shows whether or not the receiver is capable of
processing carrier phase differential corrections broadcast by an RTK base
station.

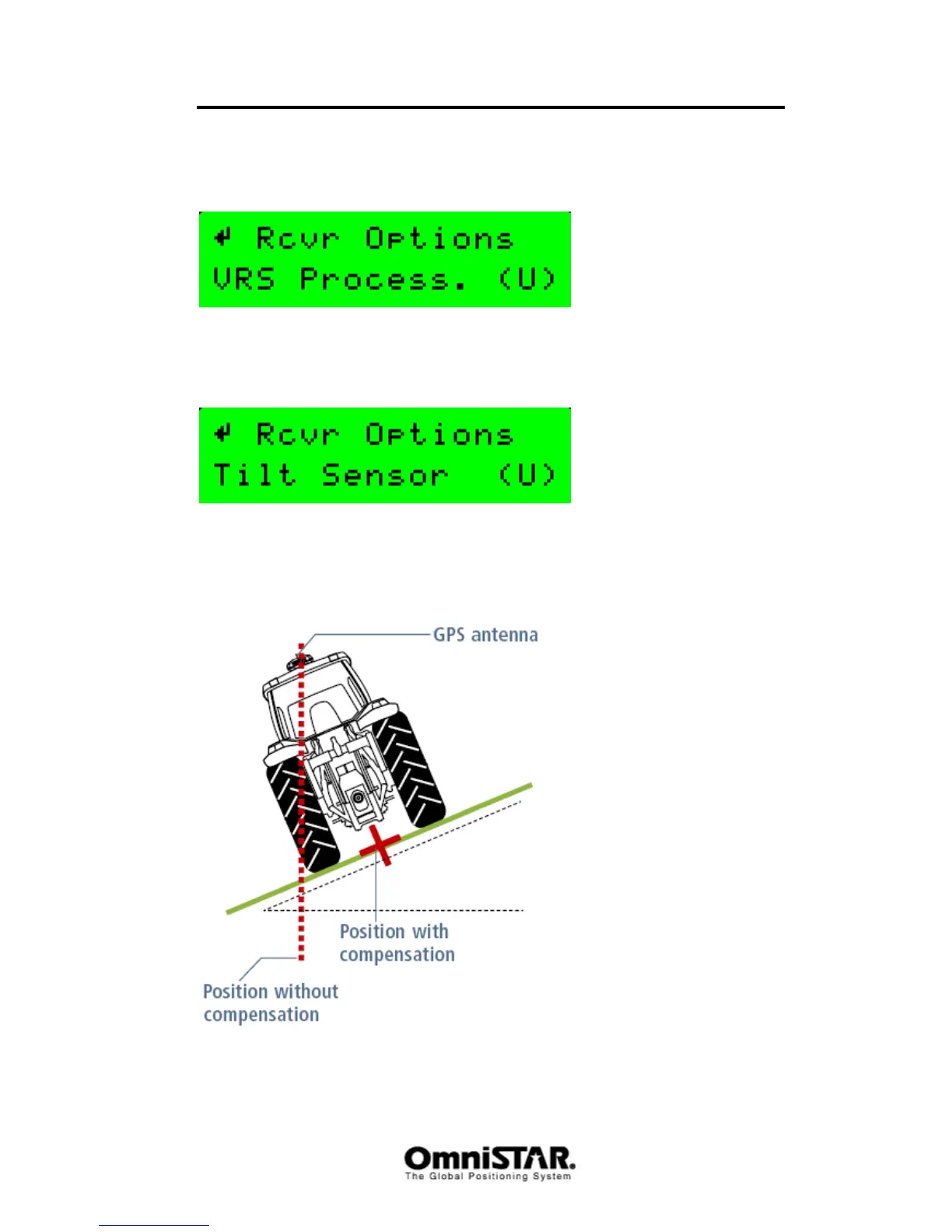

Figure 54: Receiver Options: VRS Processing
The VRS (Virtual Reference Station) option allows the user to operate the
receiver within an RTK network.
Figure 55: Receiver Options: Tilt Sensor
The Tilt Sensor screen shows whether or not the receiver is capable of
processing information from a tilt sensor, in order to compensate for the
position errors caused by a high mounted receiver used on a non-level surface
(see Figure 56).
Figure 56: Position error caused by a tilted, high-mounted receiver antenna
