Fuji Xerox DocuCentre-V C2263

Machine Components
63
Product Overview
2
 Finisher-B1 (optional)

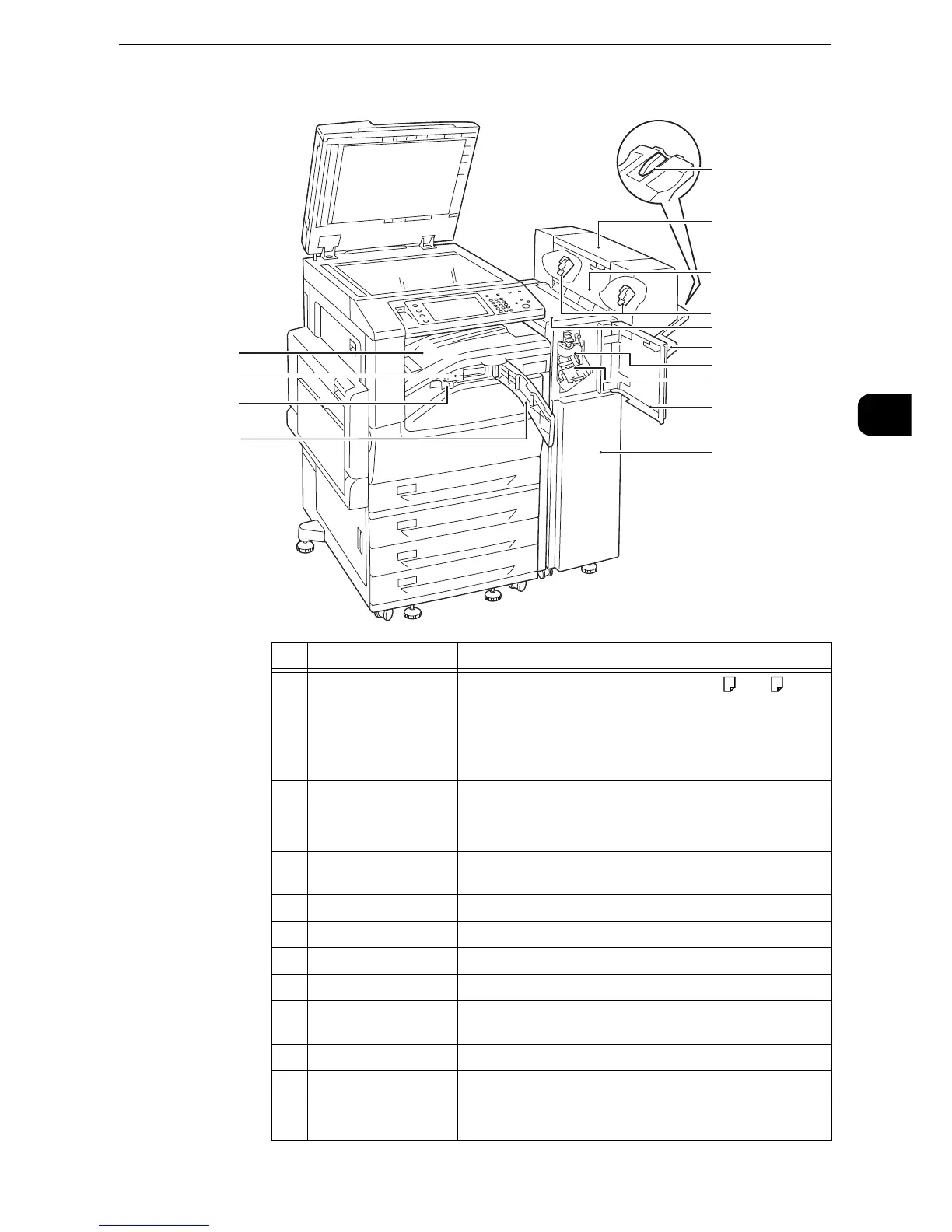

No. Component Function
1 Tray attachment
Install this attachment when delivering A4 or B5 paper
to the finisher tray without stapling.
Reference
z
For more information, refer to "Installing the Tray Attachment on the
Finisher-B1" (P.88).
2 Booklet unit (optional) Staples creased outputs.
3 Booklet unit side cover Open this cover when replacing the booklet staple
cartridge.
4 Booklet staple
cartridge
Contains staples. Remove this cartridge when replacing or
adding staples, or clearing staple jams.
5 Top cover Open this cover to clear paper jams.
6 Finisher tray Stapled or creased outputs are delivered here.
7 Creaser unit Creases outputs in half.
8 Staple cartridge Contains staples.
9 Front cover Open this cover when clearing paper jams or replacing
staples.
10 Finisher-B1 (optional) Staples copies or prints.
11 Center tray Copies or prints are delivered here.
12 Hole-punch waste
container
Collects scraps from the puncher.
