Fujitsu ETERNUS CS800 User Manual

10.3 VTL Configuration
Target Usage
Use the Target Usage page to view current target and device mappings for the ETERNUS
CS800.
To access the Target Usage page, on the Host Access page, click the Target Usage tab
(see "Target Usage Page" on page 240).

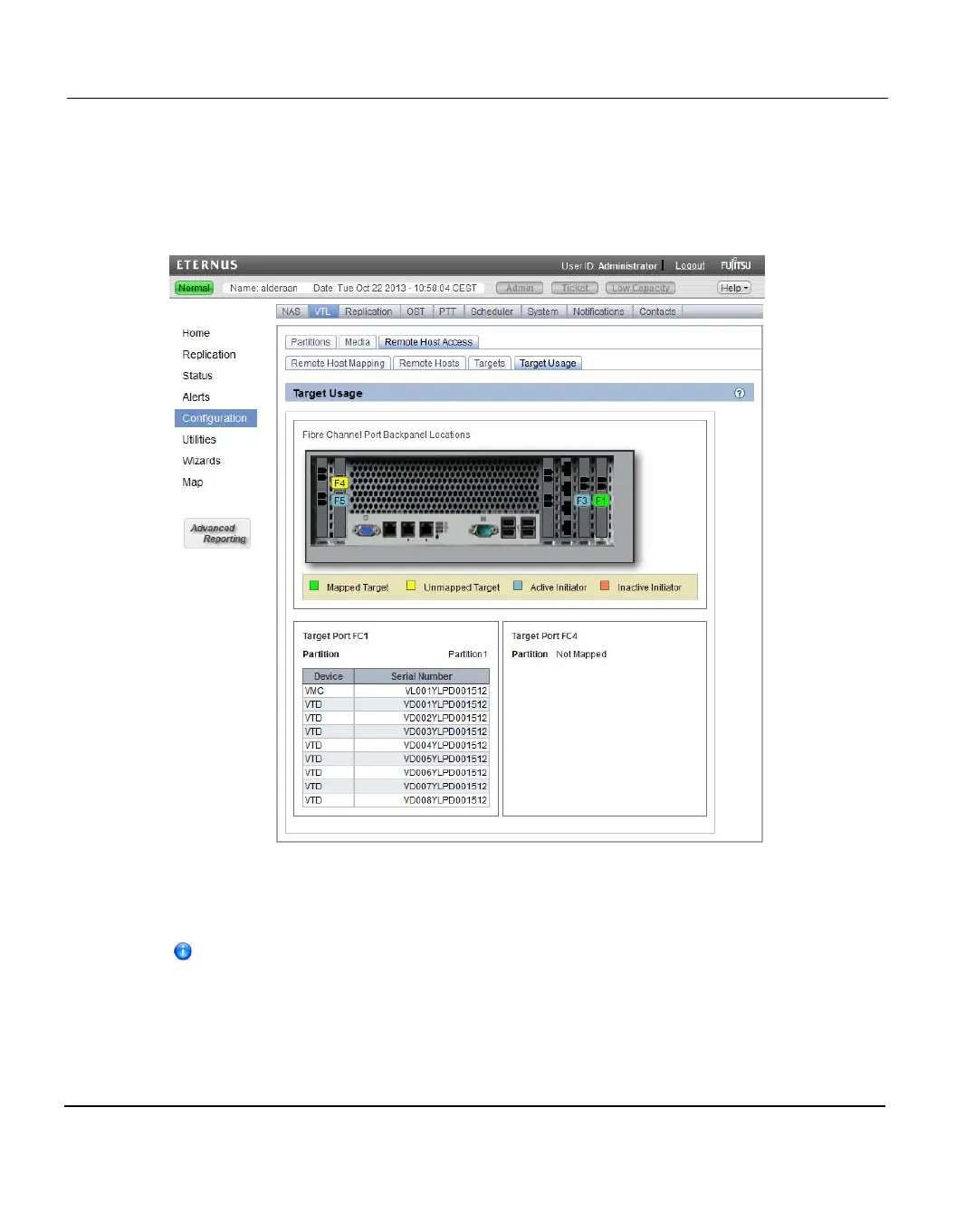

Figure 158: Target Usage Page
The Backpanel Locations section displays a graphical representation of the Fibre Channel
and Ethernet ports as they appear on the rear of the system.
A mapped (green) status indicates the host is currently logged on to one or more
Fibre Channel target ports.
Each target Fibre Channel port is displayed, along with the partition and virtual media changer
and tape drives (VMC and VTDs) mapped to the port.
240 ETERNUS CS800
