5.2 Installing the components in the rack

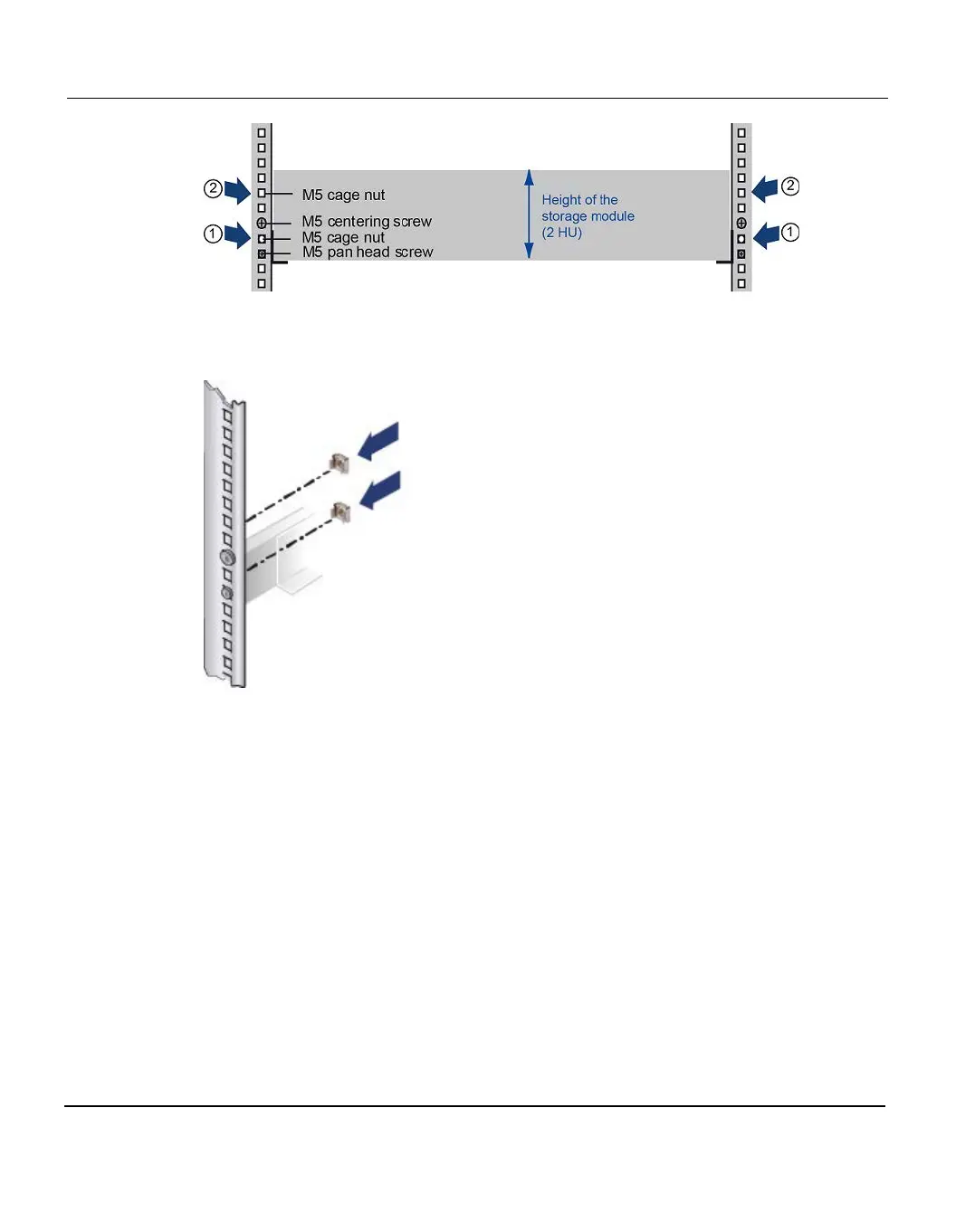

Figure 56: Locating the mounting position
2. Push the M5 cage nuts into the 2nd holes of the front rack pillars above the base line of
the storage module (1). Push further M5 cage nuts into the 5th holes too (2).
Figure 57: Inserting the Cage Nut
3. Attach the support bracket to the left rear rack pillar, see "Fitting the Support Bracket" on
page 85.
4. Insert the pins of the left slide rail in the 1st and 3rd holes from the bottom of the support
bracket (see 1 in figure "Inserting the Pins of the Left Slide Rail" on page 91 ).
90 ETERNUS CS800
