iRMC S2/S3 151
System Information - Information on the server
System FRU / IDPROM Information
Information on the FRUs (Field Replaceable Units) is listed under
System FRU/IDPROM Information. FRUs are system components that can be
released and removed from the system. The CSS Component column indicates
for each of the components whether the CSS (Customer Self Service)
functionality is supported.

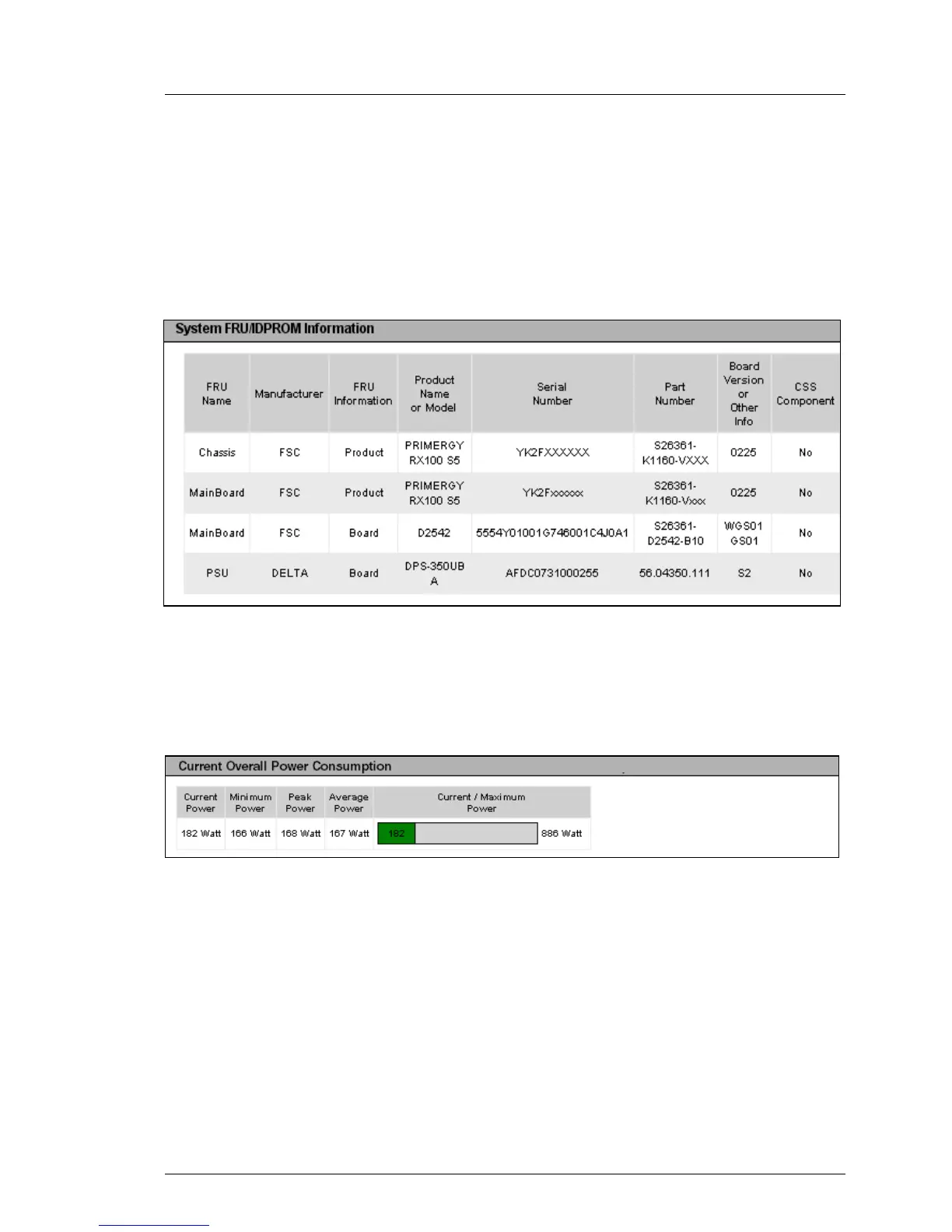

Figure 71: System Overview page - System FRU / IDPROM Information
Current Overall Power Consumption
I This option is not supported for all PRIMERGY servers.
Figure 72: System Overview page - Current Overall Power Consumption
Under Current Overall Power Consumption you can see all the measurements
current, minimum, maximum and average power consumption for the server in
the current interval.
A graphical display also shows the current power consumption of the server
compared with the maximum possible power consumption.
