12.2 VLAN
By implementing VLAN segmentation in accordance with 802.1Q, you can configure
VLANs on your device. The wireless ports of an access point, in particular, are able to re-
move the VLAN tag of a frame sent to the clients and to tag received frames with a pre-
defined VLAN ID. This functionality makes an access point nothing less than a VLAN-
aware switch with the enhancement of grouping clients into VLAN groups. In general,
VLAN segmenting can be configured with all interfaces.

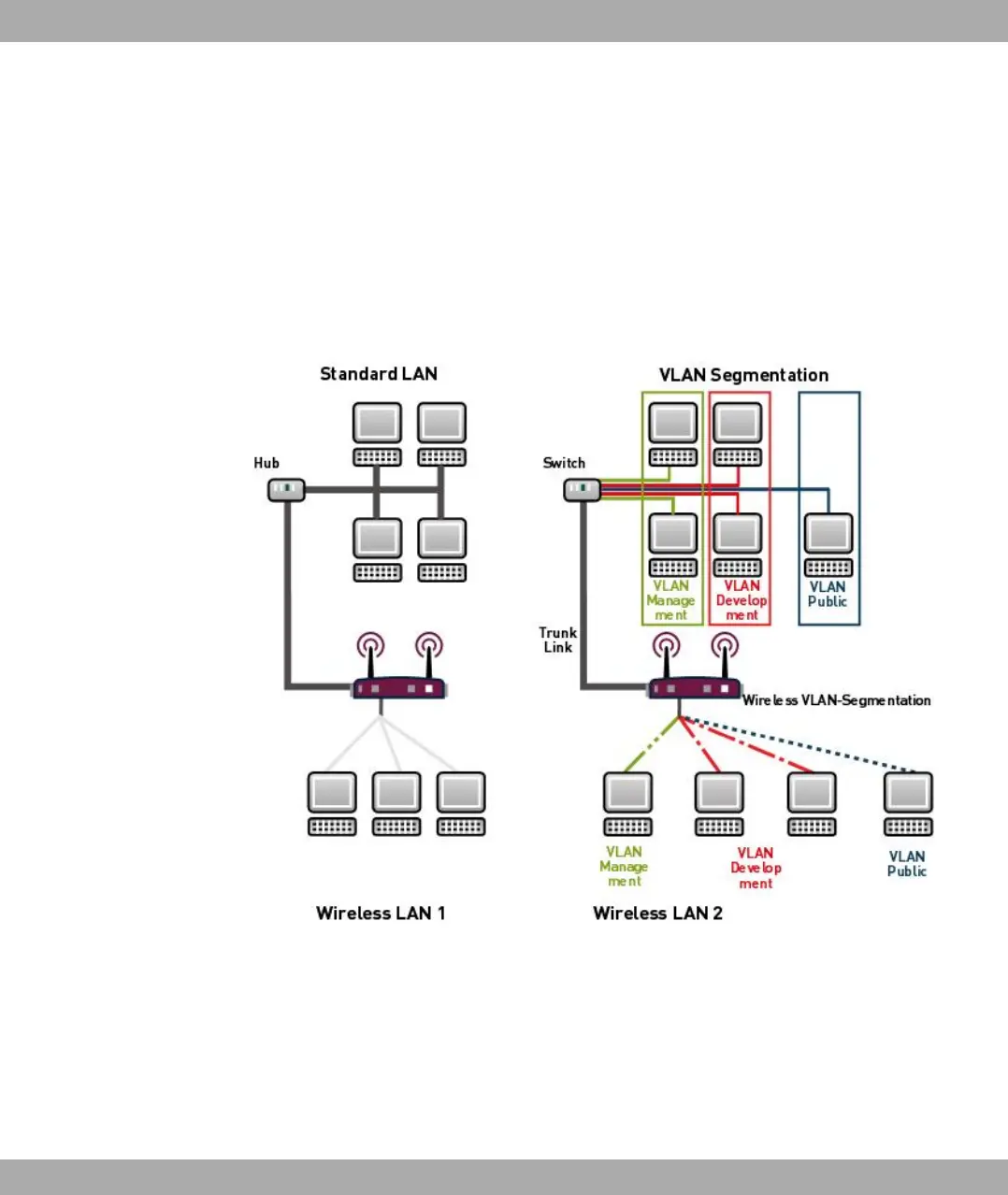

Fig. 57: VLAN segmenting
VLAN for Bridging and VLAN for Routing
In the LAN->VLAN menu, VLANs (virtual LANs) are configured with interfaces that operate
in Bridging mode. Using the VLAN menu, you can make all the settings needed for this and
query their status.
12 LAN Funkwerk Enterprise Communications GmbH
152 bintec Rxxx2/RTxxx2
