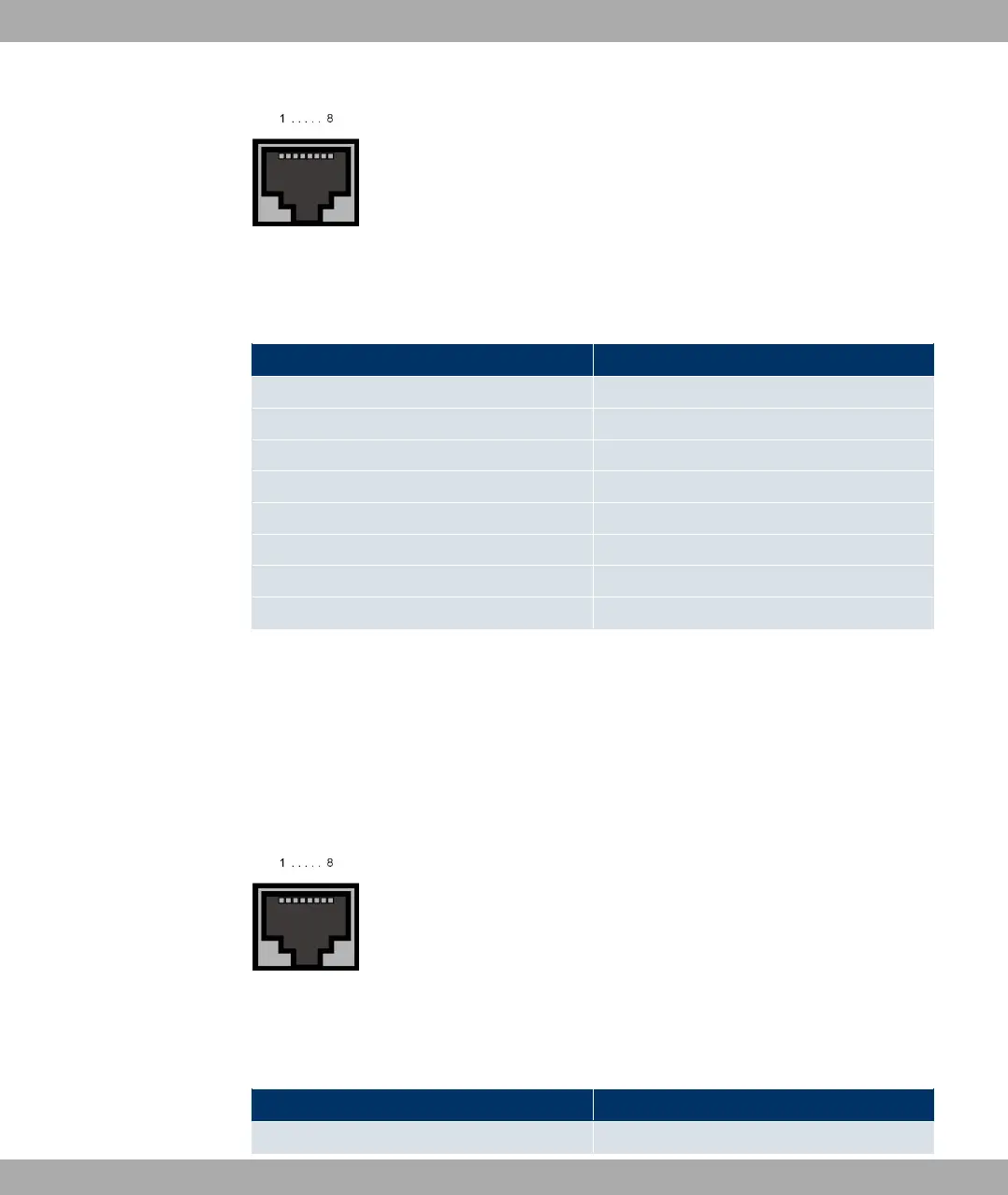

Fig. 15: VDSL2 interface (RJ45 connector) bintec R3502 and bintec RT3502
The pin assignment for the VDSL2 interface (RJ45 connector) is as follows:
RJ45 socket for VDSL connection bintec R3502 and bintec RT3502
Pin Function
1 Not used
2 Not used
3 Not used
4 Line 1a
5 Line 1b
6 Not used
7 Not used
8 Not used
6.5.6 ISDN-PRI interface
Both of the ISDN PRI interfaces on bintec R4402 are connected via an RJ45 plug. The
cable supplied connects the RJ45 plug needed for the device to an RJ45 plug needed for
the PRI connection.
The following pins are used for the connection:
Fig. 16: ISDN PRI interface (RJ45 socket)
The pin assignment for the ISDN PRI interface (RJ45 socket) is as follows:
RJ45 socket for ISDN PRI connection
Pin Function
1 T+
6 Technical data Funkwerk Enterprise Communications GmbH
40 bintec Rxxx2/RTxxx2
