Field Description
• 1-4 1%/ 8/: Differentiated Services Code Point
according to RFC 3260 is used to signal the priority of IP
packets (indicated in decimal format).
• 1-4 @=%/ 8/: Differentiated Services Code
Point according to RFC 3260 is used to signal the priority of
IP packets (indicated in hexadecimal format).
• +?- >) 8/: The TOS value is specified in binary
format, e.g. 00111111.
• +?- 1%/ 8/: The TOS value is specified in decimal
format, e.g. 63.
• +?- @=%/ 8/: The TOS value is specified in
hexadecimal format, e.g. 3F.
COS Filter
(802.1p/Layer 2)
Enter the service class of the IP packets (Class of Service,
CoS).
Possible values are whole numbers between and ..
The default value is $.
14.5.2 Rule Chains
Rules for IP filters are configured in the access list menu. These can be created separately
or incorporated in rule chains.
In the Networking->Access Rules+Rule Chains menu, all created filter rules are listed.

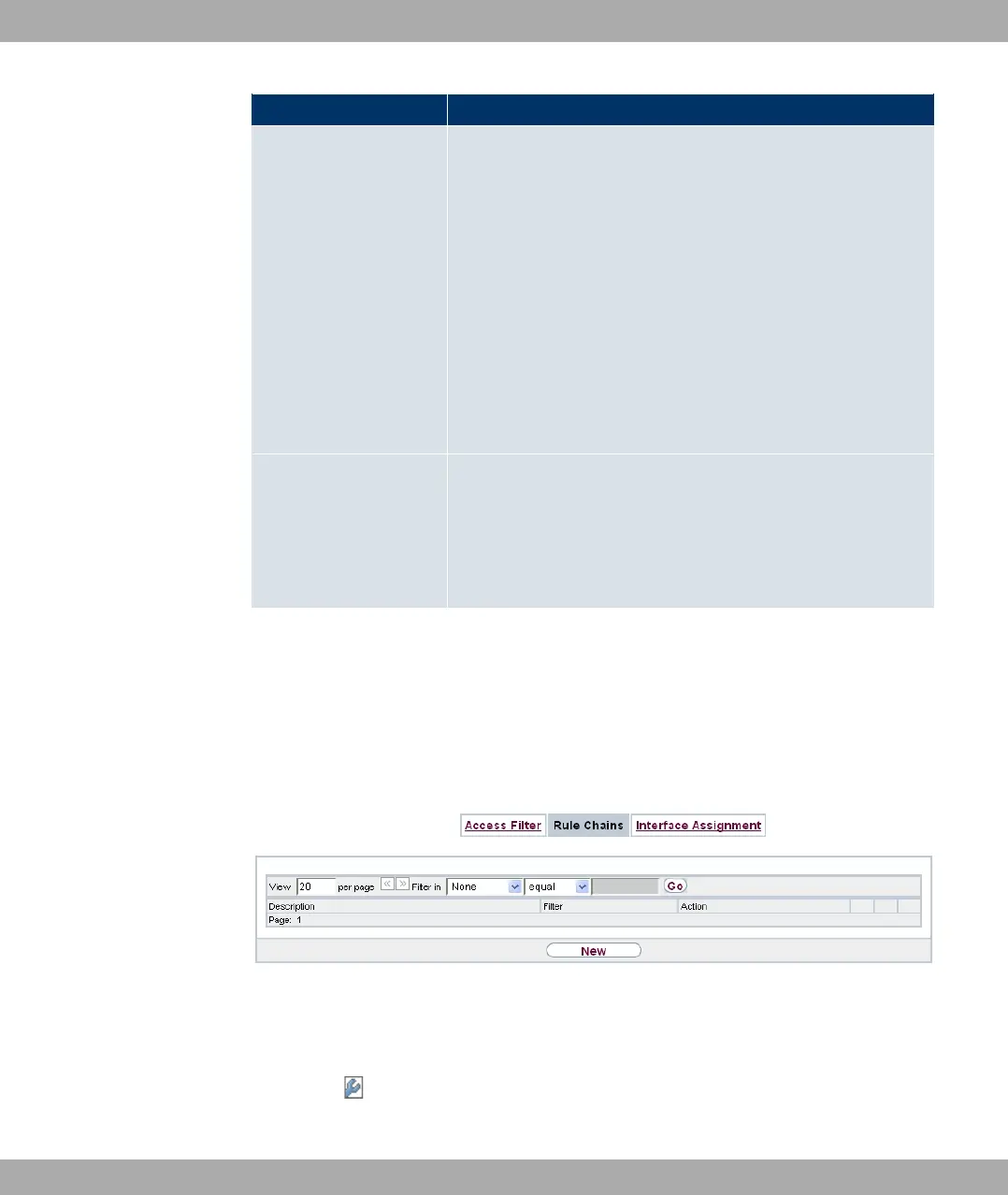

Fig. 85: Networking->Access Rules+Rule Chains
14.5.2.1 Edit or New
Choose the icon to edit existing entries. To configure access lists, select the New but-
ton.
Funkwerk Enterprise Communications GmbH
14 Networking
bintec Rxxx2/RTxxx2 223
