CATEGORY OF UNITS (required by IEC60945):
Unit Category
Terminal Unit Protected from the weather (For indoor installation)
Antenna Unit Exposed to the weather (For installation on the open deck)
Other Units Protected from the weather (For indoor installation)
For 12 VDC power,
DC-DC converter is
required to use PP-510
or PP-520.
AC/DC Power
Supply Unit
PR-240/241

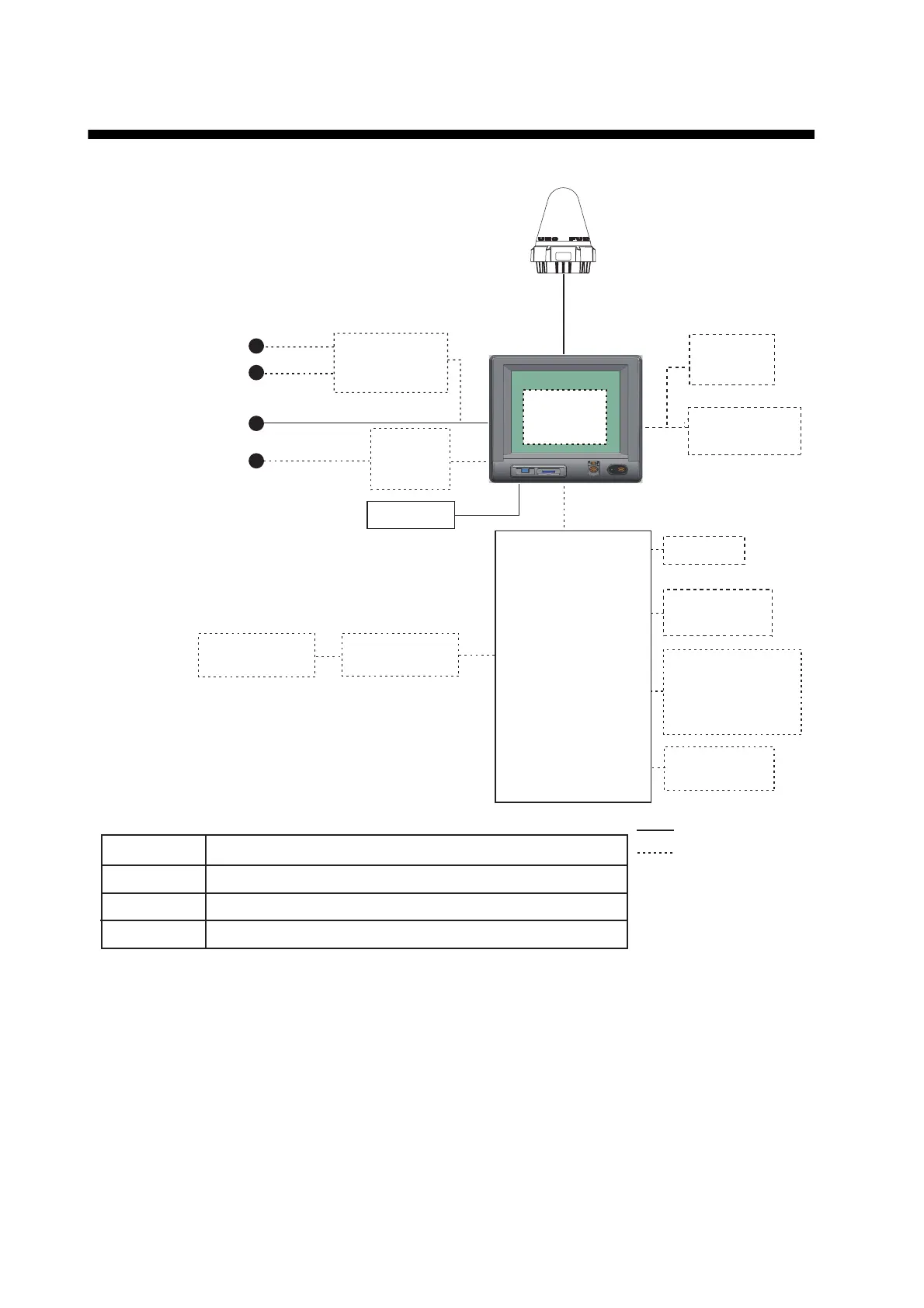

ANTENNA
UNIT
IC-118
100-115/200-230 VAC
1
, 50/60 Hz
24 VDC
12/24 VDC
keyboard
Printer
PP-510/
PP-520**
SSAS Alert Unit
IC-307*
SSAS Alert Unit
IC-307*
Max. 3 units
Shipboard LAN
(Ethernet)
Navigator
Alarm Contact
Signal
JUNCTION BOX
IC-318
Distress Alert/
Received Call Unit
IC-305 or
Alarm Unit IC-350
Alarm Unit
IC-306
: Standard supply
: Optional or
Local supply
* At least two SSAS Alert Units are required.
** Mandatory for EGC operation as required by
IMO RES. A.664(16).
GPS Board
OP16-62
(built-in)
Display viewing distance: 0.7 m
24 VDC
Max. 3 units
Personal
Computer
TERMINAL UNIT
IC-218
TERMINAL UNIT
IC-218
To Next Page
