For Fantum Feedback
™
This rudder test is the different from the one done at installation, in the following re-
spects:
• The adjustment of the rudder speed is not available.
• The result calculated by the rudder test is not reflected to the control of the NAVpilot.
1. Open the diagnostic test options window, select [Rudder Test] then push the
Course control knob.
The message shown below appears.
2. Center the rudder then push the Course control knob.
The message shown below appears.
3. Turn the helm or press the or key hard-over to PORT/STBD then push
the Course control knob.
The message shown below appears.
4. Long press the or key hard-over in the opposite direction from step 3.
While pressing a key, the message shown below appears.
Note: Hold down the key more than three seconds.
When you release the key within three seconds,
the message shown right appears. Push the
Course control knob and go back to step 3.
5. When the rudder reaches the hard limit, release the or key.
When you release the key, the message shown below appears.

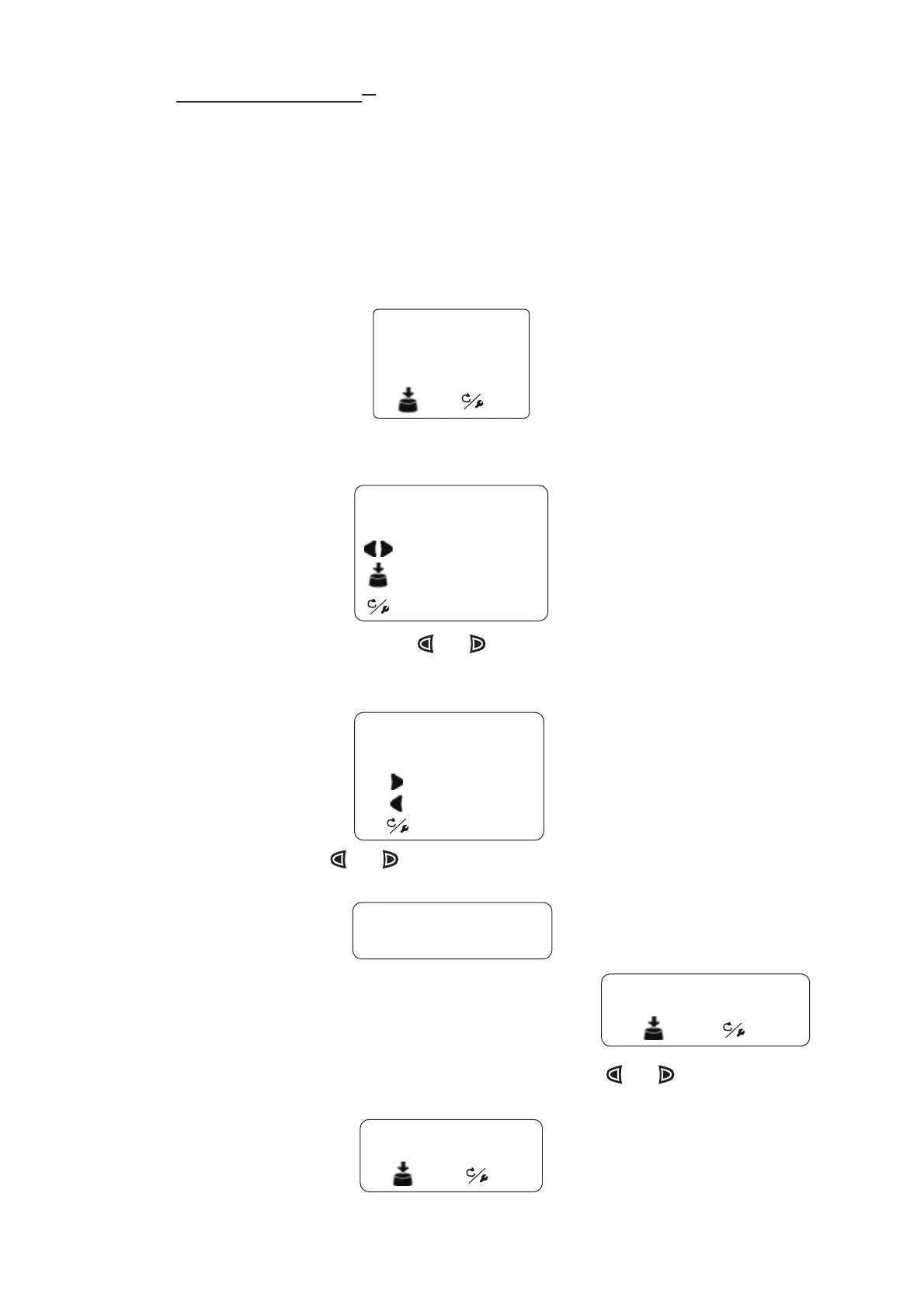

Use wheel to
center rudder before
rudder test.
Are you sure?
Yes
No
Move rudder to PORT or
STBD hard limit by using
wheel or arrow key.
Move Rudder
Rudder at Hard limit
Abort
Push and hold arrow key
pressed to mode rudder
to oppsite hard limit.
Move to STBD
Abort
Move to PORT
Don’t release the key until
the rudder has reached the
hard limit!
Rudder test is uncompleted.
Retry?
NoYes
Has the rudder reached
the hard limit?
NoYes
