FUTABA 4PV - Connection Diagram; Telemetry Function ON;OFF

Temperature Sensor
(SBS-01T)
Temperature Sensor
(SBS-01TE)
RPM Sensor
(SBS-01RM)
Brushless moter
RPM Sensor
(SBS-01RB)
Voltage Sensor
(SBS-01V)
Info
Info
Info
Info
Signal
Info
Temperature
Sensor
RPM Sensor
Voltage Sensor
Battery voltage is displayed
at the transmitter.
Power battery voltage is
displayed at the transmitter.
voltage
T-FHSS Receiver
Transmitter
Switch
Connect to S.BUS2 Connector
HUB
HUB

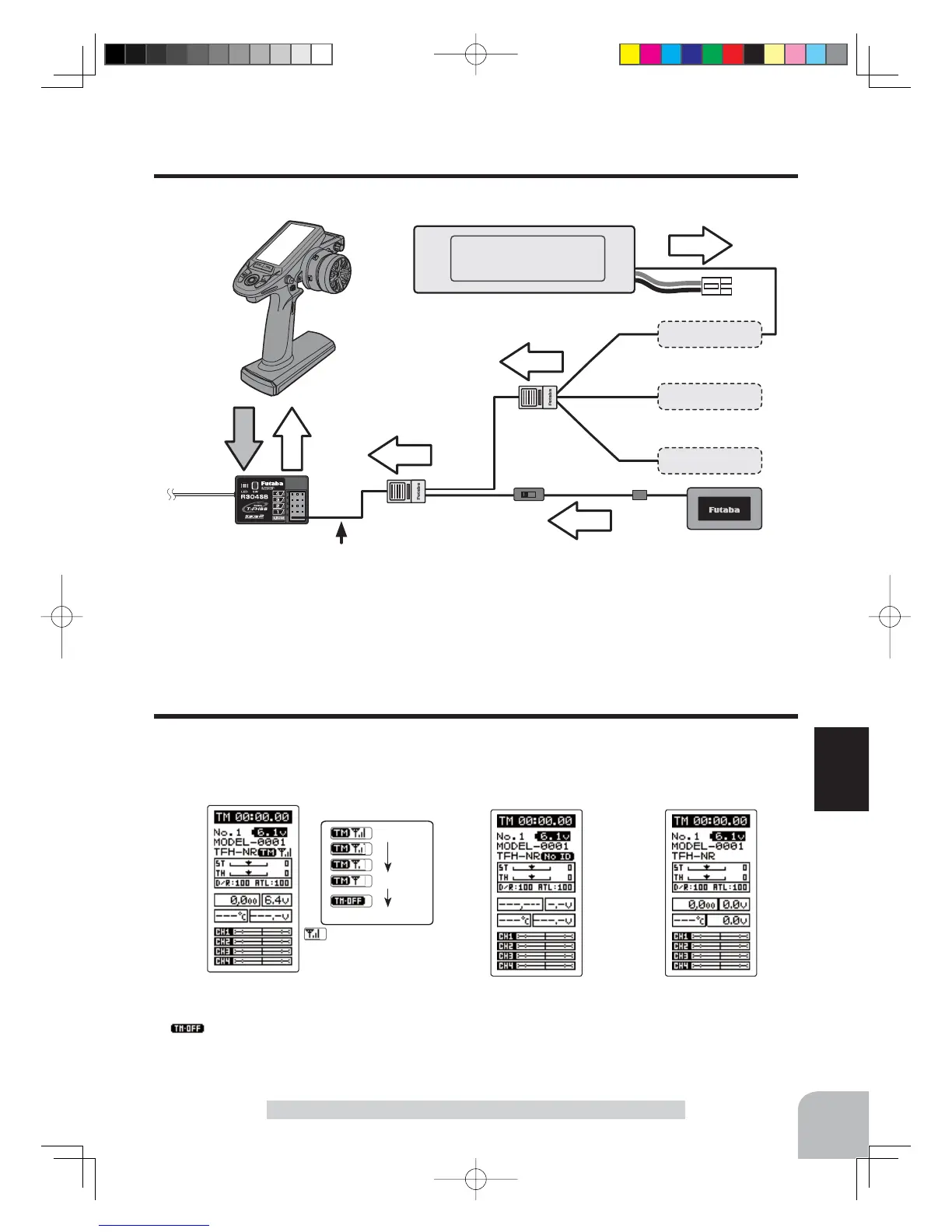

Connection diagram
115
Function
Telemetry function :OFF- Telemetry function :ON
- Receiver ID before setting or ID mis-
match.
- When the receiver ID is set, before
ID check in the receiver power OFF
stat.
- Telemetry function :ON
- Receiver ID setting complete.
- Data receiving sensitivity display.
-
shows that data cannot be received be-
cause it is outside the data receiving range or
because of the effects of an obstruction or the
receiver power is OFF after receiver ID check.
Receiver -> Transmitter:
The reception strength is shown.
The reception strength
No signal reception
High
Low
Telemetry "TELEMETRY"
Telemetry Function ON/OFF
The telemetry data can be viewed at the HOME screen and telemetry ON/OFF screen. The
telemetry function can also be turned on and off at the telemetry ON/OFF screen. The te-
lemetry ON/OFF and communication status can be checked at the HOME screen.
