Initial Set-Up
Before setting the Transmitter functions, check and set these items next.
(Display when power switch turned on)
When the power switch is turned on, the currently selected model number is displayed.
Check if this number is the model number you want to set-up. To change the model number,
use the Model Select function (page 46).
Initial Set-Up
Preparations (Transmitter)

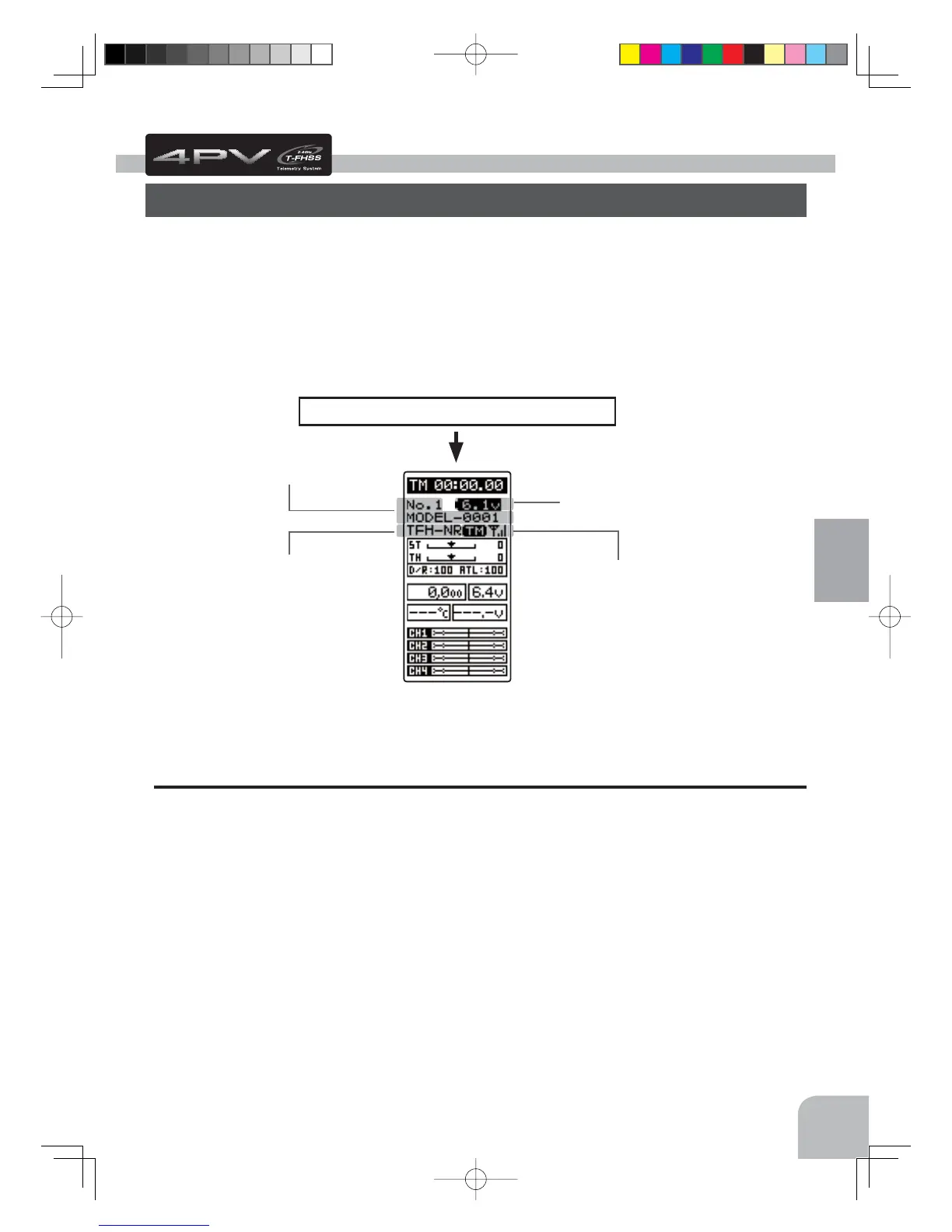

(HOME screen)
Turn on the transmitter power.
The model number is displayed.
The telemetry ON/OFF and communication
status checked.
Receiver type check
Voltage check
Receiver Type Check (RX MODE)
This mode sets the RX type of the transmitter to match the receiver and servos used.
The T4PV transmitter uses the telemetry type T-FHSS (
"
TFH
"
) system.
It can also use the conventional S-FHSS (
"
SFH
"
) system. Because the R304SB receiver sup-
plied with the T4PV uses the telemetry type T-FHSS (
"
TFH
"
) system, its RX type must be
set to the T-FHSS high speed mode (
"
TFH-HI
"
) or the T-FHSS normal mode (
"
TFH-NR
"
).
Never use analog servos when the RX type was set to the T-FHSS (
"
TFH
"
) 2.4GHz system
high speed mode
"
TFH-HI
"
or the S-FHSS (
"
SFH
"
) high speed mode
"
SFH-HI
"
. The servos
may be damaged. For example, if analog servos are used with a telemetry type T-FHSS re-
ceiver (R304SB, etc.), the RX type must be set to
"
TFH-NR
"
, and if analog servos are used
with an S-FHSS receiver (R2104GF, R204FG-E, etc.), the RX type must be set to S-FHSS
(
"
SFH-NR
"
) system normal mode system. When using digital servos (including BLS Series
brushless servos), any RX type can be used.
