Select
"MC LINK"
Setup item
READ :ESC’s data read
WRITE :Writing the data to ESC
RESET :Initialization
97
Function
(Preparation)
-Connect the T4PV and ESC in accordance with the connec-
tion diagram, and connect the battery to ESC.
1

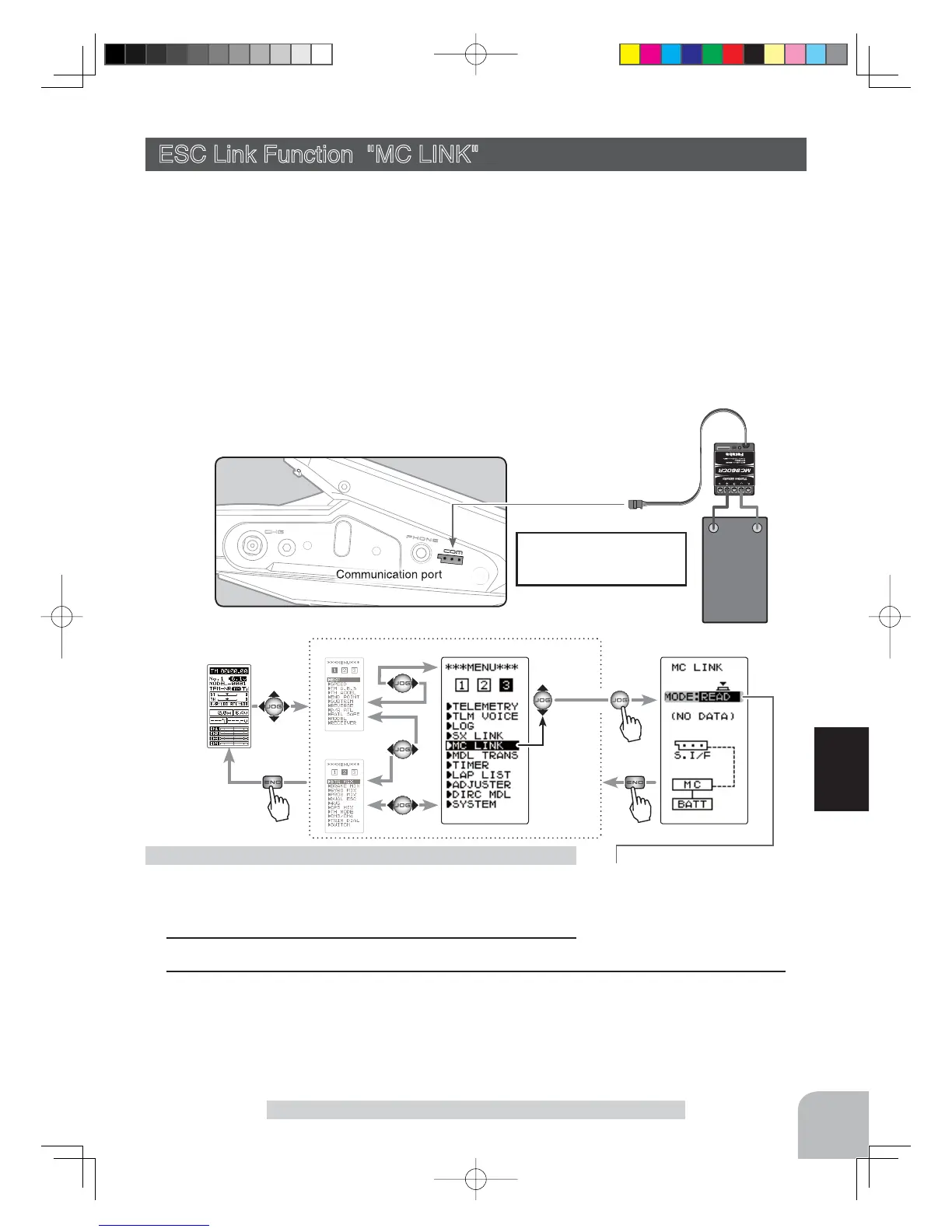

Display the MC LINK function screen in the above manner.
Using the ESC Link function
ESC Link Function "MC LINK"
This is a special function which lets you set the contents of the Link software which
performs Futaba electronic motor speed controller (ESC), MC960CR, MC940CR, MC-
950CR, MC851C, MC602C, MC402CR, etc. variable frequency and other data changes
at the T4PV transmitter. However, some data changes require a PC and Link software.
This function is used by connecting the ESC directly to the transmitter. The T4PV
power switch is used at the display side. Use the various optional servo extension cords
according to the distance between the transmitter and ESC. The last data read from
ESC to T4PV or the last data written from T4PV to ESC is saved to the T4PV. Since the
data for each model memory can be saved, the data of up to 40 models can be saved.
-When the T4PV battery voltage drops, the display switches to low battery display. Therefore, use this function when there is am-
ple battery capacity remaining.
-Also connect the battery at the ESC side.
-
Note:
Do not read to the T4PV an MC940/960CR whose speed was set to over 99990rpm by
Link software side Boost Angle rpm setting.
ESC Link Function "MC LINK"
2
(ESC read)
Execute this function to read the connected ESC type and the data currently set at the ESC.
To save the ESC data to the T4PV, rewrite the read data.
When you want to write the data saved in the T4PV to an ESC of the same type, execute
the following "WRITE"(write) without executing "READ"(read).
Display to
"
MC LINK
"
screen using the following method:
