2.6x10mm
tapping screws
2.6x10mm
tapping screws
Mount the angle spacer and wheel unit with
2.6x15mm tapping screws.
2.6x10mm
tapping screws
2.6x10mm
tapping screws
Mount the APA adapter and
wheel unit with 2.6x19mm
tapping screws.
2.6x10mm
tapping screws
2.6x15mm
tapping screws
Angle spacer
26
Before Using
7

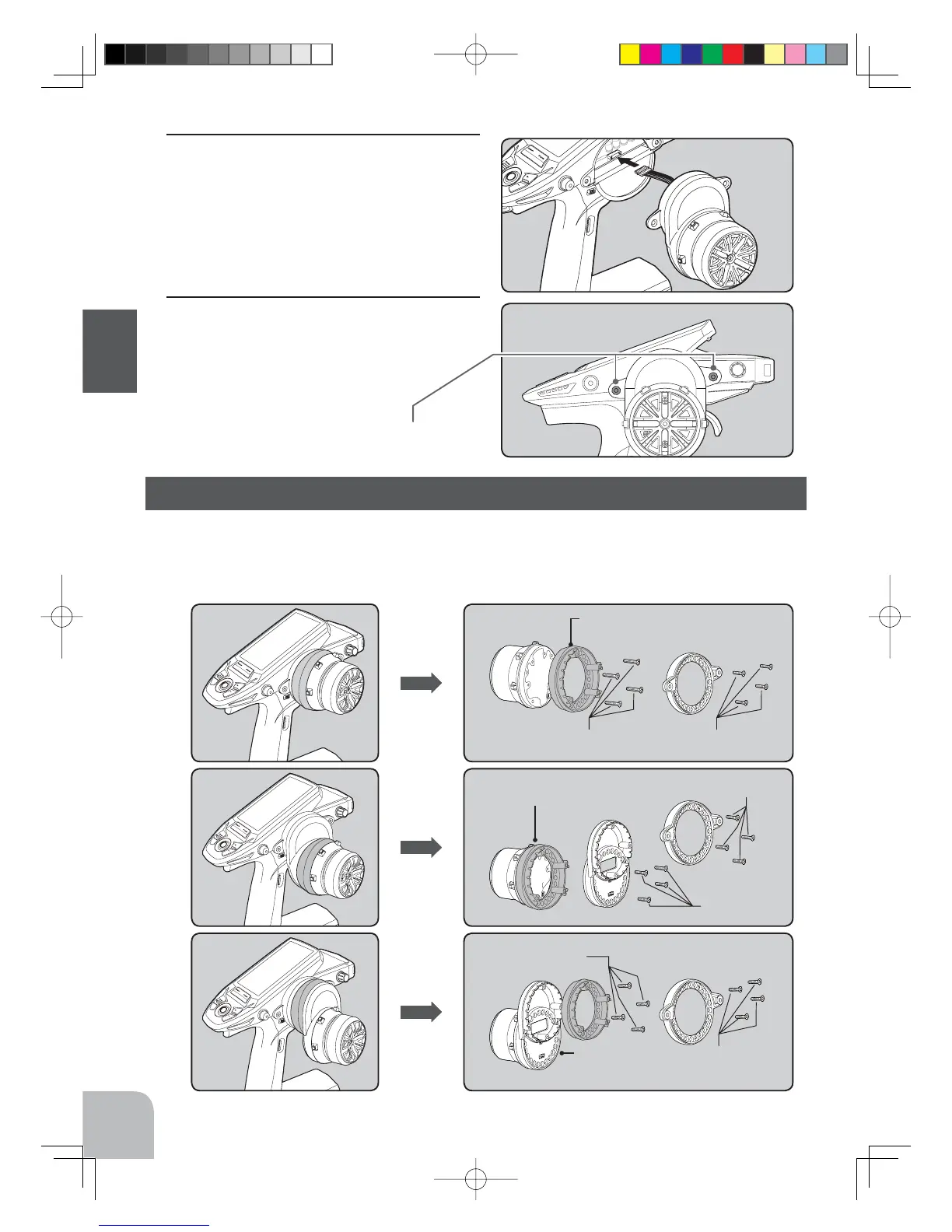

Install the assembled steering wheel unit to the
transmitter body.
-Install slowly so that the wiring is not pinched.
8
Install the assembled steering wheel unit
and APA to the transmitter using the screw
(3.0x12mm cap screw) supplied.
(Using a 2.5 mm hex wrench.)
Steering wheel unit
mounting screws
The wheel mounting angle can be changed by using the optional angle spacer.
Three 2.6x10mm tapping screws are supplied with the angle spacer.
When using and not using the APA, refer to the following installation.
Obtain a Phillips screwdriver. Be careful of the length of the screws used.
The wheel is assembled by passing the screws through each part.
Using the optional angle spacer
