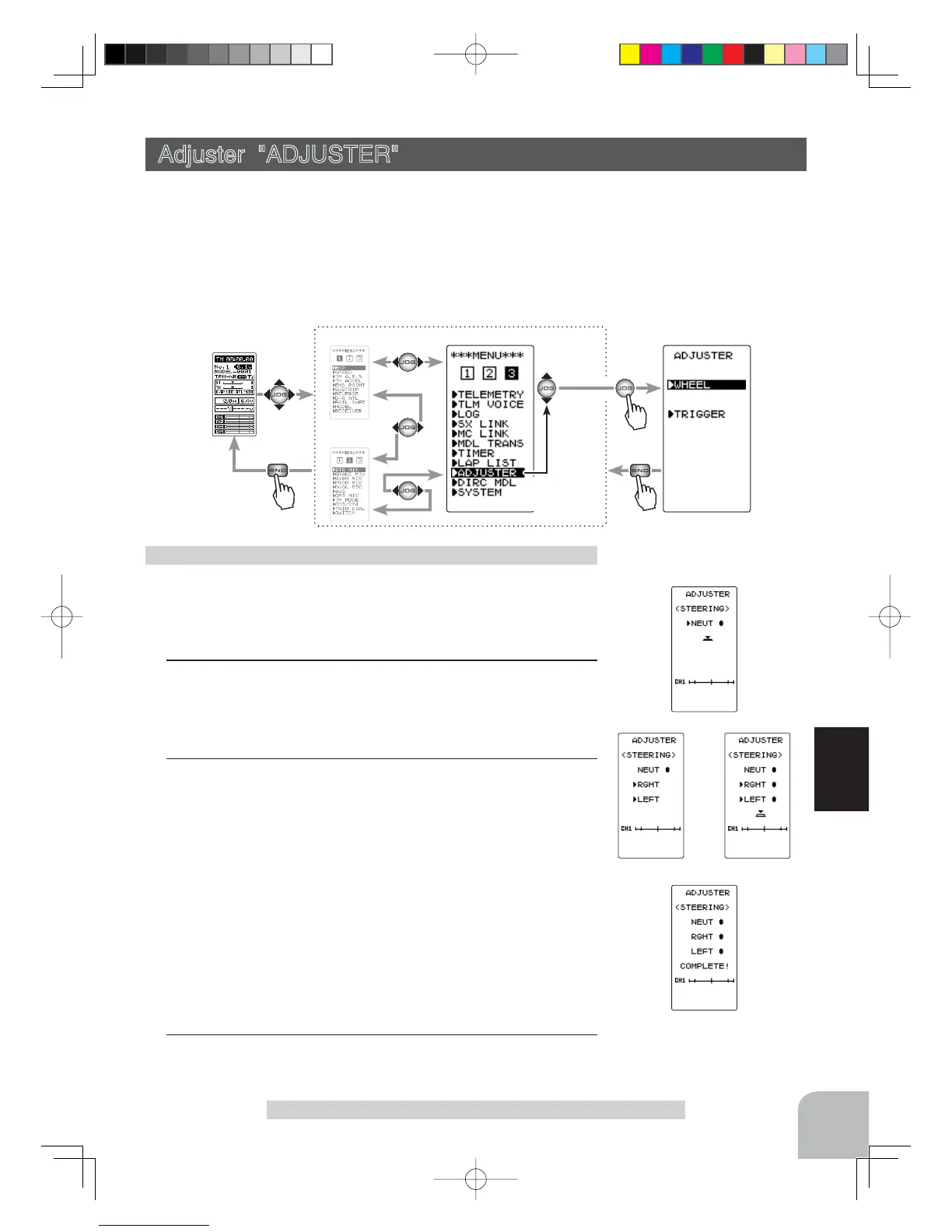

Adjuster "ADJUSTER"
(Preparation)
On the ADJUSTER screen, select the setting item "WHEEL"
by moving the (JOG) button up or down, and press the (JOG)
button.
1
(Steering neutral adjustment)
In the neutral setup screen (fi g-1) state, lightly pull the steering
wheel and then press the (JOG) button without touching the
wheel.
2
(Steering throw adjustment)
In the throw setup screen state (fi g-2), lightly turn the wheel
fully to the left or right and when button mark (fig-3) is dis-
played, press the (JOG) button.
Internal check is performed automatically. When each adjust-
ment point is within a fi xed range, correction is performed and
"COMPLETE" (fi g-4) is displayed.
If an adjustment point is not within a fi xed range, correction is
not performed and the correction data is not updated.
When button mark is not displayed even though correction was
performed again, please contact a Futaba Radio Control Cus-
tomer Center.
3
When fi nished with setting, return to the ADJUSTER screen by
pressing the (END) button.
Steering adjustment
Adjuster "ADJUSTER"
Steering wheel and throttle trigger neutral position and servo operating angle correction can
be applied. This is used when a mechanical offset has occurred for some reason.
*
However, when correction is made, the set value of all the setting functions must be
rechecked.
Display the
"
ADJUSTER
"
screen using the following method:.
