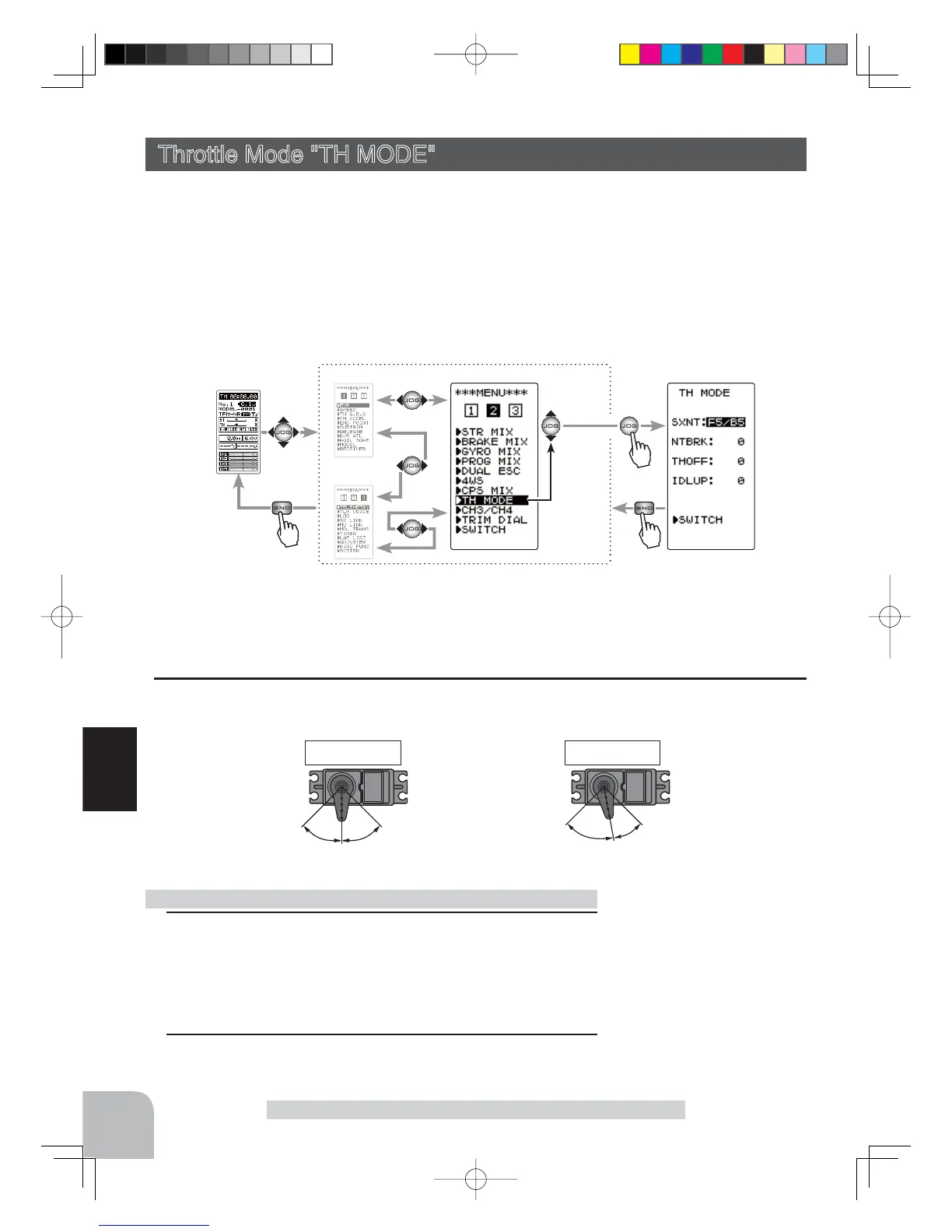

FUTABA 4PV - Throttle Mode TH MODE; Throttle Servo Neutral Position SXNT

5:5
7:3
F5/B5 F7/B3
Forward side Brake side Forward side Brake side
Select
"
TH MODE "
(HOME screen)
(MENU 1)
(MENU 3)
(TH MODE screen)(MENU 2)
Pres
s
Pres
s
Pres
s
88
Function
Throttle Mode "TH MODE"
This menu has the following 4 functions:
- Servo neutral mode, which sets the throttle neutral ratio to 7:3 or 5:5.
- Idle up, which raises the idling speed when starting the engine to improve engine starting per-
formance of a gasoline car (boat).
 1HXWUDOEUDNHZKLFKDSSOLHVWKHEUDNHVDWWKHQHXWUDOSRVLWLRQRIWKHWKURWWOHWULJJHU
- Throttle off (engine cut), which stops the engine of a boat, etc. by operating the throttle servo to
the low side regardless of the position of the throttle trigger.
Throttle servo neutral position "SXNT"
7KLVIXQFWLRQDOORZVVHOHFWLRQRIWKHIRUZDUGVLGHDQGEUDNHUHYHUVHVLGHRSHUDWLRQUDWLR
from 7:3 or 5:5 by changing the neutral position of the throttle servo.
Throttle Mode "TH MODE"
(Throttle system)
1
(Mode selection)
Select the setting item "SXNT" by moving the (JOG) button up
or down. Select "F5/B5" or "F7/B3" by (+) or (-) button.
"
F5/B5
"
)RUZDUG%DFN
"
F7/B3
"
 )RUZDUG%DFN
2
When finished with setting, return to the MENU screen by
pressing the (END) button.
Selecting the throttle servo neutral position
Mode selection (SXNT)
F5/B5, F7/B3
Display
"
TH MODE
"
screen using the following method:
Select button
- Select with the (+) or (-) but-
tons.
Setup items
SXNT
：
Throttle servo neutral position
IDLUP
：
Idle-Up rate
NTBRK
：
Neutral brake rate
THOFF
：
Throttle off (engine cut) position
