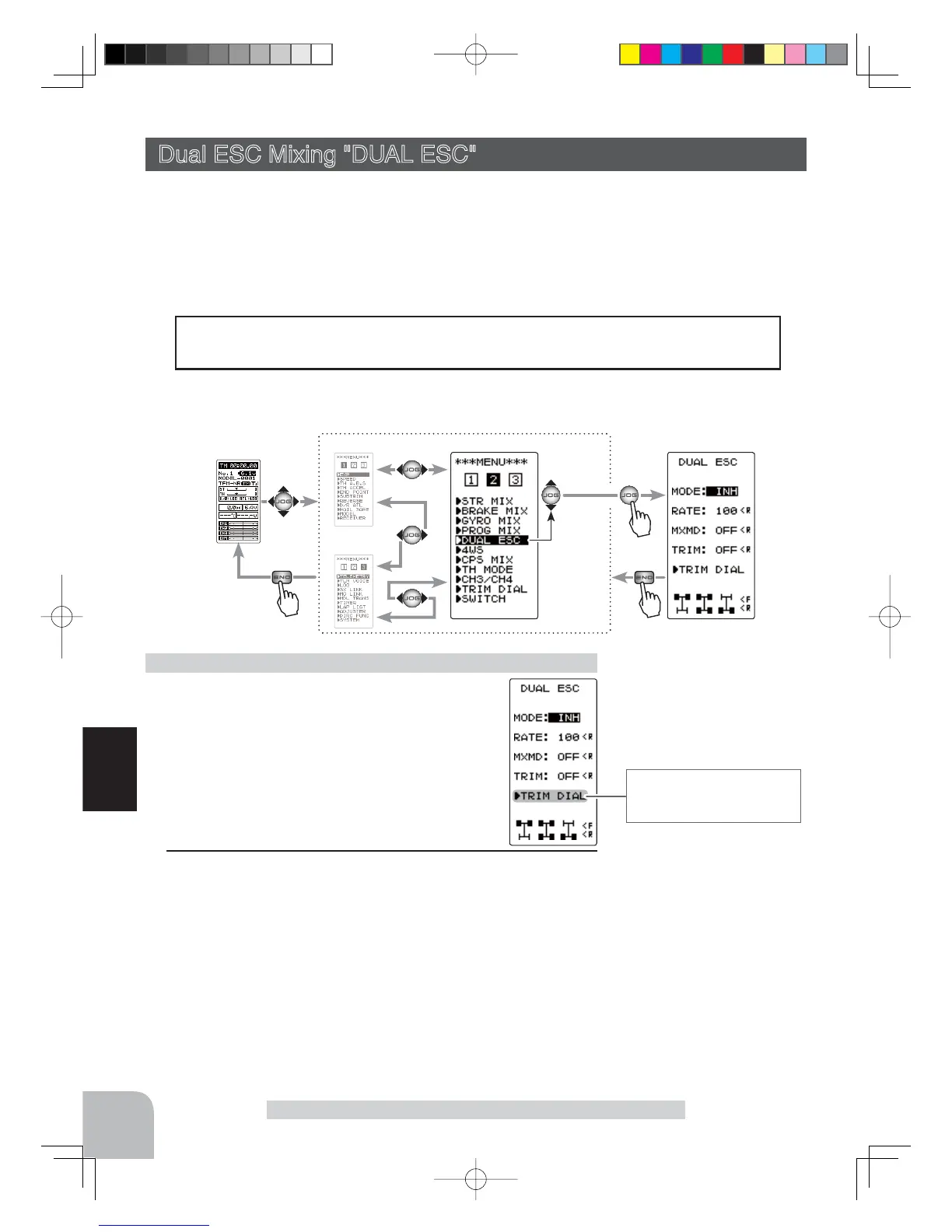

FUTABA 4PV - Dual ESC Mixing DUAL ESC

The function select trim dial
screen (p.70) can be dis-
played from this screen.
Function TRIM DIAL
ESC-MD
(HOME screen)
(MENU 1)
(MENU 3)
(DUAL ESC screen)(MENU 2)
Pres
s
Pres
s
Pres
s
Select
" DUAL ESC "
82
Function
Dual ESC Mixing "DUAL ESC"
This function is mixing used with crawlers and other 4WD type vehicles and uses the 2nd
CH to control the front motor controller and the 4th CH to control the rear motor controller.
Front drive only, rear drive only, or both front and rear drive can be selected using any pro-
grammed DT (digital trim) button.
Dual ESC Mixing "DUAL ESC"
(Throttle system)
(Preparation)
- This function is used to switch between front
drive/4WD/rear drive using one of the trims (dial).
Set the desired trims (dial) for this function us-
ing the TRIM DIAL screen (p.70).
- DT1 through DT6 or DL1.
1
(Dual ESC setting)
Select the setting item "MODE" by moving the (JOG) button up
or down. Set the function by pressing the (+) or (-) button.
"
INH
"
: Function OFF.
"
ACT
"
: Function ON.
- When
"
(STR MIX ACT
→
INH)
"
is displayed, the DUAL ESC cannot be used if the
STR MIX function is not set to
"
INH
"
.
- When
"
(CPS MIX ACT
→
INH)
"
is displayed, the DUAL ESC cannot be used if the
CPS function is not set to
"
INH
"
.
- When
"
(BRK4 MIX ACT
→
INH)
"
is displayed, the DUAL ESC cannot be used if
the BRAKE MIX (CH3) function is not set to
"
INH
"
.
Dual ESC mixing adjustment
Function ON/OFF (MODE)
INH, ACT
Display
"
DUAL ESC
"
function screen using the following method:.
:KHQWKHWK&+LVVHWWR$&7E\%UDNH0L[LQJSRUZKHQ6WHHULQJPL[LQJS
and CPS Mixing (p.86) are used, this dual ESC Mixing function cannot be used.
Setting Special Mixes
Setup items
MODE : Function ON/OFF
RATE :
4ch rate (Rear side)
MXMD : Mix mode
TRIM : Trim mode
Select button
- Select with the (+) or (-) but-
tons.
