Setting item selection
(Steering and Throttle direction)
- The direction (STR LFT and STR RGT) linked with the steering wheel is switched.
- The direction (THR FWD and THR BRK) linked with the throttle trigger is switched.
Setting item (channel and direction)
STR LFT :Steering (left side)
STR RGT :Steering (right side)
THR FWD :Throttle (foward side)
THR BRK :Throttle (brake side)
CH3/CH4 UP :3rd or 4th channel (up side)
CH3/CH4 DWN :3rd or 4th channel (down side)
(HOME screen)
100
(HOME screen)
(MENU 2 )
(MENU 3 )
(END POINT screen)(MENU 1 )
Pres
Select
"END POINT"
53
Function

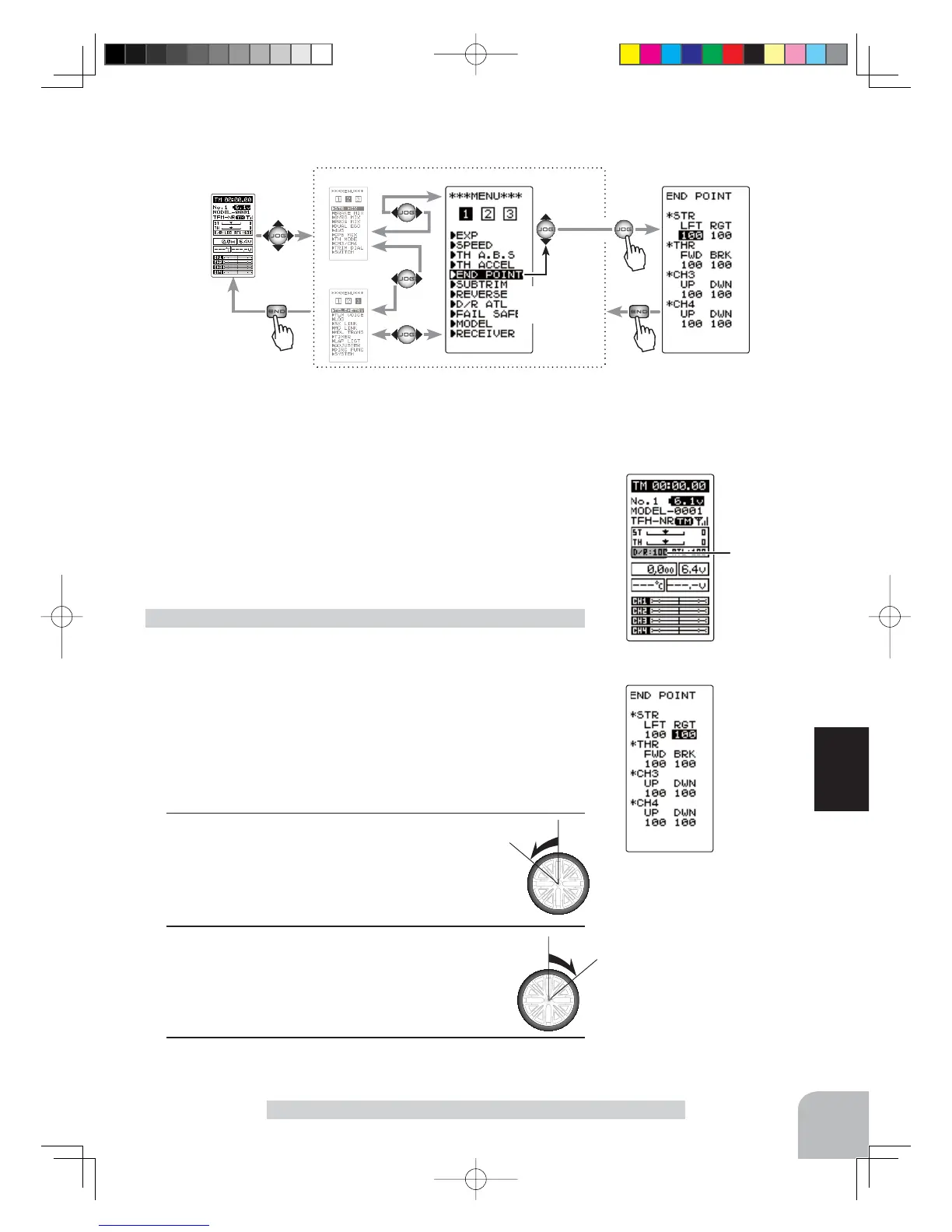

End Point Adjuster "END POINT"
(Preparation)
- Before setup of the steering end point adjustment (END
POINT), set the steering D/R trim (initial setup: DT5) to the
maximum steering angle position 100%.
- Use the (JOG) button to select the setting item "RGT" and
make the following adjustments: and make the following ad-
justments: Or turn the steering wheel to select LFT or RGT.
1
Steering (left side) adjustment
Turn the steering wheel fully to the left and use
the (+) or (-) buttons to adjust the steering an-
gle.
2
Steering (right side) adjustment
Turn the steering wheel fully to the right and use
the (+) or (-) buttons to adjust the steering angle.
Steering (END POINT) adjustment
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) buttons
simultaneously (approx. 1 sec).
Steering EPA
STR LFT :0~120
STR RGT :0~120
Initial value :100
Display to
"
END POINT
"
screen using the following method:
3
When fi nished with setting, return to the MENU screen by
pressing the (END) button.
