FUTABA 4PV - Steering Mixing STR MIX

4CH
or
1CH
1CH
or
4CH
Pres
s
Pres
s
Pres
s
(HOME screen)
(MENU 1)
(MENU 3)
(STR-MIX screen)
(MENU 2)
Select
" STR MIX "
74
Function
Steering Mixing "STR MIX"
(Steering, 4th channel system)

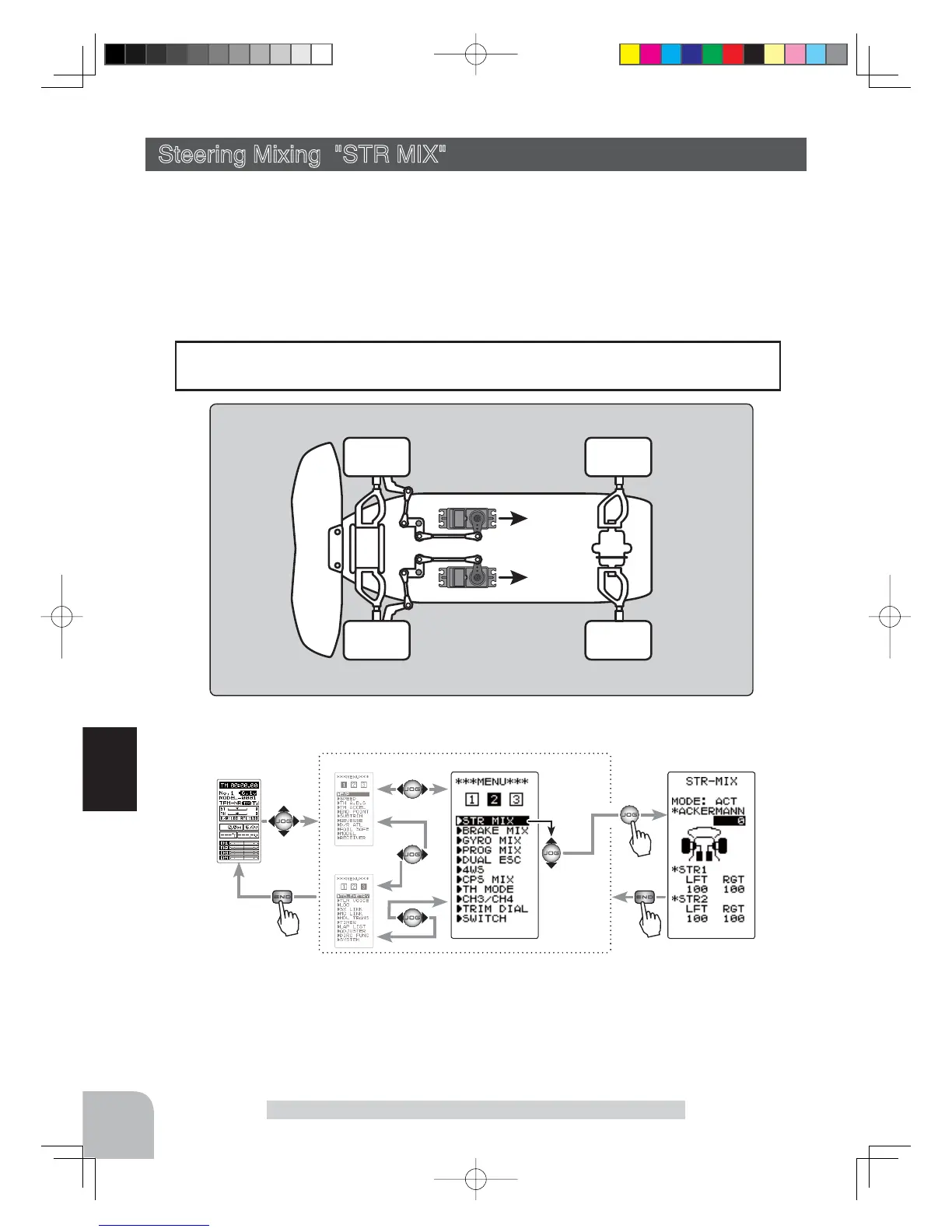

This mixing function uses 2 servos to individually control the left and right steering. Left
and right steering can be set independently so smooth cornering is possible.
The right side steering servo or the left side steering servo connects to receiver CH1 and the
other side connects to receiver CH4. The channel to which the left and right servo connects
LVQRWVSHFL¿HG$IWHUWKHOHIWDQGULJKWVHUYRVDUHDGMXVWHGLQGLYLGXDOO\$FNHUPDQFDQDOVR
EHDGMXVWHGE\$FNHUPDQUDWH
Steering Mixing "STR MIX"
When the 4th CH is set to ACT by BRAKE MIX (p.76), or when DUAL ESC (p.82)
and CPS MIX (p.86) are used, this steering mixing function cannot be used.
Setting Special mixings
Display
"
STR MIX
"
screen using the following method:
Setup items
MODE :Function ON/OFF
STR1 LFT :Steering 1 Left side
STR1 RGT :Steering 1 Right side
STR2 LFT :Steering 2 Left side
STR2 RGT :Steering 2 Right side
