Select
"LOG"
Function ON/OFF (MODE)
INH, ACT
Select button
- Select with the (+) or (-) buttons.
120
Function
Telemetry "TELEMETRY"
Log Setting Start/Stop
The data from a telemetry sensor can be saved to the T4PV as a data log. Since the data is
sequentially updated, when data logging is performed, the old data is erased. Only one set
of data is saved.
The interval at which the data is acquired can be selected from a minimum 0.1 second to a
maximum 60 seconds. Because the maximum count is 200, if 200 counts are made at 0.1
second intervals, 20 seconds worth of data is acquired. If 200 counts are made at 60 second
intervals, 3 hours 20 minutes worth of data is acquired.
Data logging is started and stopped by setting PS2 using the select
switch
function (p.72) to
"
LOGGER
"
and by switch. If the switch is not set, data logging is started by throttle trigger
from the log setting screen.
Data logging can also be started by throttle trigger from this screen and stopped by switch
set by select
switch
function (p.72).
(Preparation)
When using a switch to start and stop data logging, set PS2 to
"LOGGER" by the function select switch (p.72).
1
(Log function ON/OFF)
Move the cursor to the "MODE" setting item by
moving the (JOG) button, and turn on the log
function by setting "MODE" to "ACT" by press-
ing the (+) button or (-) button.
If "MODE" is not set to "ACT", the log function
will not be performed even if the switch, etc. is
operated.
"
INH
"
: Function OFF.
"
ACT
"
: Function ON.

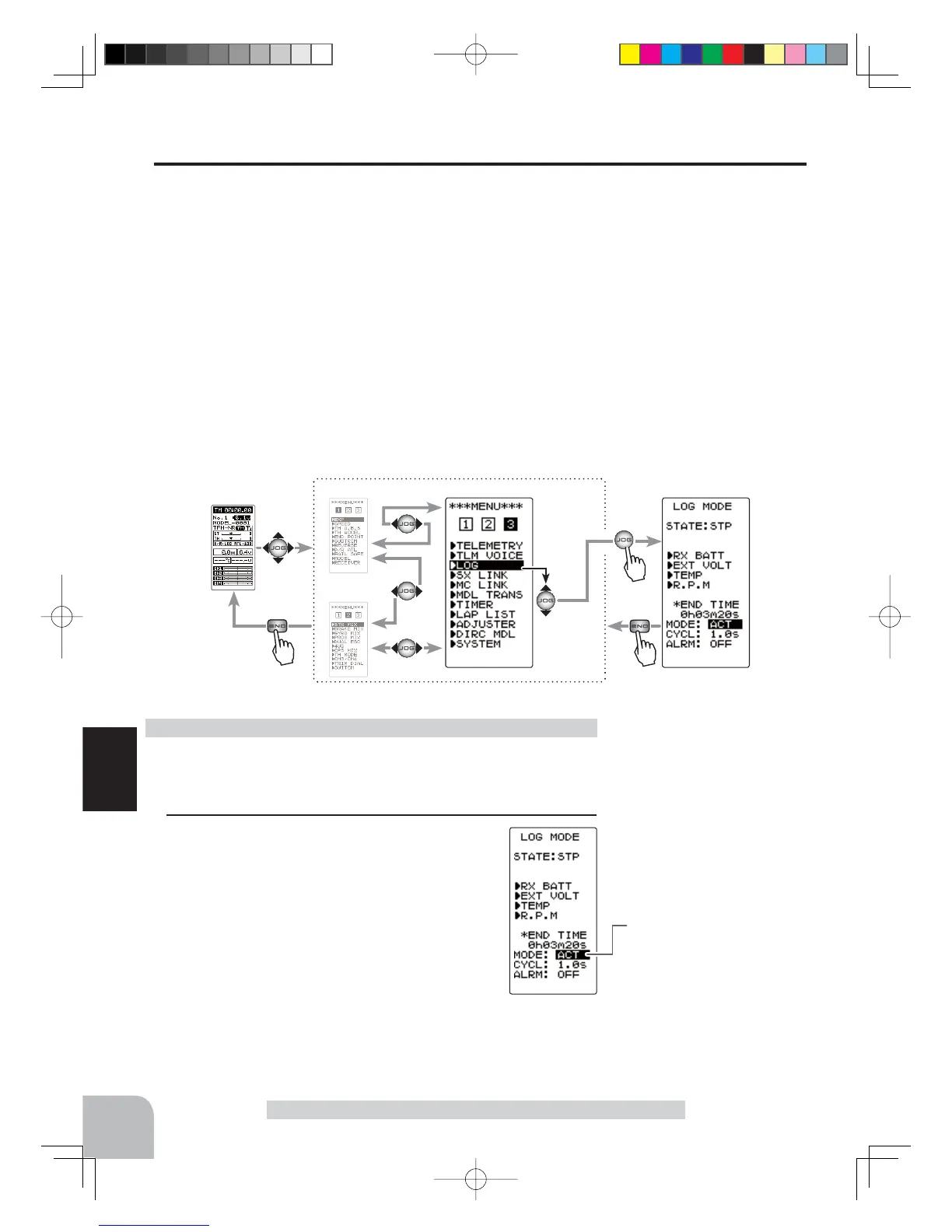

Log setting method
Display
"
LOG MODE
"
screen by the following method:
