FUTABA 4PV - Changing Wheel Position (Optional Parts); Installing the Accessory APA Steering Wheel Offset Adapter

24
Before Using

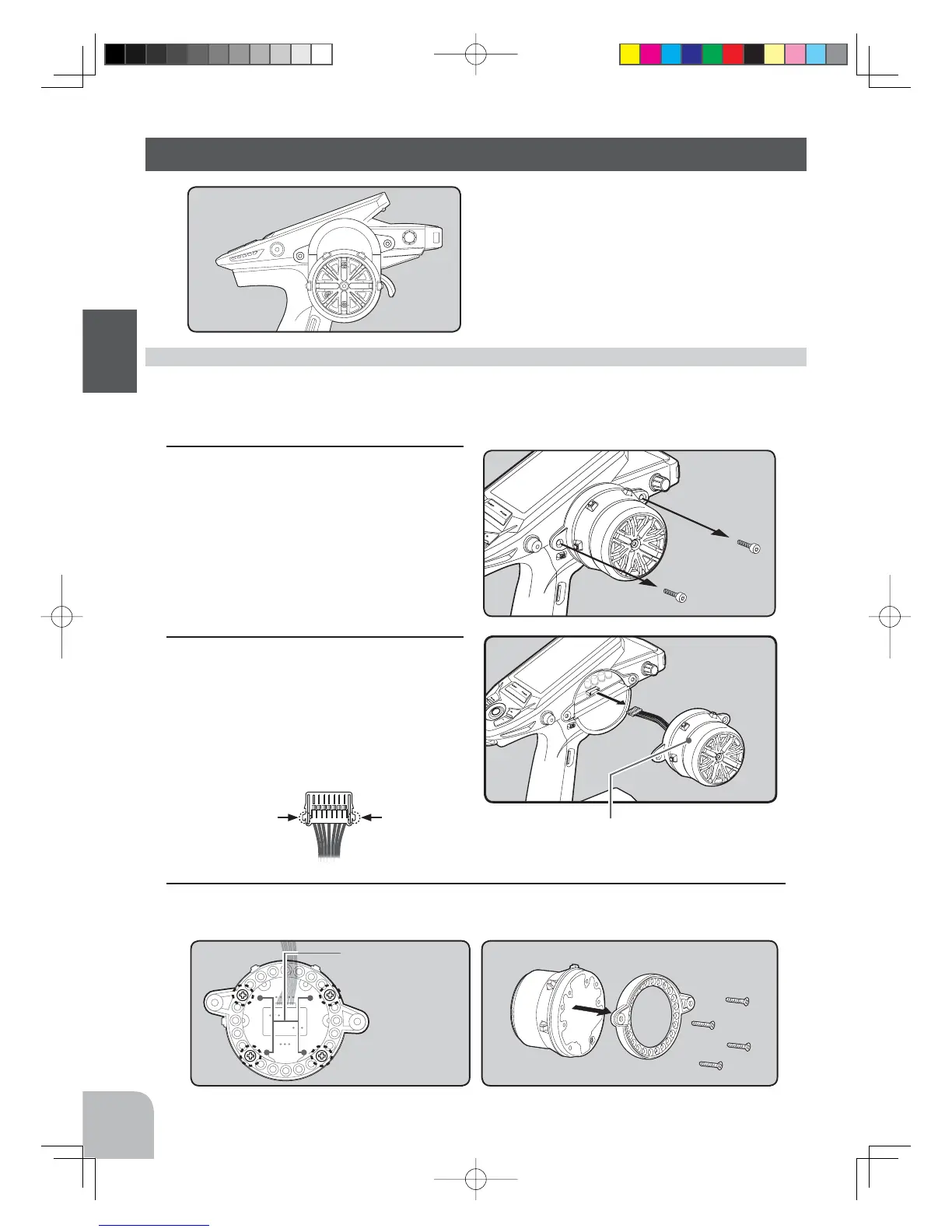

Changing Wheel Position (optional parts)
The wheel position can be offset by using
the optional APA wheel position offset
adapter.
Three 2.6x10mm and 2.6 x 19 mm tapping screws are supplied with the adapter APA.
Obtain 2.5mm hex wrench./ Remove the battery.
7KH OHQJWK RI WKH VFUHZV XVHGDW HDFK SDUW GLIIHUV:KHQ UHDVVHPEOLQJ WKH VWHHULQJZKHHO XQLW DOZD\V XVH WKH VSHFL¿HG
screws.
Installing the accessory APA steering wheel offset adapter
1
Remove the 2 steering wheel unit mounting
screws.
(Using a 2.5 mm hex wrench.)
-Remove the 2 mounting screws completely from the
transmitter body.
2
Gently remove the steering unit, without pull-
ing excessively on the wiring.
-Remove the steering wheel unit slowly so that the inter-
nal wiring is not pulled unreasonably.
Remove the connector from the PC board.
-Remove from the PC board while pressing both sides of
the connector.
3
Using a Phillips screwdriver, remove the 4 screws (2.6x15mm tapping screw) mounting the wheel
unit and base parts.
Steering wheel unit
Unit mounting screws
Wheel unit
Connector
Connector
Press Press
Base parts
