FUTABA 4PV - S.BUS Link Function SX LINK

Battery

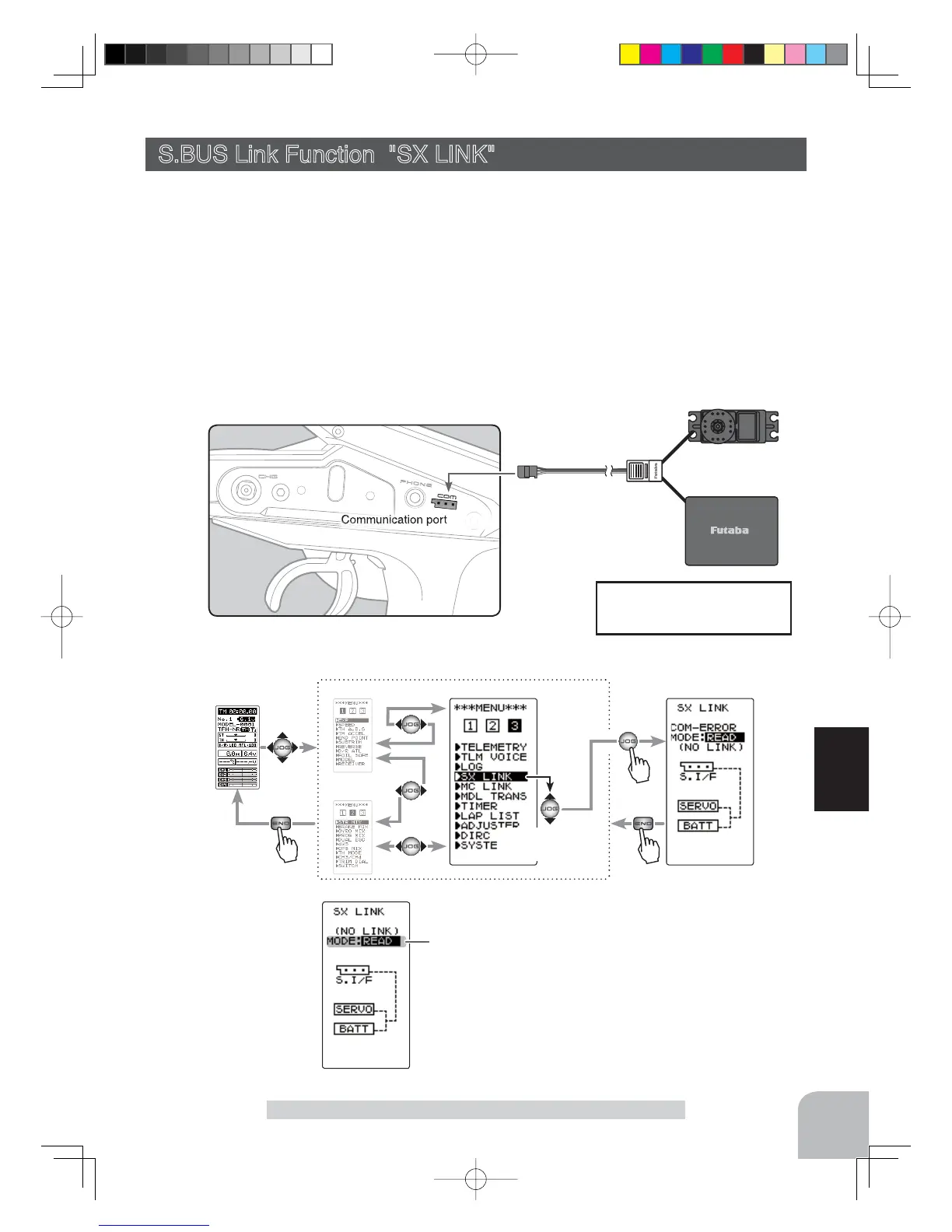

Connect the S.BUS servo and
the batteries to the transmitter
Communication port .
(HOME screen)
(MENU 1 )
(MENU 2 )
(
SX LINK screen)
(MENU 3 )
Pres
s
Pres
s
Pres
s
Select
"SX LINK"
Display to
"
SX LINK
"
screen using the following method:
Setup item
READ :Servo’s data read.
WRITE :Writing the data to servo.
RESET :Initialization
93
Function
S.BUS Link Function "SX LINK"
This is a special function which allows Futaba S.BUS/S.BUS2 servo parameter changes
to be set by the T4PV transmitter.
However, some data changes require a PC and S-Link software.
This function is used by connecting Futaba S.BUS/S.BUS2 servos directly to the trans-
mitter.
Use the various optional servo extension cords according to the distance between the
transmitter and servo.
-When the T4PV battery voltage drops, the display switches to low battery display. Therefore, use this function when there is am-
ple battery capacity remaining.
-Also connect the corresponding battery to the servo side.
