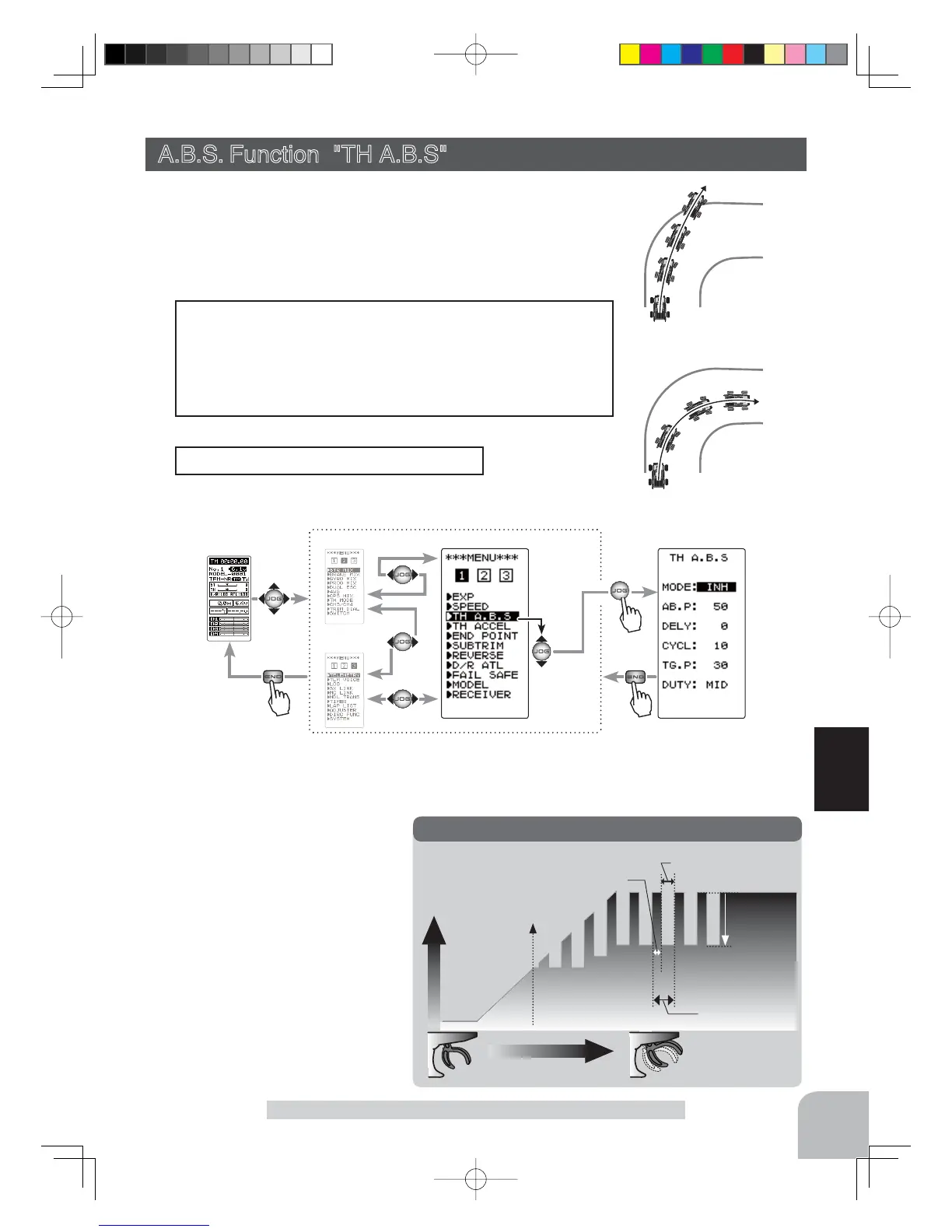

FUTABA 4PV - A.B.S. Function TH A.B.S

With A.B.S.
Without A.B.S.
ABS
Servo travel
Trigger operation
AB.P
(Amount of
brake return)
TG.P (Trigger point)
CYCL (Cycle)
DUTY (duty): X and Y ratio
X: (Brake application time)
Y: (Brake return time)
(HOME screen)
(MENU 2 )
(MENU 3 )
(
TH A.B.S screen)(MENU 1 )
Pres
s
Pres
s
Pres
s
Select
"TH A.B.S"
65
Function
- AB.P : Amount of brake return
Sets the rate at which the servo re-
turns versus trigger operation for
brake release. When set to 0 , the
ABS function is not performed.
When set to 50 , the servo returns
50 (1/2) of the trigger operation
amount and when set to 100 , the
servo returns to the neutral posi-
tion.
A.B.S. Function "TH A.B.S"
- When the brakes are applied, the throttle servo will pulse
intermittently. This will have the same effect as pumping the
brakes in a full size car.
- The brake return amount, delay amount, pulse cycle, and
brake duty can be adjusted.
Operation
A.B.S. Function "TH A.B.S"
(Throttle system)
When the brakes are applied while cornering with a 4 Wheel Drive or
other type of vehicle, understeer may occur. Understeer can be elimi-
nated and corners can be smoothly cleared by using this function.
During ABS operation, the LED blinks.
Operation display
Display
"
TH A.B.S
"
screen using the following method:
Setup items
MODE : Function ON/Off
AB.P : Brake return amount
DELY : Delay amount
CYCL : Cycle speed
TG.P : Trigger point
DUTY : Cycle duty ratio
