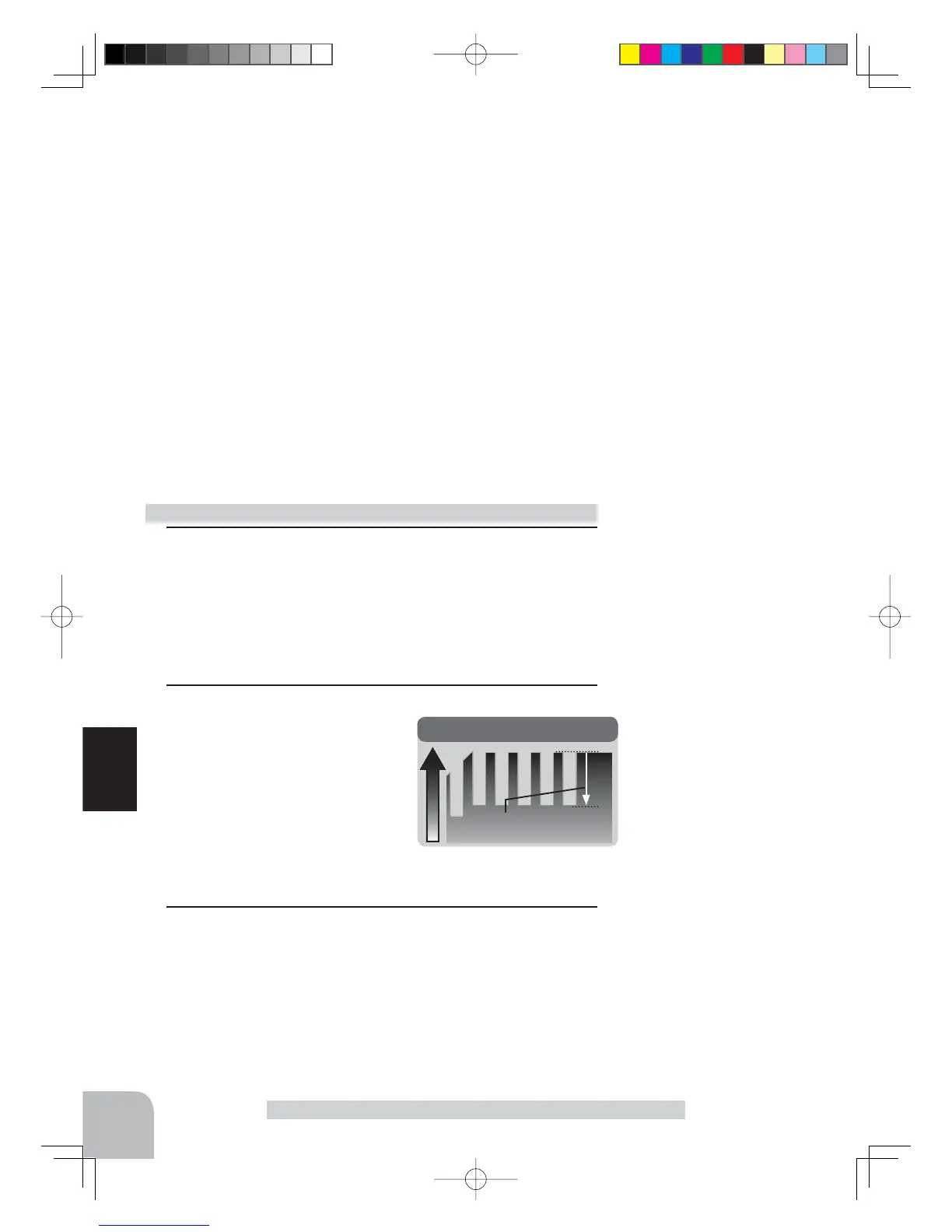

FUTABA 4PV - Page 66

AB.P
(Amount of brake return)
AB.P
Servo travel
66
Function
A.B.S. Function "TH A.B.S"
- DELY : Delay
Sets the delay from brake operation to ABS operation. When set to 0 , the ABS function
is activated without any delay. At 50 , the ABS function is activated after a delay of ap-
proximately 1 second and at 100 , the ABS function is activated after a delay of approxi-
mately 2 seconds.
- CYCL : Cycle speed
Sets the pulse speed (cycle). The smaller the set value, the faster the pulse cycle.
- TG.P : Trigger point
Sets the trigger point at which the ABS function begins to operate at brake operation.
- DUTY : Cycle duty ratio
Sets the proportion of the time the brakes are applied and the time the brakes are released
by pulse operation. The ratio can be set to HIGH, MID or LOW.
- MODE : Function ON/OFF
ABS function ON/OFF setting. When using the ABS function, set to
"
ACT (ON)
"
.
1
(Function ON/OFF)
Select the setting item "MODE" by moving the (JOG) button up
or down. Set the function to the active state by pressing the (+)
or (-) button.
"
INH(OFF)
"
:Function OFF.
"
ACT(ON)
"
:Function ON.
"
ACT(OFF)
"
:Switch OFF when setting switches.
2
(Brake return amount adjustment)
Select the setting item "AB.P" by
moving the (JOG) button up or
down. Use the (+) or (-) button to
adjust the return amount.
"
0
"
:No return.
"
50
"
:Return to the 50 position of the brake operation amount.
"
100
"
:Return to the neutral position.
3
(Delay amount setup)
Select the setting item "DELY" by moving the (JOG) button up
or down. Use the (+) or (-) button to adjust the delay amount.
"
0
"
:A.B.S. function performed without any delay.
"
50
"
:A.B.S function performed after an approximate 1 sec delay.
"
100
"
:A.B.S. function performed after an approximate 2 secs delay.
A.B.S function adjustment
- Brake return amount (AB.P) is
influenced by the "EXP" rate
on the brake side.
Delay amount (DELY)
0 ~ 100
Initial value: 0
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) buttons
simultaneously (approx. 1 sec).
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) buttons
simultaneously (approx. 1 sec).
Brake return amount (AB.P)
0 ~ 50 ~ 100
Initial value: 50
Function ON/OFF (MODE)
INH (OFF), ACT (ON,OFF)
Select button
- Select with the (+) or (-) but-
tons.
