FUTABA 4PV - Select Switch Function SWITCH

Pres
s
Pres
s
Pres
s
(HOME screen)
(MENU 1)
(MENU 3)
(SWITCH screen)
(MENU 2)
Select
" SWITCH"
*Function selection
PS1 ON/OFF direction
PS2 alternate operation
72
Function

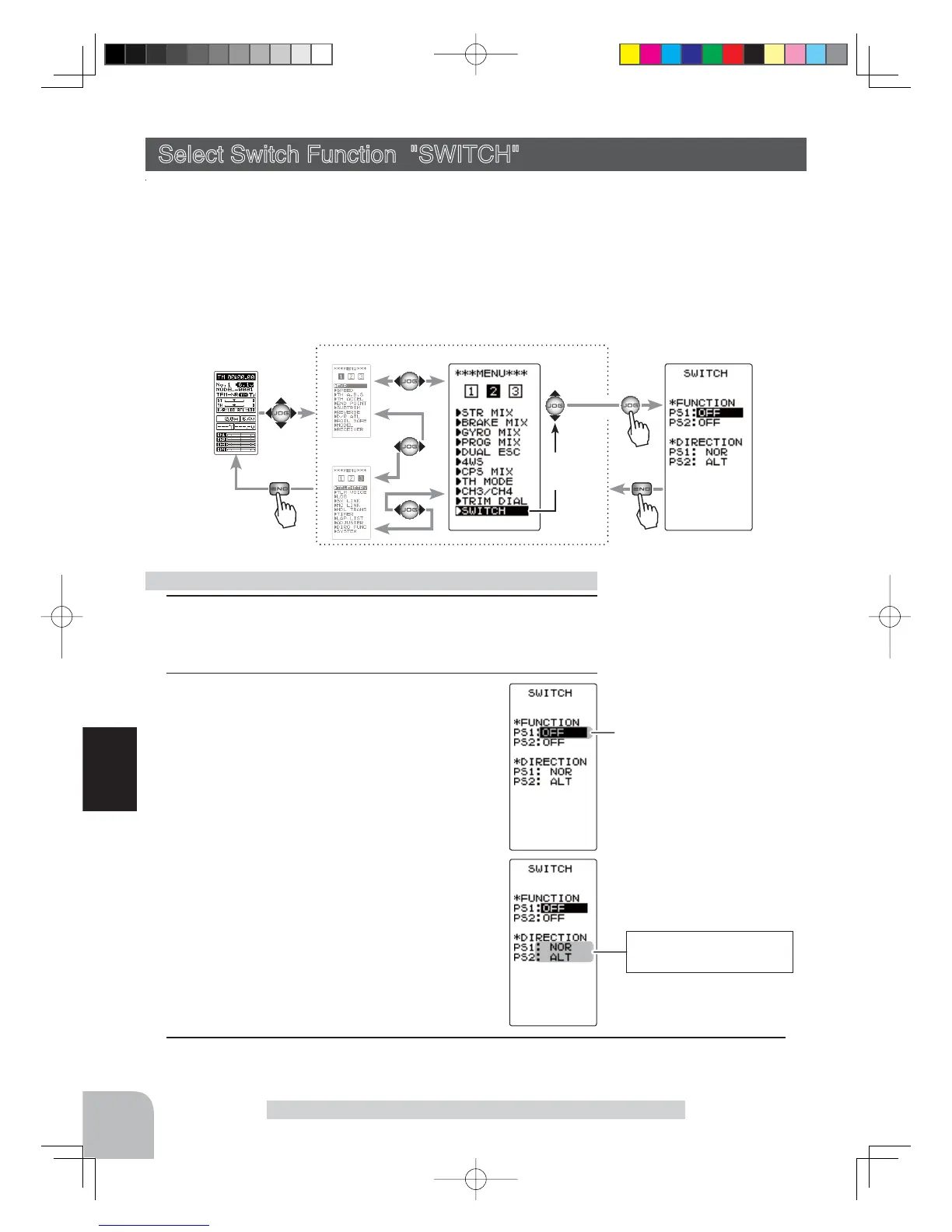

Function Select Switch "SWITCH"
Select Switch Function "SWITCH"
Selection of the function to be performed by the switches (PS1, PS2).
- PS2 alternate operation (operation which switches between ON and OFF each time the switch is
pressed) is possible.
NOR (Normal) -ON only while pressed, OFF when released.
ALT (Alternate) -Switched between ON and OFF each time pressed.
- PS1 ON/OFF direction can be reversed (NOR/REV).
1
(Setting switch selection)
Select the switch you want to set by moving the (JOG) button
up or down.
2
(Function setting)
Select the function with the (+) or (-) button.
- Refer to the list on the next page for the abbreviations of the
functions.
(Changing the PS1 operation direction)
Select "DIRECTION" of "PS1" by moving the
(JOG) button up or down. Select REV or NOR
with the (+) or (-) button.
(Changing the PS2 operation system)
Select "DIRECTION" of "PS2" by moving the
(JOG) button up or down. Select ALT or NOR
with the (+) or (-) button.
Function select switch setting
Display
"
SWITCH
"
screen using the following method:
Select button
- Select with the (+) or (-) but-
tons.
3
When fi nished with setting, return to the MENU screen by pressing the (END) button.
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) buttons
simultaneously (approx. 1 sec).
