Trigger Slide Adjustment
The throttle trigger position can be moved forward and backward.
Adjustment
1
Using a 2.0mm hex wrench, loosen the trigger
slide mounting screw by turning it slightly counter-
clockwise.
Always loosen this screw.
Note:
Adjust so that the bottom
mark does not exceed
the top marking line.

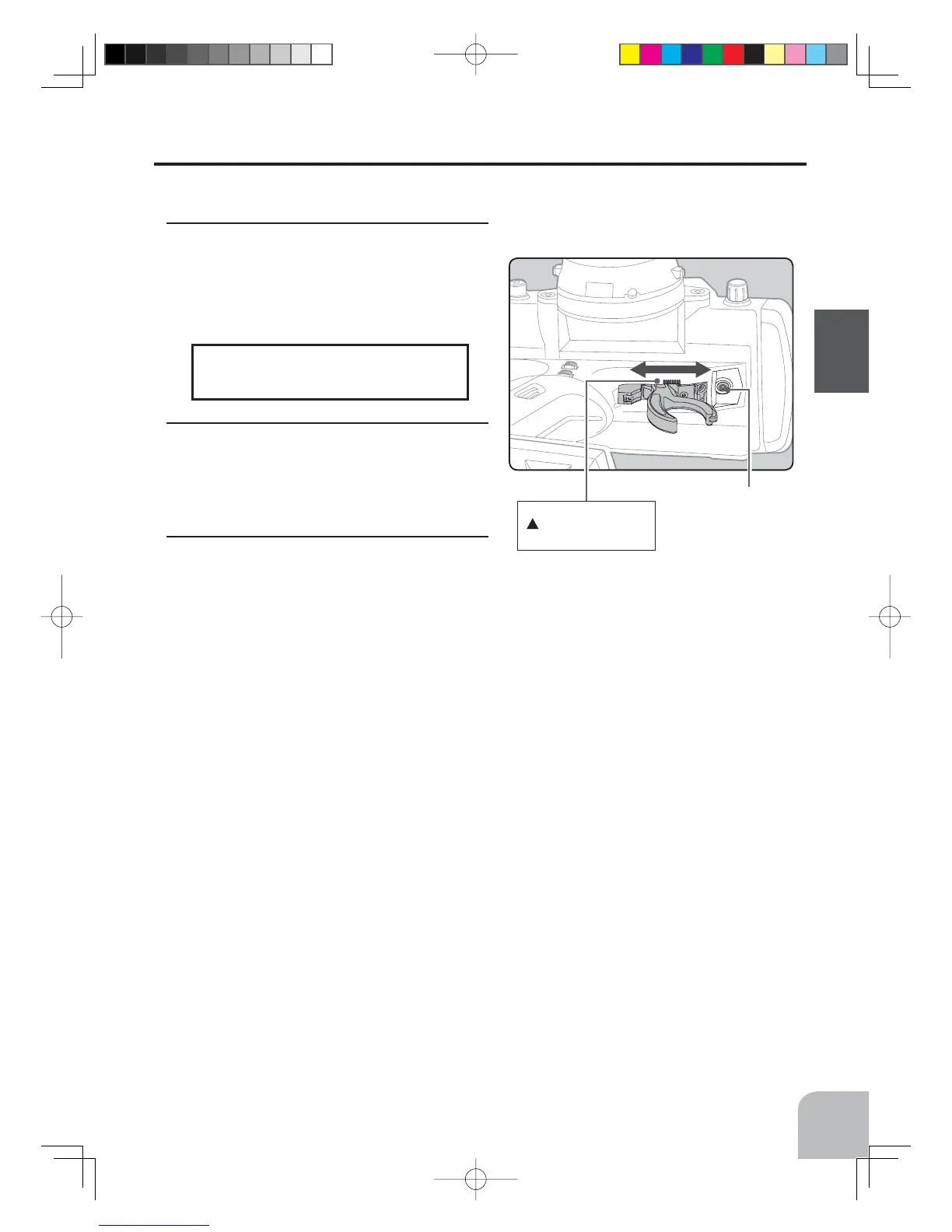

Trigger slide
mounting screw
If the trigger slide screw is turned
too much, the screw may fall out.
2
Using a 2.5mm hex wrench, turn the trigger slide
adjusting screw, and adjust the trigger slide posi-
tion within the marked range. When the adjusting
scre
w is turned clockwise, the trigger slide moves
away from the grip handle.
3
Retighten the mounting screw loosened at step 1
and fasten the trigger slide.
