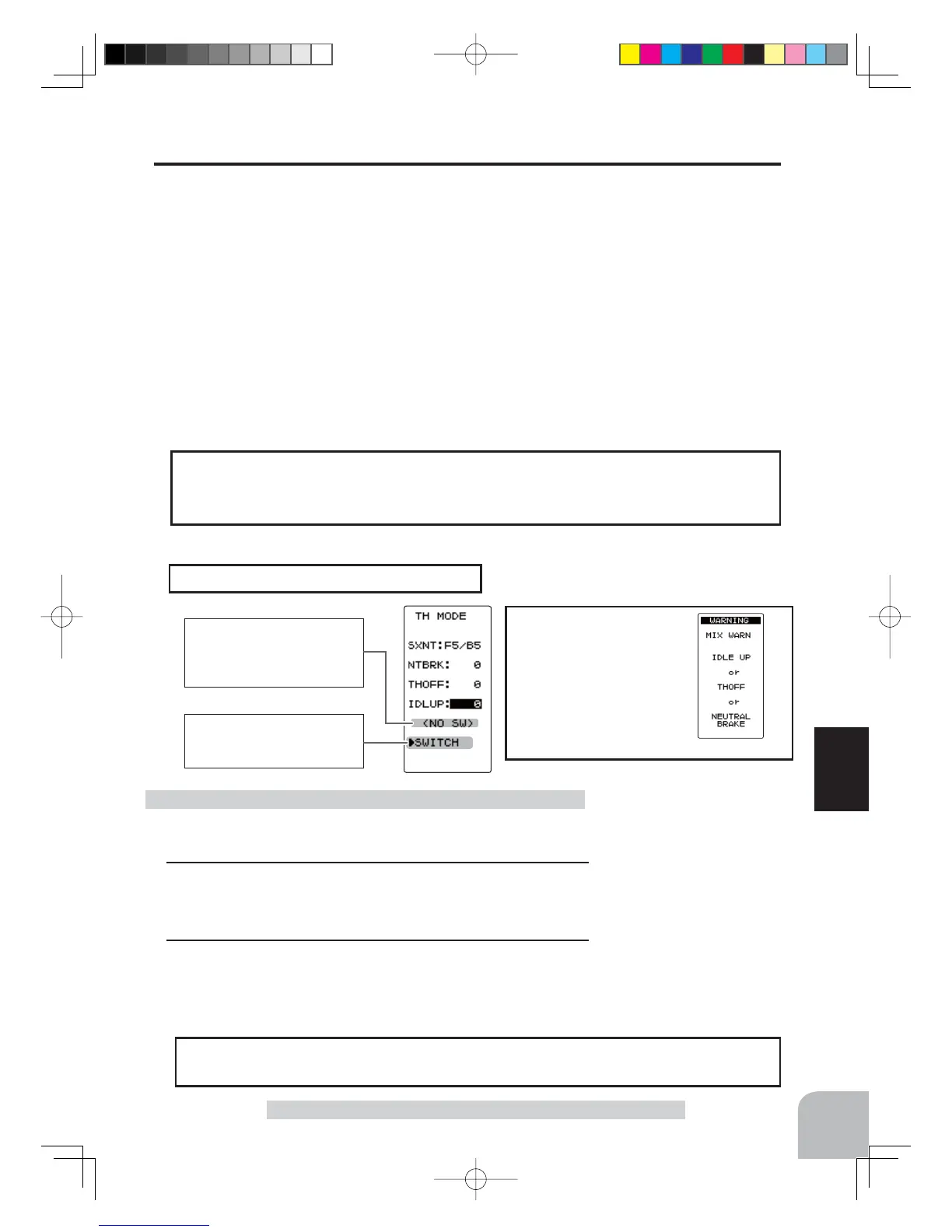

FUTABA 4PV - Idle-Up IDLUP

Warning display
The function select switch
screen (p.72) can be dis-
played from this screen.
< NO SW >
If function’s ON/OFF switch
is not selected, <NO SW> is
displayed.
89
Function
Throttle Mode "TH MODE"
Idle-Up "IDLUP"
This is a function select switch function. The idle up switch must be set (see page 72).
This function is used to improve engine starting performance by raising the idling speed
when starting the engine of a GP car (boat). It is also effective when you want to prevent
WKHEUDNLQJZKHQWKHSRZHULVWXUQHGRIIGXULQJUXQQLQJGXHWRWKHHIIHFWRI\RXUJHDU
ratio setting and choice of motor when operating an electronic car. However, consider-
ing safety, and to prevent the motor from rotating instantly when the power is turned
on, the MC950CR, MC851C, MC602C, MC402CR, and other
Futaba electronic motor
speed controller (ESC)
will not enter the operation mode if the neutral position is not
FRQ¿UPHG:KHQXVLQJWKH0&&50&&0&&0&&5RURWKHU)XWDED
(6&FRQ¿UPWKDWWKH(6&LVLQWKHQHXWUDOSRVLWLRQDQGWKHVHWLVLQWKHRSHUDWLRQPRGH
before setting the idle up function switch to ON.
7KHWKURWWOHQHXWUDOSRVLWLRQLVRIIVHWWRWKHIRUZDUGVLGHRUEUDNHVLGH7KHUHLVQROLQN
DJHORFNLQJHWFEHFDXVH WKHUHLV QRFKDQJHQHDU WKH PD[LPXP RSHUDWLRQDQJOHHYHQ
when the neutral position is offset by this function.
Operation
(Preparation)
- Use the function select switch to select the switch. (p.72)
1
(Idle-Up rate)
Select the setting item "IDLUP" by moving the (JOG) button
up or down. Use the (+) and (-) buttons to set the Idle-Up rate.
2
When finished with setting, return to the MENU screen by
pressing the (END) button.
Idle-Up function adjustment
Adjust button
- Adjust with the (+) and (-) but-
tons.
- Return to the initial value by
pressing the (+) and (-) buttons
simultaneously (approx. 1 sec).
Idle-Up rate (IDLUP)
D50 ~ D1, 0, U1 ~ U50
Initial value: 0
"D": Brake side
"U": Forward side
If the power switch is
turned on while the
idle-up switch is on, an
audible alarm will be
heard. Immediately set
the Idle-Up switch to
OFF.
:KLOHWKLVIXQFWLRQLV21WKH/('EOLQNV
Operation Display
The function select dial function can control the Idle-up rate with digital dial or digital
trim (See page 70).
Dial / Trim Setting
