FUTABA 4PV - Throttle Mode Check; Trims Initial Set-Up

Throttle trim (DT2) Steering trim (DT1)
Steering trim
Throttle trim
F5/B5 or F7/B3
5:5
7:3
F5/B5 F7/B3
Forward side Brake side Forward side Brake side
37
Initial Set-Up
Trims Initial Set-Up
- Steering trim (DT1) check
On the initial set-up, steering trim is assigned to the DT1 trim lever upper right side of the
steering wheel. Operate the DT1 and make sure the marker moves on the ST graph. If de-
fault has been changed, test steering trim in its new location. After checking the trim, set
the trim display to the center (N) position.
- Throttle trim (DT2) check
On the initial set-up, throttle trim is assigned to the DT2 trim lever upper left side of the
steering wheel. Operate the DT2 and make sure the marker moves on the TH graph. If the
default has been changed, test the throttle trim in its new location. After checking the trim,
set the trim display to the center (N) position.

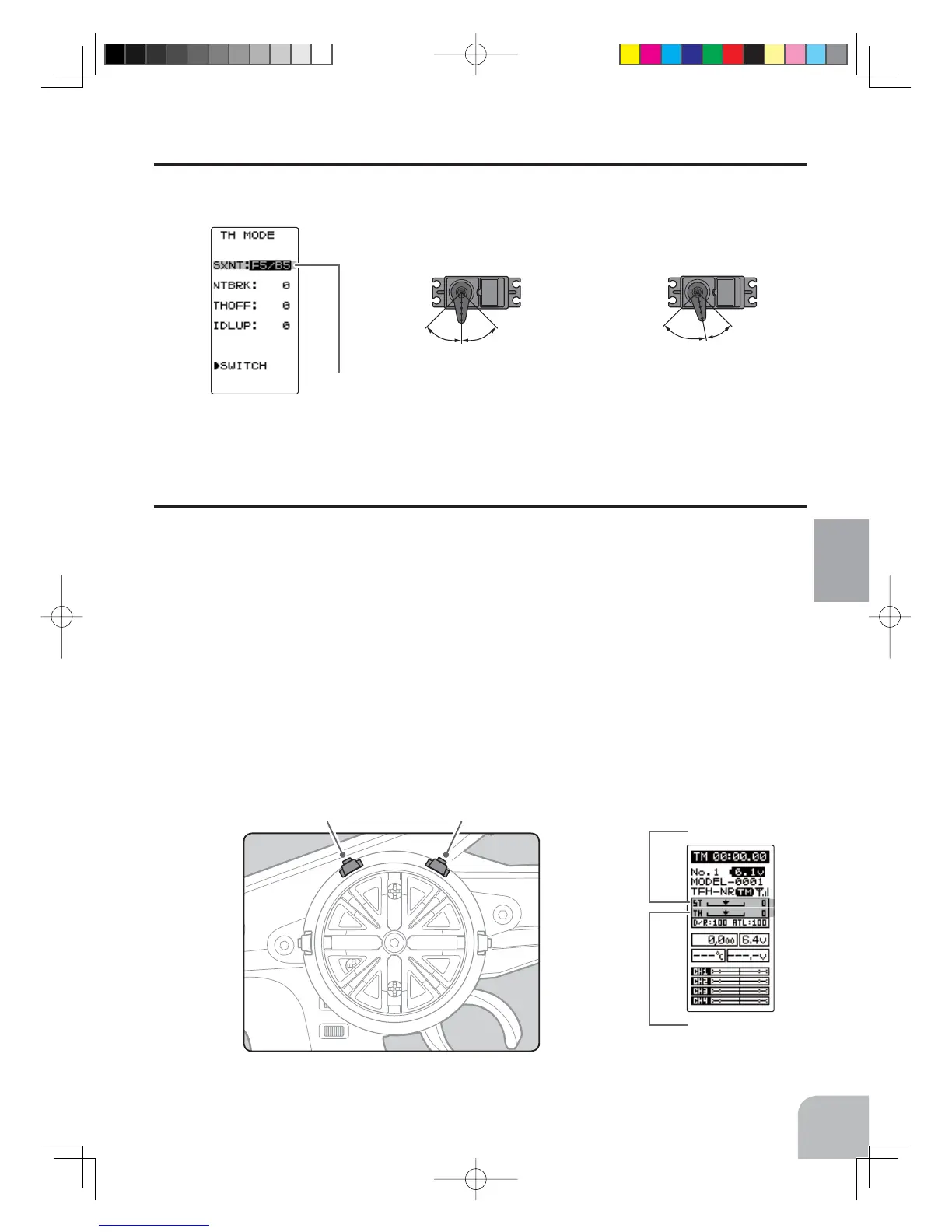

Throttle Mode Check
The throttle servo travel can be set to 5:5 or 7:3 for throttle trigger operation as required by
the throttle mode function (page 88).
