FUTABA 4PV - Channel 3;4 CH3;CH4

Pres
s
Pres
s
Pres
s
(HOME screen)
(MENU 1)
(MENU 3)
(CH3/CH4 screen)(MENU 2)
Select
"
CH3/CH4 "
92
Function
Display when CH3/4 is assigned to a
switch by the switch function. Cannot
adjust the CH3/4 via the screen.
Channel 3/4 "CH3/CH4"
(3/4 channel)
Adjust button
- Adjust with the (+) and (-) but-
tons.
- Return to the initial value by
pressing the (+) and (-) buttons
simultaneously (approx. 1 sec).
Channel 3 position (POSI)
Channel 4 position (POSI)
0~100%
Initial value: 0
Channel 3/4 "CH3/CH4"
The channel 3/4 servo position can be set from the this screen. When CH3/4 is assigned
to a trim dial or switch by the trim dial function (p.70) or the switch function (p.72),
WKLVVHWWLQJLVOLQNHGWRWKDW
When CH3/4 is not assigned to a trim dial or switch, it can be set with this screen.
When CH3/4 is assigned to a switch by the switch function, you cannot adjust the
CH3/4 via the screen.
1
(Function selection)
On each CH3/CH4 screen select CH3 "POSI" or CH4 "POSI"
by moving the (JOG) button up or down.
2
(Position setting/rate adjustment)
Use the (+) and (-) buttons to adjust the channel 3 or channel
4 position.
3
When finished with setting, return to the MENU screen by
pressing the (END) button.

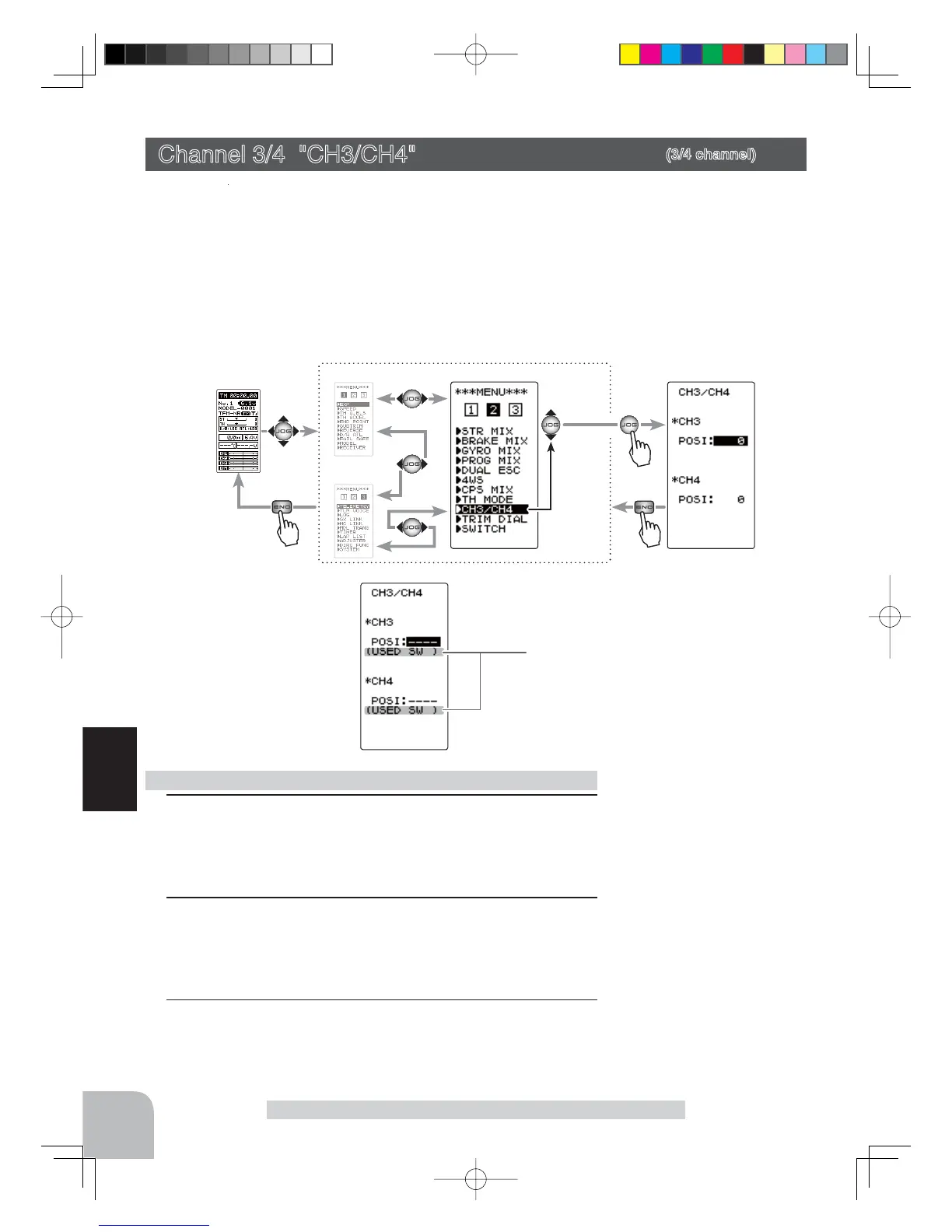

Rate/position adjustment on channel menu screen
Display
"
CH3/CH4
"
screen using the following method:
