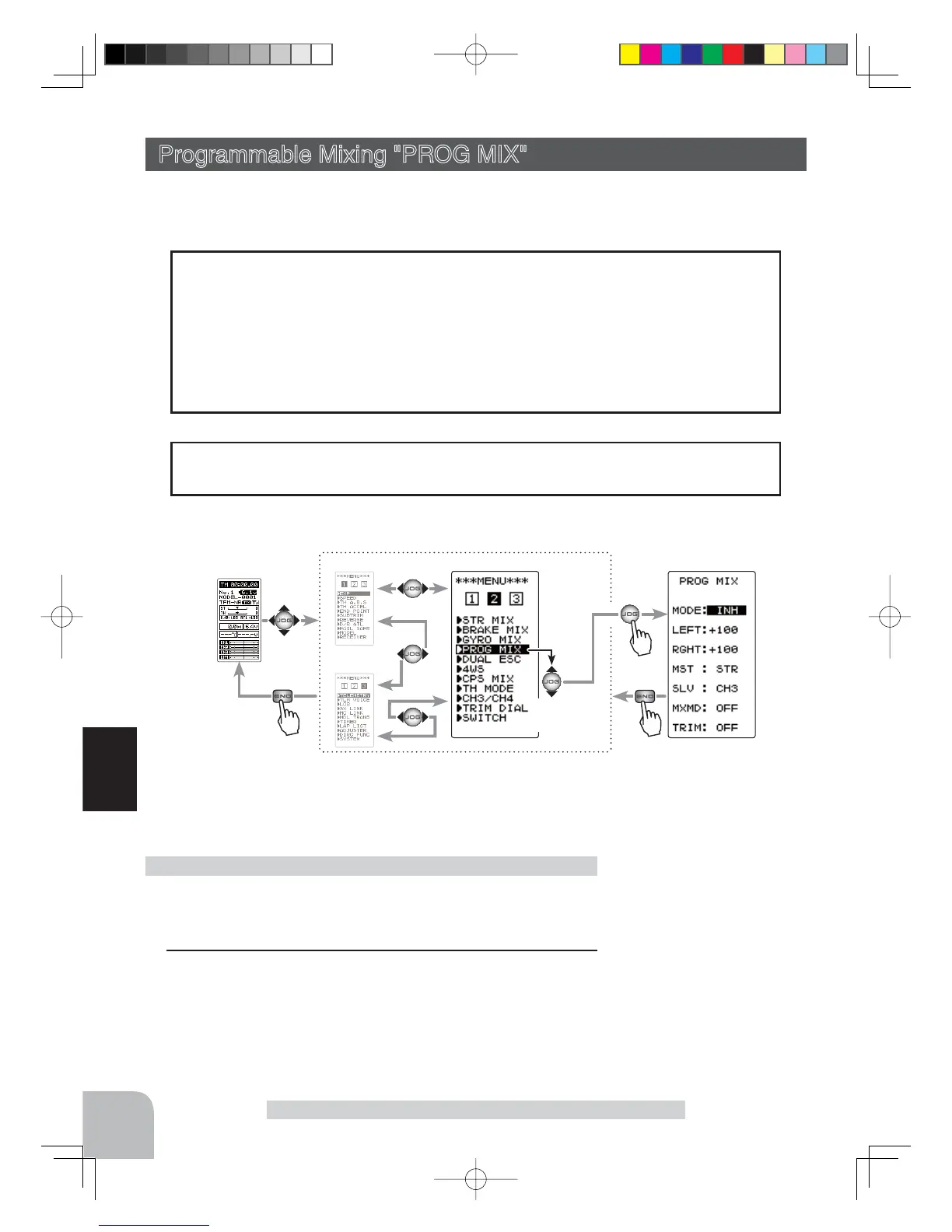

FUTABA 4PV - Programmable Mixing PROG MIX

(HOME screen)
(MENU 1)
(MENU 3)
(PROG MIX screen)
(MENU 2)
Pres
s
Pres
s
Pres
s
Select
" PROG MIX "
78
Function
Programmable Mixing "PROG MIX"
This function allows you to apply mixing between steering, throttle, channel 3 and channel 4.
-When the steering or throttle channel is the master channel (channel that applies mix-
ing), trim data can be added (Trim mode).
- The mixing mode selection (Master mixing mode).
Relating function
steering :EPA, STR EXP, D/R, SPEED, 4WS
throttle :EPA, THR EXP, ATL, ABS, SPEED, BRAKE MIX, NT-BRK, ESC MIX, TH ACCEL
CH3 :EPA, BRAKE MIX, 4WS
CH4 :EPA, BRAKE MIX, ESC MIX
Additional Functions
The movement of the master channel side will be added to the movement of the slave
channel side.
Movement of the slave channel side
Programmable Mixing "PROG MIX"
(All channels)
Function SW
PROGMIX
Program mixing adjustment
(Preparation)
- When "PROG MIX" is turned ON and OFF by switch, set the
switch by select switch function (p.72).
1
(Mixing function ON/OFF)
Select the setting item "MODE" by moving the (JOG) button up
or down. Use the (+) or (-) and set the function to the "ON" or
"OFF" state.
"
INH
"
: Function OFF.
"
ON
"
: Function ON. When the switch is OFF,
"
OFF
"
is displayed.
Display
"
PROG MIX
"
screen using the following method:
Function ON/OFF (MODE)
INH,ON (OFF)
Setup items
MODE : Function ON/OFF
LEFT : Mixing rate (Left side)
RGHT : Mixing rate (Right side)
MST : Master channel
SLV : Slave channel
MXMD : Mix mode
TRIM : Trim mode
Select button
- Select with the (+) or (-) but-
tons.
