These setup items are different depending
on the master channel.
Upper side : LEFT/FWRD/UP
Lower side : RGHT/BRAK/DOWN
Program mixing function
79
Function

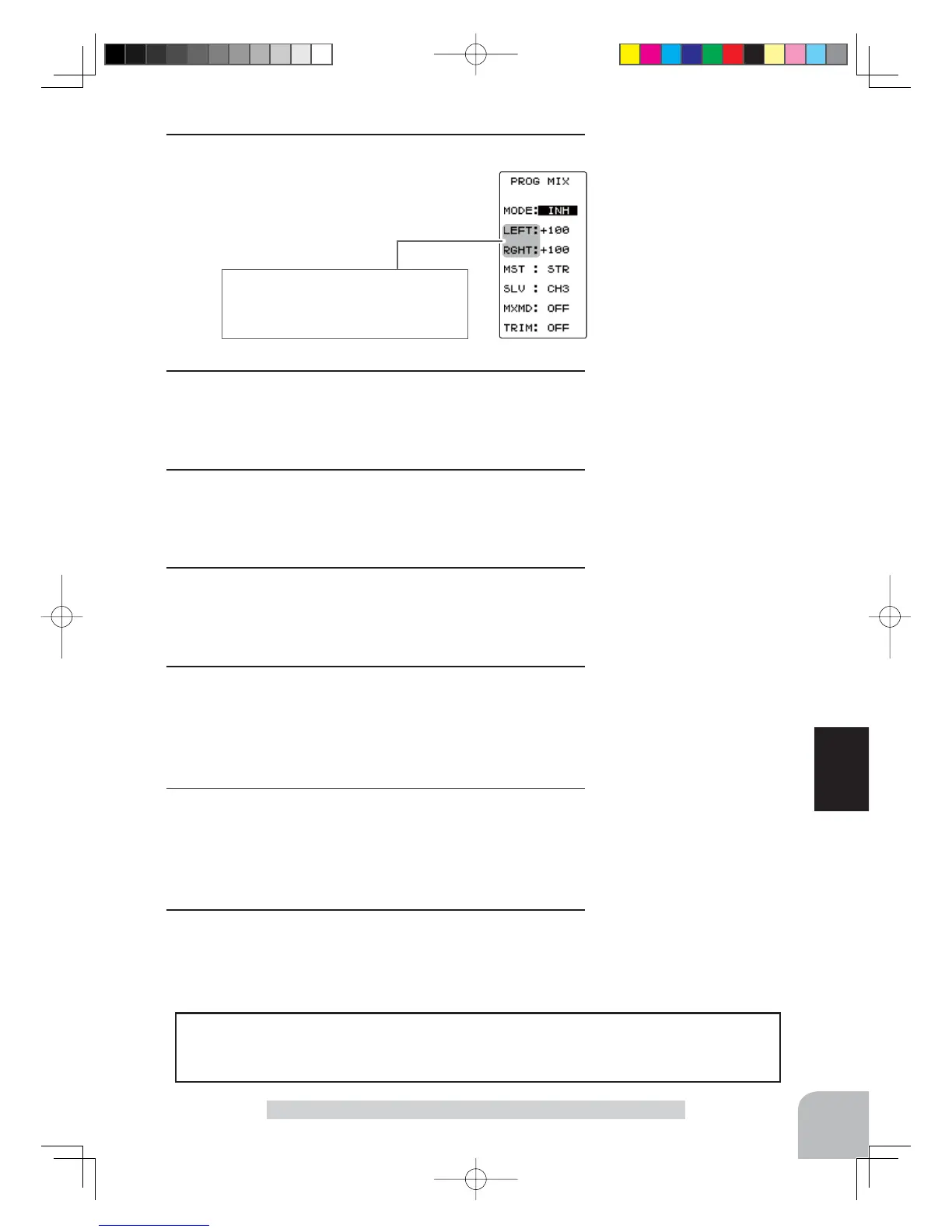

Programmable Mixing "PROG MIX"
Mixing amount
-120~0~+120
Initial value: +100
Channel selection (MST)
STR, THR, CH3, CH4
Initial value: STR
Channel selection (SLV)
STR, THR, CH3, CH4
Initial value: CH3
Mixing mode (MXD)
OFF, ON
Initial value: OFF
Mixing amount
-120~0~+120
Initial value: +100
Trim mode (TRIM)
OFF, ON
Initial value: OFF
2
(Master channel)
Select setup item "MST" by moving the (JOG)
button up or down, and select the master
channel by pressing the (+) or (-) button.
When the program mixing function ON/OFF by switch, use the function select switch
function (see page 72). Mixing rate (RATE) can be controlled with digital dial or digi-
tal trim, using the function select trim dial function (see page 70).
Switch / Dial / Trim Setting
3
(Slave channel)
Select setup item "SLV" by moving the (JOG) button up or
down, and select the slave channel by pressing the (+) or (-)
button.
4
(Upper side mixing amount adjustment)
Select the setting item upper side (See an upper fi gure) by
moving the (JOG) button up or down. Use the (+) or (-) but-
ton and adjust the upper side mixing amount.
5
(Lower side mixing amount adjustment)
Select the setting item lower side (See an upper fi gure) by
moving the (JOG) button up or down. Use the (+) or (-) but-
ton and adjust the lower side mixing amount.
6
(Mixing mode setup)
Select setup item "MXMD" by moving the (JOG) button up or
down, and use the (+) or (-) button to select the mixing mode.
"
OFF
"
:Mixing proportional to master channel operation.
"
MIX
"
:Mixing by master channel another function considered.
7
(Trim mode setup)
Select setup item "TRIM" by moving the (JOG) button up or
down, and use the (+) or (-) button to select the mixing mode.
"
OFF
"
:Trim is removed.
"
ON
"
:Trim is added.
8
When fi nished with setting, return to the MENU screen by
pressing the (END) button.
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) buttons
simultaneously (approx. 1 sec).
Select button
- Select with the (+) or (-) but-
tons.
Select button
- Select with the (+) or (-) but-
tons.
Select button
- Select with the (+) or (-) but-
tons.
Select button
- Select with the (+) or (-) but-
tons.
