FUTABA 4PV - Function Map; Operation of Screen; Calling the Menu Screen

(+) button is press(-) button is press(END) button is press(DIR) button is press (JOG) button is press
(+) button
(-) button
(JOG) button
(JOG) button up
(JOG) button down
(JOG) button left
(JOG) button right
(JOG) button up, down, left or right
Pres
s
Pres
s
Pres
s
Pres
s
Pres
s
(DISP HOME screen)
(PWR HOME screen)
Pres
s
Pres
s
39

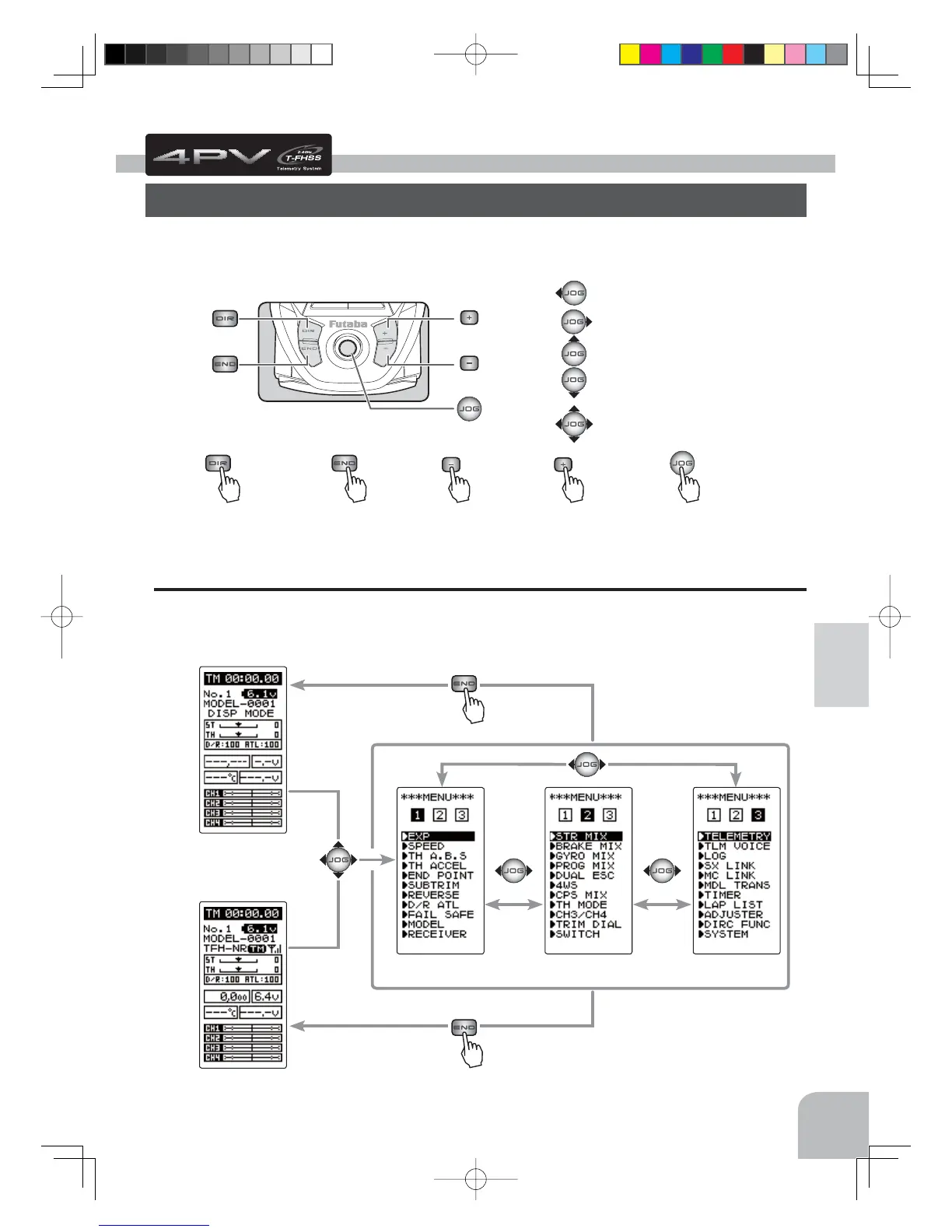

Function Map
Function Map
Operation Of Screen
In this instruction manual, Edit Buttons are represented by the symbols shown below.
The (JOG) button can be operated in 4 directions: up, down, left, and right.
Calling The Menu Screen
Refer to the map below for the method of displaying the function setting menu screen from
the PWR HOME screen or DISP HOME screen and the method of returning from the menu
screen to the PWR HOME screen or DISP HOME screen.
