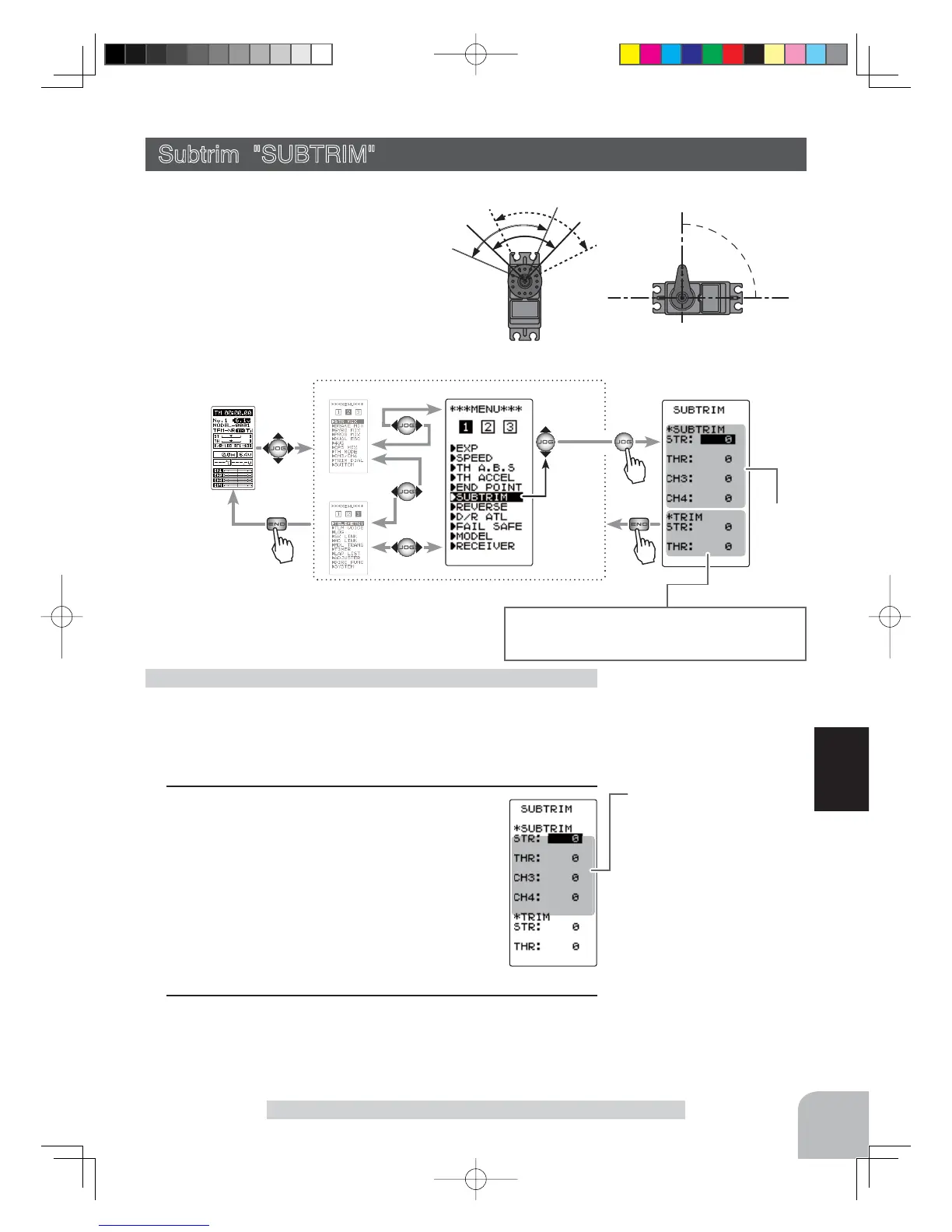

FUTABA 4PV - Subtrim SUBTRIM

90°
Use to adjust the neutral position
Move the cursor to "STR, THR,
CH3 and CH4" with the (JOG)
button.
Setting item
STR :Steering (1st channel)
THR :Throttle (2nd channel)
CH3 :3rd channel
CH4 :4th channel
(SUBTRIM screen)
(MENU 2 )
(MENU 1 )
Subtrim
Pres
s
(HOME screen)
(MENU 3 )
Pres
s
Pres
s
Select
" SUBTRIM "
Steering and throttle center trim
When assigning DT1, DT2, or other digital trims to
another function, make adjustments at this screen.
51
Function
Subtrim "SUBTRIM"
Use this function to adjust the neutral position of the steering, throttle, channel 3 and
channel 4 servos.
(Preparation)
- Set the steering and throttle digital trims to the neutral "0" posi-
tion. Set CH3 and CH4 to the center "0" position.
1
(Subtrim adjustment)
Use the (+) or (-) button to adjust the center.
(Each channel can be set similar.)
Subtrim adjustment
*Subtrim adjusts the entire range of
the servo in the set direction.
Subtrim "SUBTRIM"
(All channel)
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) buttons
simultaneously (approx. 1 sec).
Subtrim Values
STR :L100~R100
THR :B100~F100
CH3 :-100~+100
CH4 :-100~+100
Initial value : 0
Trim Values
STR :L100~R100
THR :B100~F100
Initial value : 0
Display to
"
SUBTRIM
"
screen using the following method:
2
When finished with setting, return to the MENU screen by
pressing the (END) button.
