FUTABA 4PV - Steering Dual Rate; Throttle ATL D;R ATL

(HOME screen)
(MENU 2 )
(MENU 3 )
(D/R ATL screen)
(MENU 1 )
Pres
s
Pres
s
Pres
s
Select
"D/R" ATL
69
Function

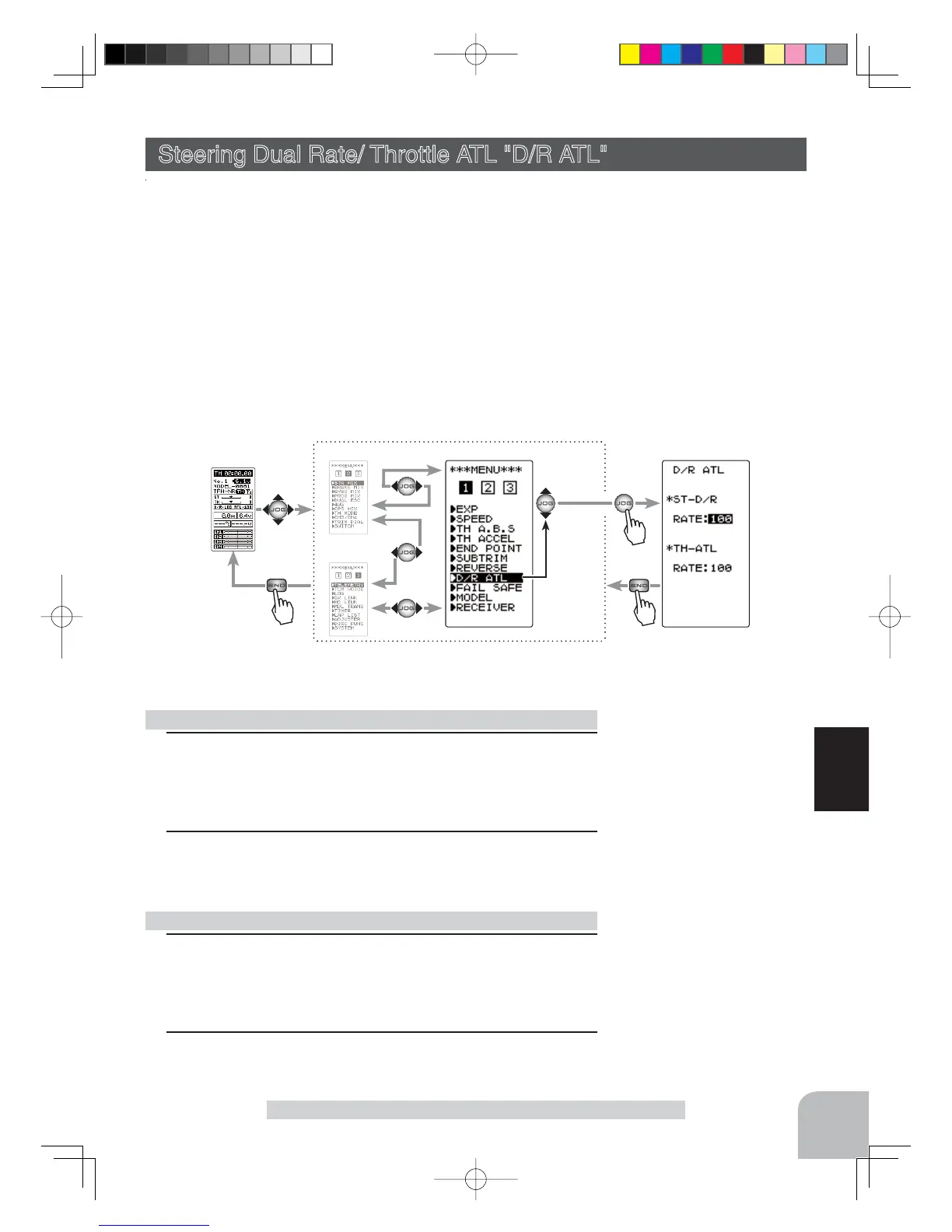

Steering Dual Rate/ Throttle ATL "D/R ATL"
Steering Dual Rate/ Throttle ATL "D/R ATL"
D/R (Steering dual rate)
The steering left and right servo travels are adjusted simultaneously. This setting is
linked to transmitter grip trim lever DT5. When DT5 is assigned another function, dual
rate can be adjusted with this screen.
ATL (Throttle ATL)
This function decreases the set value when the braking effect is strong and increases
the set value when the braking effect is weak. This function is linked to transmitter
grip trim lever DT6. When DT6 is assigned another function, this function can be set
with this screen.
Display
"
D/R ATL
"
screen using the following method:
1
(Dual rate adjustment)
Select the setting item ST-D/R "RATE" by moving the (JOG)
button up or down. Adjust the servo travel with the (+) and (-)
buttons.
2
When finished with setting, return to the MENU screen by
pressing the (END) button.
1
(Brake amount adjustment)
Select the setting item TH-ATL "RATE" by moving the (JOG)
button up or down. Adjust the servo travel with the (+) and (-)
buttons.
2
When finished with setting, return to the MENU screen by
pressing the (END) button.
Dual rate adjustment
ATL function adjustment
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) buttons
simultaneously (approx. 1 sec).
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) buttons
simultaneously (approx. 1 sec).
D/R rate (RATE)
0~100%
Initial value: 100
ATL rate (RATE)
0~100%
Initial value: 100
