Throttle trigger function Steering wheel function
Left
Pull
Push
Left turn
Forward
brake or back
Right turn
Right
DT3 DT6DT4
DT2 DT1 DT5
ATL display
Steering D/R display
Steering trim display
Throttle trim display
21

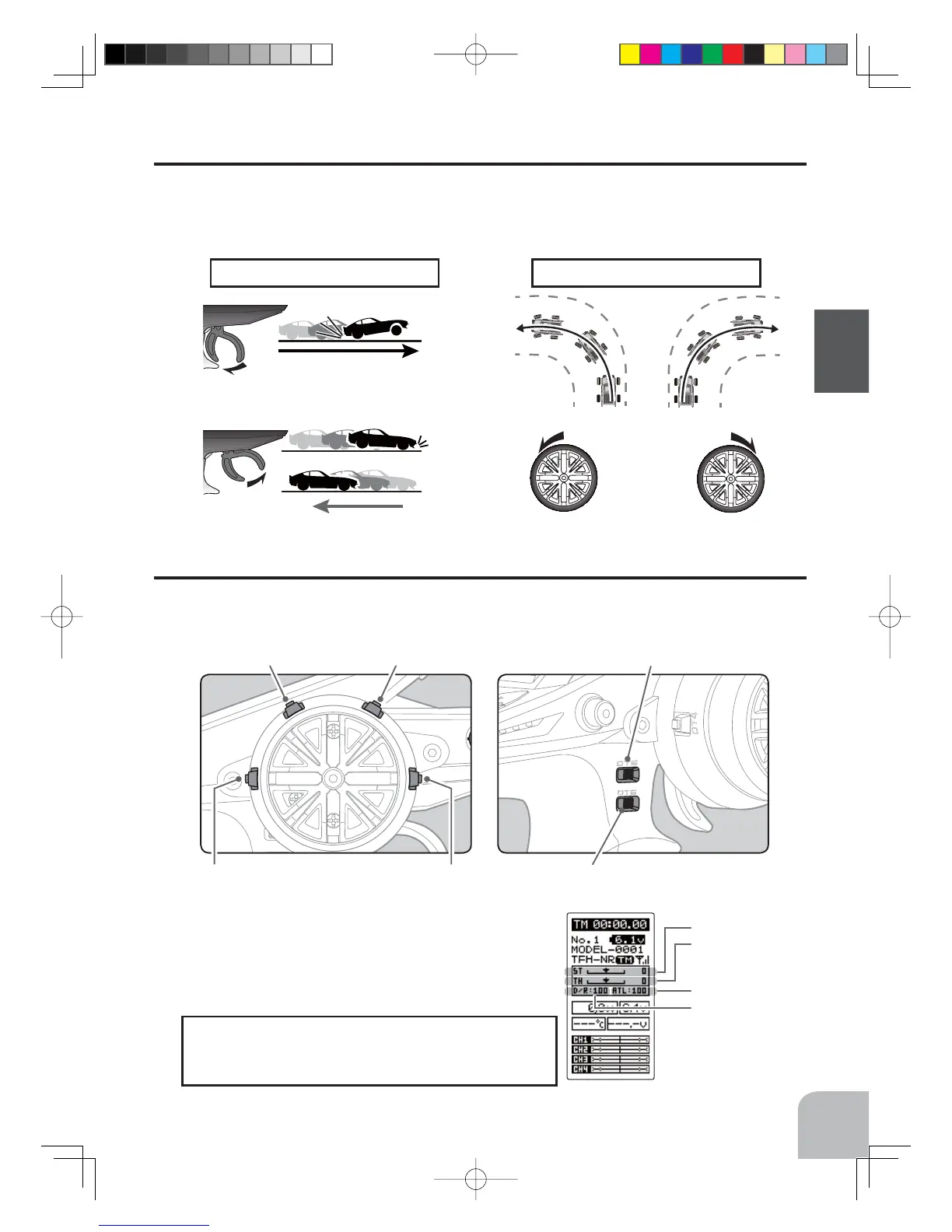

Before Using
Steering And Throttle Trim Operation
Digital Trim Operation
(Initial settings: DT1: Steering trim, DT2: Throttle trim, DT3: Channel 3, DT4: Channel 4, DT5: Steering D/R, DT6: ATL-Brake rate)
Operating by the trim: Push the trim lever to the left or right (up or down). The current po-
sition is displayed on the LCD screen.
Steering Wheel And Throttle Trigger Operation
(CH1: Steering wheel, CH2: Throttle trigger)
Steering Wheel Function: Turns the model right or left.
Throttle Trigger Function: Controls the speed of the model as well as the direction of travel
- forward or reverse.
• Each step is indicated by a tone.
• When the trim exceeds the maximum trim adjustment range, the
beep will change and the servo will not move any farther.
• Steering D/R :The steering left and right servo travels are ad-
justed simultaneously.
• ATL: Decreases the set value when the braking effect is strong
and increases the set value when the braking effect is weak.
With the center trim feature, trim adjustments have no
effect on the maximum servo travel. This prevents the
linkages from binding when adjustments are made.
