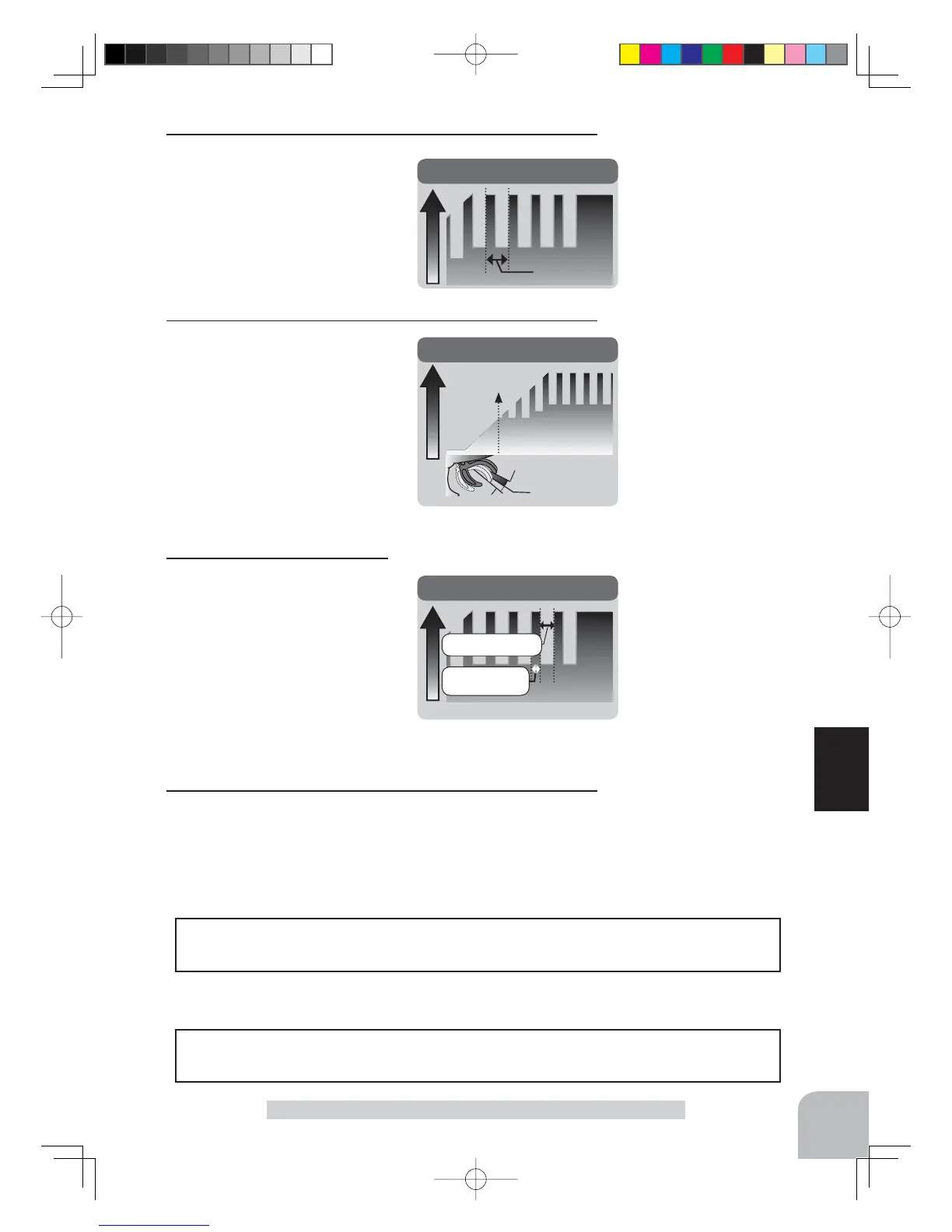

FUTABA 4PV - Page 67

CYCL
Servo travel
CYCL (Cycle)
Cycle speed (CYCL)
1 ~ 30
Initial value: 10
DUTY
Servo travel
DUTY (duty): X and Y ratio
X: (Brake
application time)
Y: (Brake return time)
Duty ratio (DUTY)
LOW - MID - HIGH
Initial value: MID
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) buttons
simultaneously (approx. 1 sec).
Trigger point (TG.P)
10 ~ 100
Initial value: 30
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) buttons
simultaneously (approx. 1 sec).
Servo travel
TG.P
TG.P
(Trigger point)
TGP
Brake side
Neutral
67
Function
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) buttons
simultaneously (approx. 1 sec).
A.B.S. Function "TH A.B.S"
Use PS1 or PS2 to switch the A.B.S. function ON/OFF.
See the function select switch function (See page 72).
Switch setting
The brake return amount (AB.P), delay amount (DELY) and cycle (CYCL) can be con-
trolled with digital dial or digital trim, with the function
trim dial (See page 70).
Dial / Trim Setting
4
(Cycle speed adjustment)
Select setting item "CYCL" by
moving the (JOG) button up or
down. Use the (+) or (-) button to
adjust the pulse speed (cycle).
- The smaller the set value, the faster the pulse speed.
5
(Trigger point setup)
Select setting item "TG.P" by
moving the (JOG) button up or
down. Use the (+) or (-) button to
adjust the operation point.
- Sets the throttle trigger position at which the A.B.S. function is performed. The num-
ber is the display with the full brake position made 100.
6
(Cycle duty ratio setup)
Select setting item "DUTY" by
moving the (JOG) button up or
down. Use the (+) or (-) button to
select the duty ratio.
"
LOW
"
 %UDNHDSSOLFDWLRQWLPHEHFRPHVVKRUWHVW%UDNHVORFNZLWKGLI¿FXOW\
"
HIGH
"
:Brake application time becomes longest (Brakes lock easily).
(Remark) For low grip, set at the LOW side and for high grip, set at the HIGH side.
7
When finished with setting, return to the MENU screen by
pressing the (END) button.
