The function select switch
screen (p.72) can be dis-
played from this screen.
< NO SW >
Displayed when the 4WS
type SW is not used.
81
Function

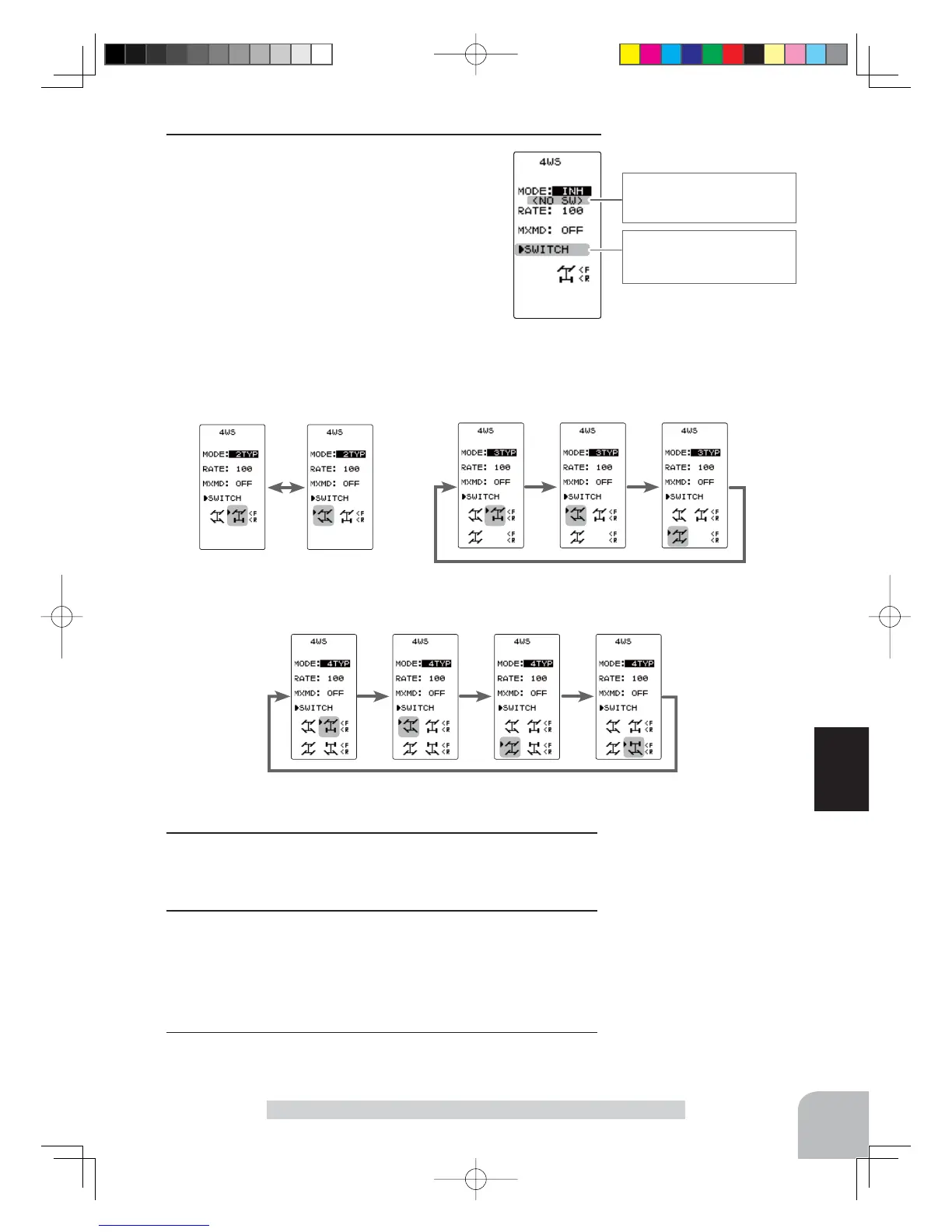

4WS Mixing "4WS"
1
(4WS type selection)
Select the setting item "MODE" by moving the
(JOG) button up or down. Use the (+) or (-) and
set the function to the "ON" or "OFF" state.
"
INH
"
:Function OFF (front only).
"
2TYP
"
:Front side only, reverse phase switching.
"
3TYP
"
:
Front side only, reverse phase and same phase switching.
"
4TYP
"
:Front side only, reverse phase, same phase, and rear side
only switching.
- When
"
(GYRO MIX ACT
→
INH)
"
is displayed, the 4WS cannot be used if the GY-
RO MIX function is not set to
"
INH
"
.
- When
"
(BRAKE CH3 ACT
→
INH)
"
is displayed, the 4WS cannot be used if the
BRAKE MIX (CH3) function is not set to
"
INH
"
.
Switched in the order shown in the fi gure below by set SW (PS2)
.
Function ON/OFF (MODE)
OFF, 2TYP, 3TYP, 4TYP
Mixing mode (MXMD)
OFF, ON
Initial value: OFF
Rear rate (RATE)
0 ~ 100
Initial value:100
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) buttons
simultaneously (approx. 1 sec).
2
(Rear side travel adjustment)
Select setting item "RATE" by moving the (JOG) button up or
down. Adjust the rear side travel with the (+) or (-) button.
3
(Mix mode setting)
Select setting item "MXMD" by moving the (JOG) button up or
down. Set the mix mode with the (+) or (-) button.
"
OFF
"
:The EXP function of the 1st CH and other settings are not mixed.
"
ON
"
:The EXP function o the 1st CH and other settings are mixed.
4
When finished with setting, return to the MENU screen by
pressing the (END) button.
Select button
- Select with the (+) or (-) but-
tons.
Select button
- Select with the (+) or (-) but-
tons.
"4TYP"
：
Front side only, reverse phase, same phase, and rear side only switching
"2TYP"
：
Front side only and reverse
phase switching
"3TYP"
：
Front side only, reverse phase, and same phase switching
