85
Function
Gyro mixing "GYRO MIX"
(Preparation)
- Refer to the gyro instruction manual and connect the gyro
to the receiver. When using remote gain, connect gyro sensi-
tivity adjustment to the 3rd CH of the receiver.
- When using gyro mixing by switching between the NORM
(normal) and AVCS modes, use the function select switch
function (p.72) to set the switch to be used.
1
(Gyro mixing setting)
Select the setting item "MODE" by moving the (JOG) button
up or down. Set the function by pressing the (+) or (-) button.
"
INH
"
: Function OFF.
"
NORM
"
:NORMAL mode gain.
"
AVCS
"
:AVCS mode gain.
"
SEL
"
:Switching Normal mode and AVCS mode.
(Displayed NO SW when the Gyro Mode SW is not used.)
-When
"
(4WS OFF)
"
is displayed, the GYRO MIX cannot be used if the 4WS
function is not set to
"
OFF
"
.
- When
"
(BRAKE CH3 ACT
→
INH)
"
is displayed, the GYRO MIX cannot be
used if the BRAKE MIX (CH3) function is not set to
"
INH
"
.
Gyro mixing adjustment
2
(NORMAL side gain adjustment)
Select the setting item "NORM" by moving the (JOG) button
up or down. Adjust the NORMAL side gain with the (+) or (-)
button.
(AVCS side gain adjustment)
Select the setting item "AVCS" by moving the (JOG) but-
ton up or down. Adjust the AVCS side gain with the (+) or (-)
button.
3
When fi nished with setting, return to the MENU screen by
pressing the (END) button.
Function selection (MODE)
INH, NORM, AVCS, SEL
NORMAL / AVCS gain
(NORM / AVCS)
0 ~ 120
Initial value:30

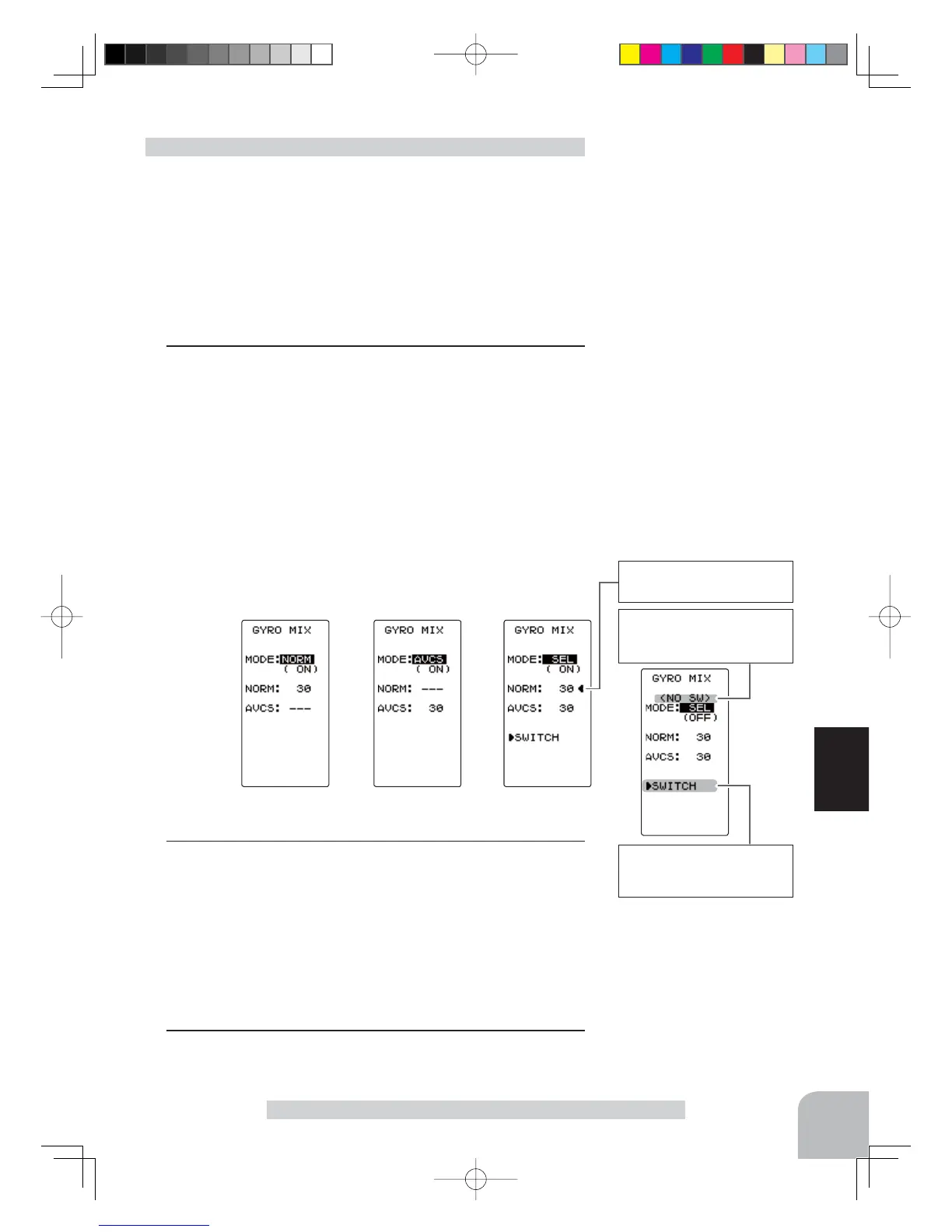

"SELE" mode"NORM" mode "AVCS" mode
Shows the gyro mode select
switch mode.
The function select switch
screen (p.72) can be dis-
played from this screen.
< NO SW >
Displayed when the Gyro
Mode SW is not used.
Function SW
GYRO
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) buttons
simultaneously (approx. 1 sec).
Select button
- Select with the (+) or (-) but-
tons.
Setup items
MODE : Gyro mode
NORM :
Normal mode gain
AVCS :
AVCS mode gain
