2.0 — 79 — 12 October 2012

Launcher

Assemble the launcher

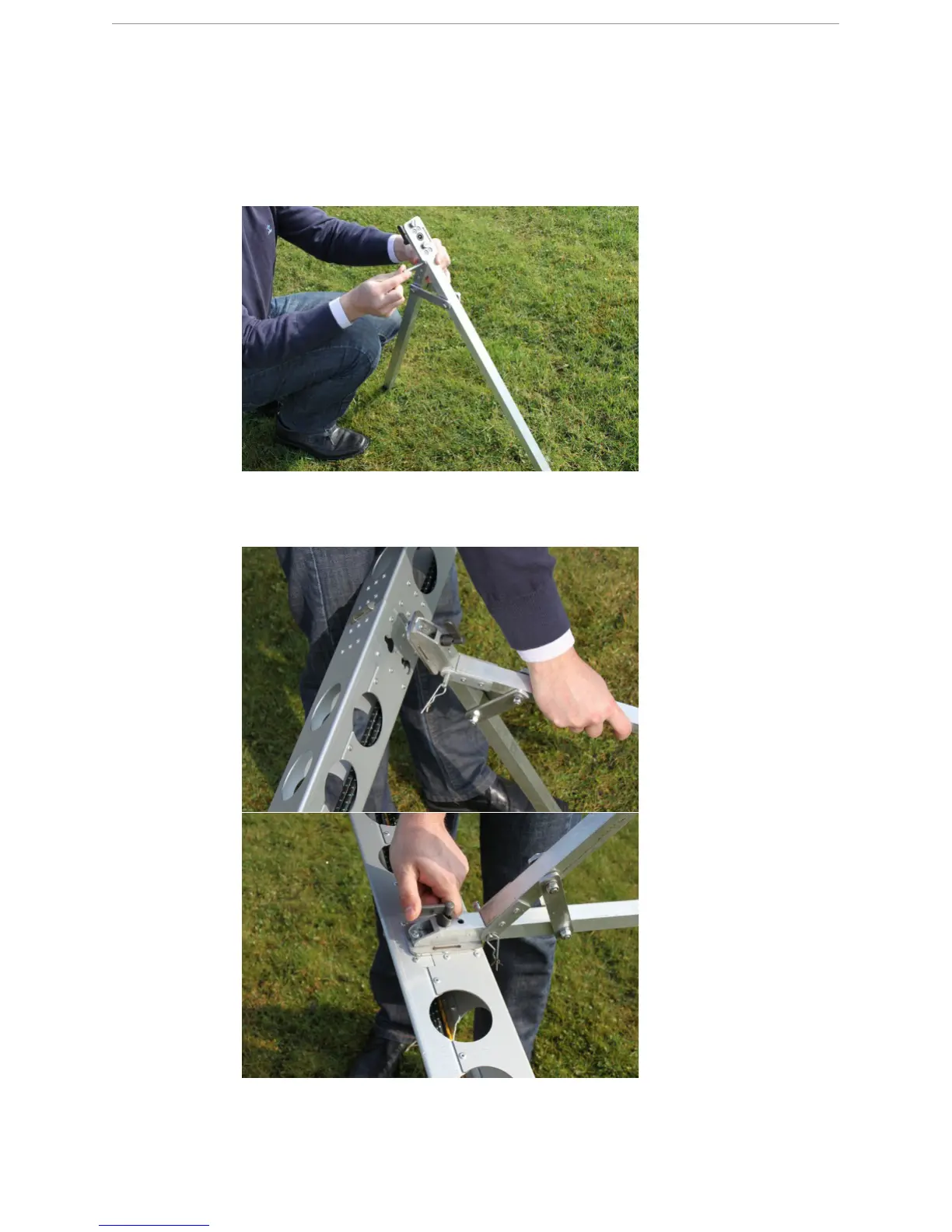

3 Unfold and secure the V-support with the lock pin.

4 Attach the V-support to the launch slide by inserting the support fix pins in the preserved

holes (situated at approximately 2/3 of the length of the launch slide) and tightening the

support fix.

5 Pull the launch cable out of the launch slide.
