2.0 — 81 — 12 October 2012

Launcher

Assemble the launcher

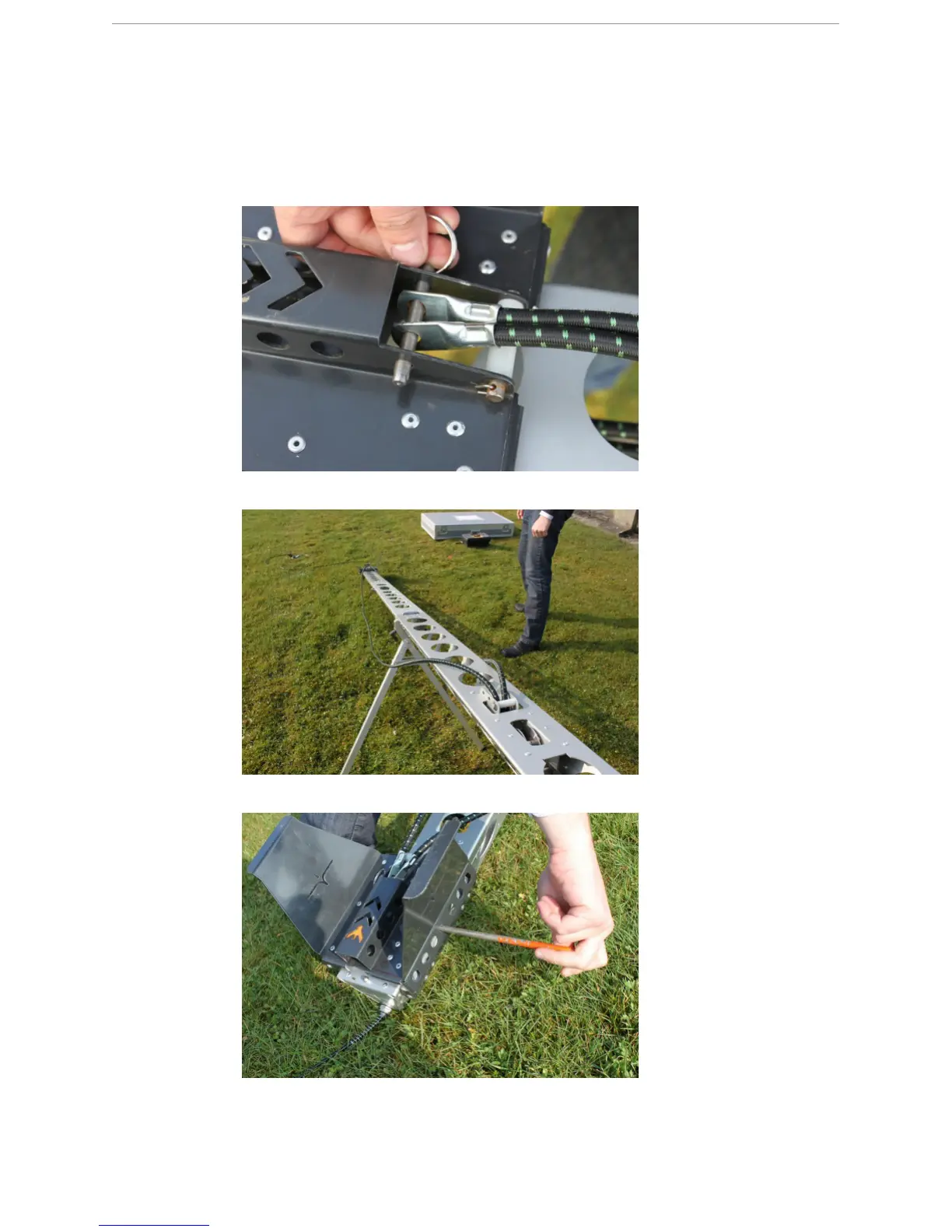

7 Attach the launch cable to the launch dock with the lock pin.

AUTION: Make sure the launch cable is not tightened or twisted.

8 Insert the safety pin into the launch dock.
