MDS 05-6632A01, Rev. F MDS Orbit MCR/ECR Technical Manual 275
Navigate to Serial ---> Basic Config / Terminal Server 8.
Disable and re-enable the Terminal Server. 9.
- Click to select the Serial Port,
- Un-check the Enabled box
- Save
Re-check the Enabled box and then Save. 10.
Repeat this on each Multipoint unit. 11.
Click on Add then select the COM port to use as a Terminal Server and then OK. 12.
Configure the COM port; 13.
- Click Choices
- Click Udp
- Click Udp check box
Configure the UDP Mode that best fits the system, configure any local ports, remote ports/IPs, and 14.
Multicast ports/IPs.

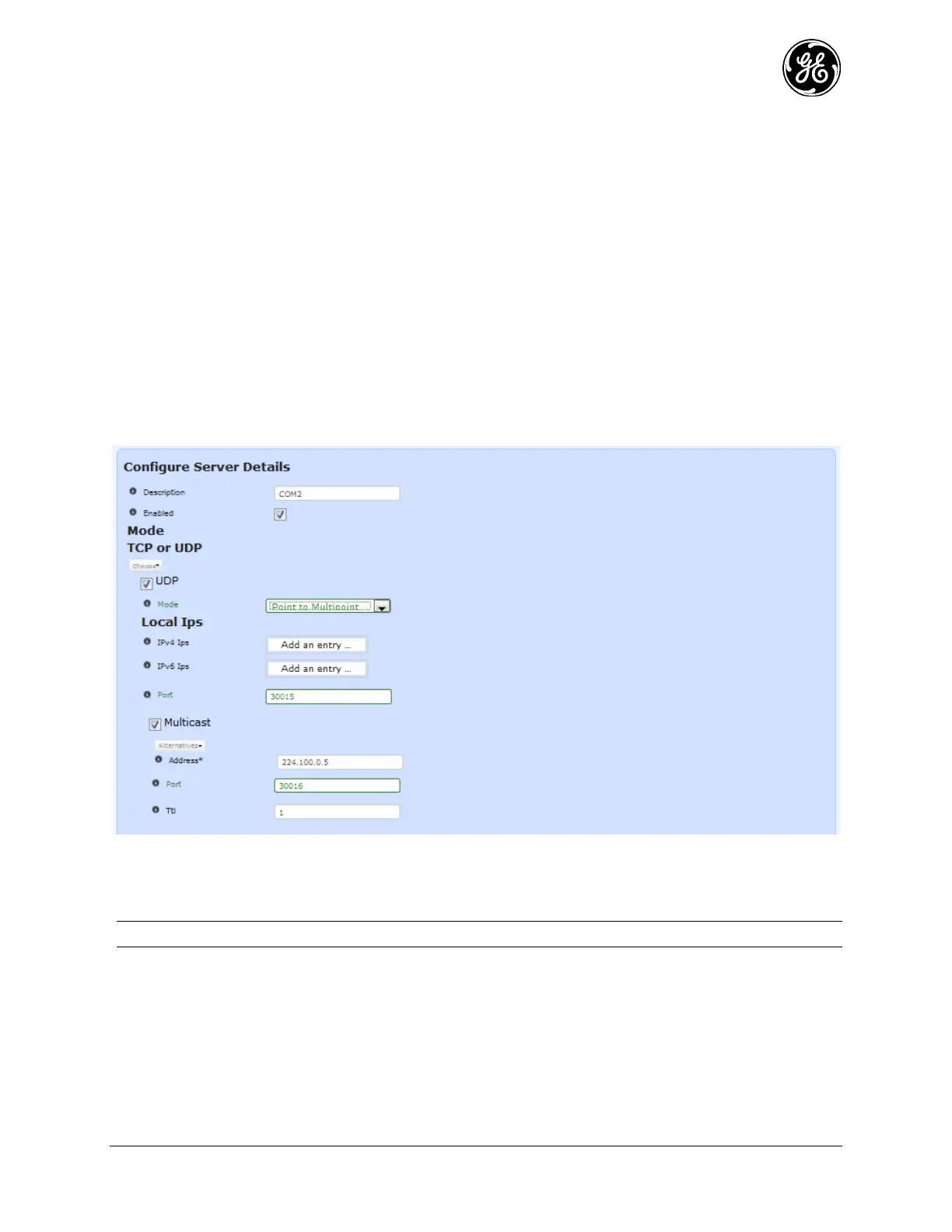

Figure 3-192. Example: UDP TS Configuration
Save the configuration 15.
Command Line Interface (CLI):
NOTE Change plain text/italics as appropriate to set up the system
Configure the following:
% set routing static-routes ipv4 route 220 dest-prefix 224.0.0.0/4 outgoing-interface Bridge
% set services serial terminal-server server YOURPORT mode udp mode point-to-multipoint
port 30015 multicast port 30016 address 224.100.0.5
% commit
Configuring via the CLI
The following shows how to configure and enable a UDP terminal server on COM1:
