MDS 05-6632A01, Re
v. F
MDS Orbit MCR/ECR T
echnical Manual
353

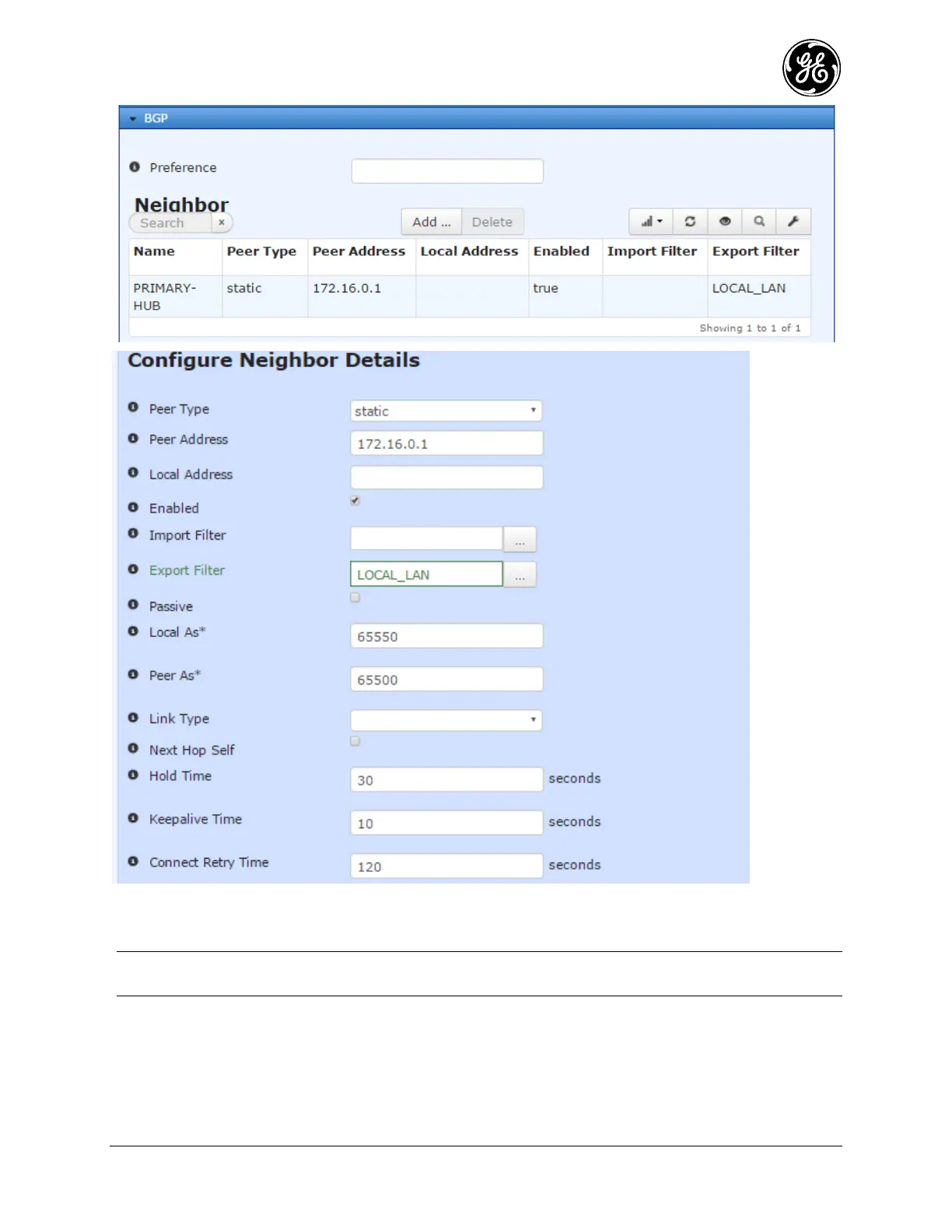

To apply configura
tion, click
Save.
NOTE
Please see section 12.2.2.1
for an exam
ple on use of BGP to exc
hange routes ov
er DMVPN
network.
Using CLI
In
configuration
m
ode, enter follow
ing comm
ands:
%
set routing bgp neighbor
PRIMARY-HUB
peer-address
172.16.0.1
%
set routing bgp neighbor
PRIMARY-HUB
enabled
true
352
354
