56 MDS Orbit MCR/ECR Technical Manual MDS 05-6632A01, Rev. F
Example #2
In Figure 3-18, there are two Orbit MCR devices, one acting as a WiFi Access Point, the other as a WiFi
Station. Together, the units are providing a wireless bridge between the laptop and the SCADA device.

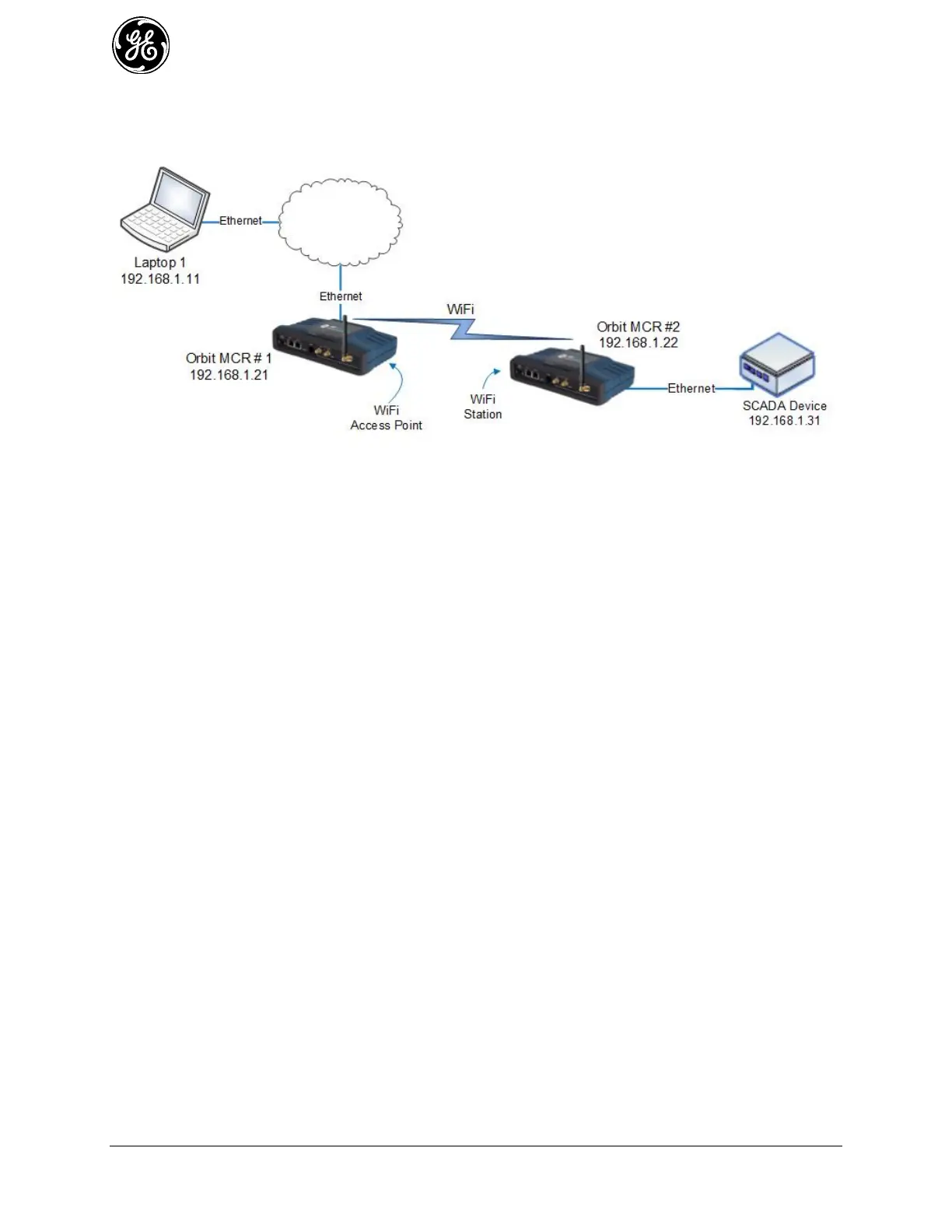

Figure 3-18. Example 2: Units Providing Wireless Bridge Between Laptop & SCADA Device
The following commands will configure the Orbit MCR #1 for this scenario.
% set interfaces interface Wi-Fi type wifi
% set interfaces interface Wi-Fi wifi-config mode access-point ap-config ap myssid enabled
true
% set interfaces interface Bridge bridge-settings members wifi-ap myssid
% set interfaces interface Bridge ipv4 address 192.168.1.21 prefix-length 24
% set services dhcp enabled true v4subnet 192.168.1.0/24 domain-name gemds range-start
192.168.1.10 range-end 192.168.1.19 router 192.168.1.1 broadcast-address 192.168.1.255
The following commands will configure the Orbit MCR #2 for this scenario.
% set interfaces interface Wi-Fi type wifi
% set interfaces interface Wi-Fi wifi-config mode access-point ap-config ap myssid enabled
true
% set interfaces interface Bridge type bridge
% set interfaces interface Bridge bridge-settings members port ETH1
% set interfaces interface Bridge bridge-settings members wifi-station interface Wi-Fi
% set interfaces interface Bridge ipv4 address 192.168.1.22 prefix-length 24
