Chapter 5: Repair Procedures
Heater Housing Repairs
5-4 Service Manual

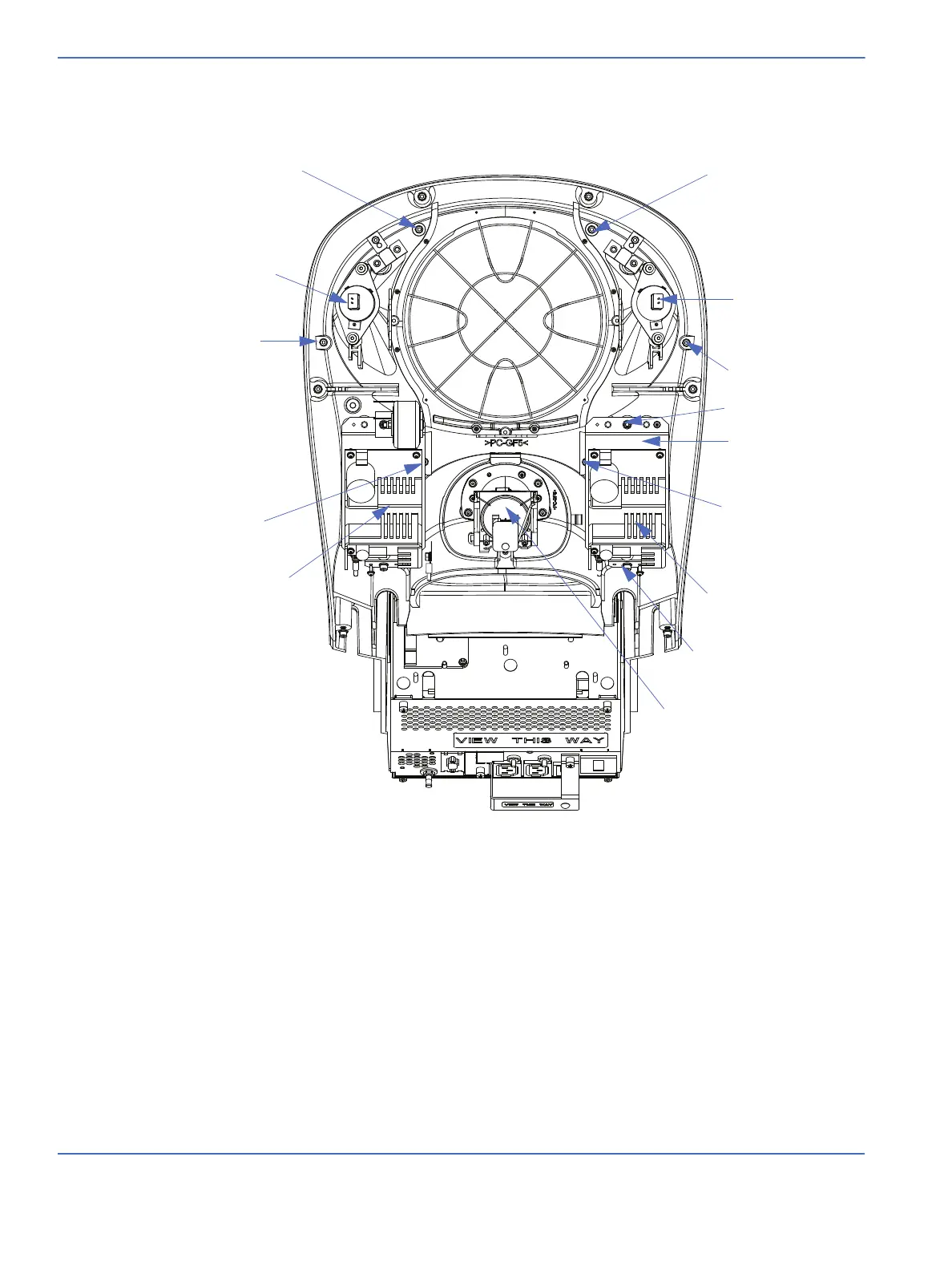

FIGURE 5-1. Heater Housing – Rear View
Procedure light
Note: Upper housing, heat engine and
exhaust duct are not shown, for
visibility
Bottom
mounting screw
Main DC power supply
Duct mounting
screw 6
Power supply
mounting plate
Top mounting screw
Duct mounting
screw 5
Observation Light
Duct mounting
screw 4
Duct mounting
screw 3
Observation Light
Duct mounting
screw 2
Duct mounting
screw 1
Procedure light
power supply
