Chapter 5: Repair Procedures
Appearance Strip Replacement
5-20 Service Manual
2. Remove the two screws mounting the upper housing to the dovetail rails.
3. Slide the upper housing forward to remove it from the dovetail rails.
4. Reverse the preceding instructions to reassemble.
5.6 Appearance Strip Replacement
1. For bedded and wall mount models, use a small screw driver to remove the rail end cap and then pull
the strip downward out of the dovetail rail.
2. For freestanding models, insert a small screw driver into the back of the strip using one of the slots
provided on the sides of the strip near base and push the strip end out to grab and then gently pull the
strip out of the dovetail rail.
M4 X 12 Screw
M4 Internal Lock
Star Washer
Ground Strap
Masimo SET 2 Nellcor

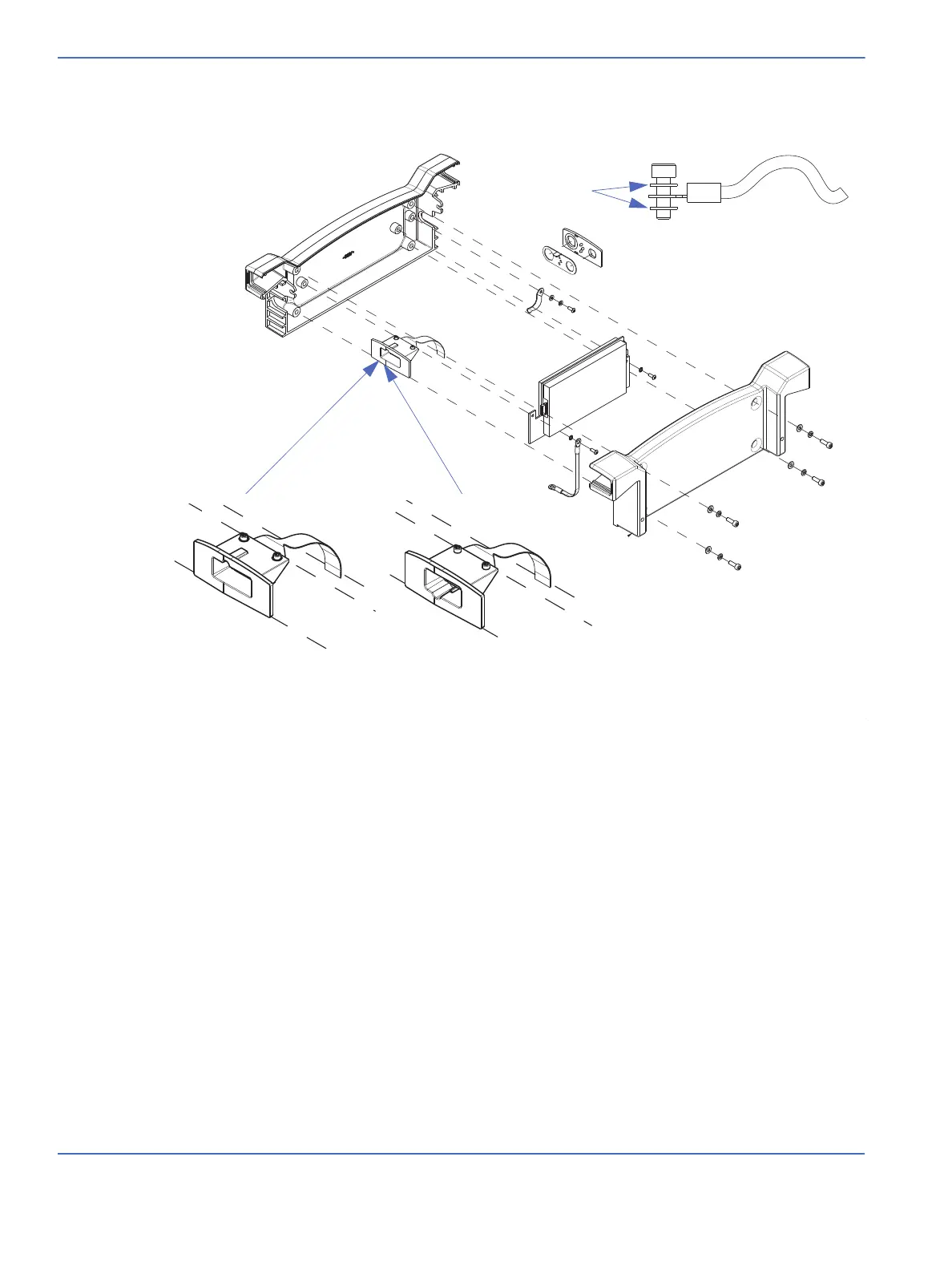

FIGURE 5-11. Probe Panel Assembly (with Masimo SET 2 or Nellcor SpO
2
Jack)
