GE PANDA Service Manual

Chapter 6: Illustrated Parts
Test Points
Service Manual 6-37

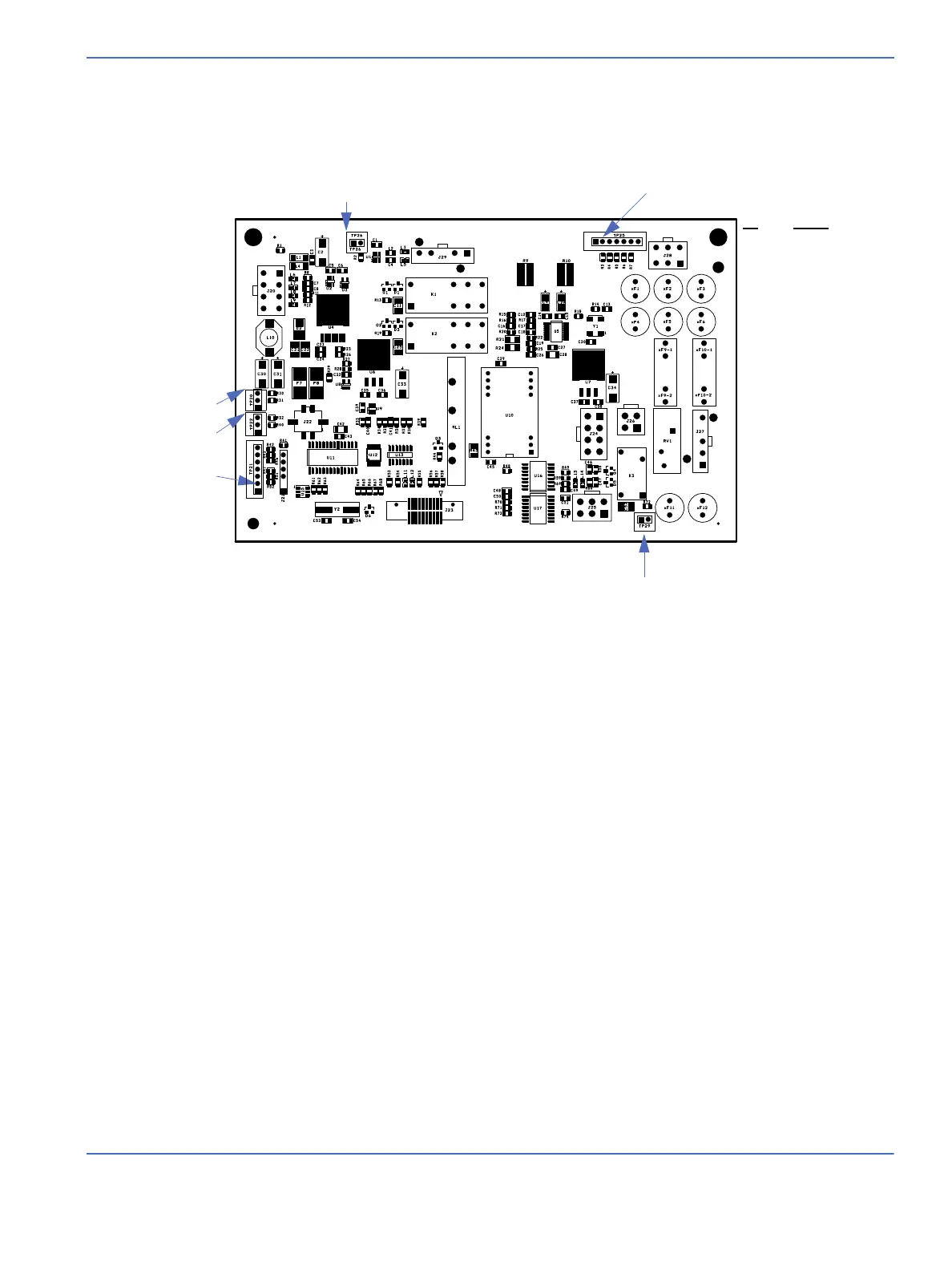

6.12.2 Power Board
TP Value
20-1 Ground (DC)
20-2 +5V
20-3 +12V
22-1 Ground (DC)
22-2 +3.3V
22-3 +12V
25-1 Ground AC side
(not connected
to earth)
25-7 5V - ni
TP 20
TP 29
TP 22
TP 21
Pin 1
TP 25
Pin 1
TP 20
TP 26

GE PANDA Specifications

General

Type	Infant Warmer
Manufacturer	GE Healthcare
Control Modes	Manual, Servo
Integrated Scale	Yes
SpO2 Monitoring	Optional
Bed Tilt	Yes
Heater Type	Ceramic
Alarms	Power Failure
Power Requirements	100-240 VAC, 50/60 Hz
Model	PANDA
Resuscitation Options	Optional
Skin Temperature Probe Accuracy	±0.3°C
