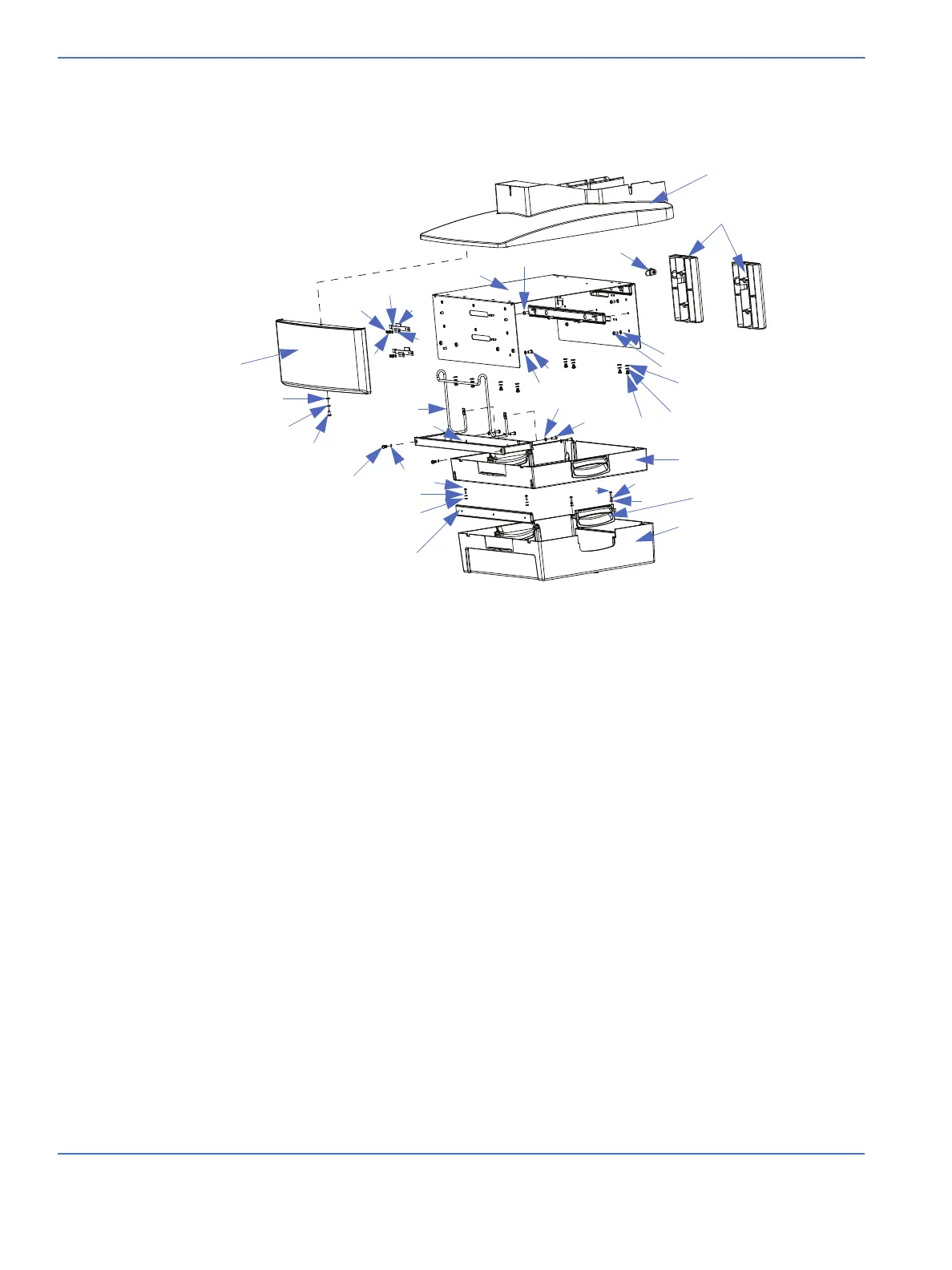

FIGURE 6-13. Double Drawers
1. M-4 hex nut....................................................6600-0711-407
2. Spit ring washer,
M4 x 4.1 ID X 0.9...........................................6600-0713-403
3. Washer, M4 x 4.3 ID 0.8 ............................6600-0712-403
4. Drawer retainer strip .................................6600-2113-500
5. Tape UHMW Poly 1.1” long .....................6600-1758-503
6. Drawer stop spring.....................................6600-2114-500
7. Drawer, support brkt..................................6600-2118-500
8. Screw, M4 x 10 Btn Hd ..............................6600-0706-409
9. Shroud, 20”, plastic.....................................6600-2088-500
10. Drawer mounting lock.................................. 2080959-001
Dble drwr cam........................................................ M1079777
11. Drawer support cover...............................6600-2117-500
12. Split ring washer,
M6 x 6.1 ID 1.6...............................................6600-0713-405
13. Screw, M6 x 16 Btn Hd ..............................6600-0706-428
14. Washer, M6 X 6.4 ID 1.6............................6600-0712-405
15. Drawer, 2.75”, Plastic..................................6600-2085-500
Drawer, 2.75”, wood NAT OAK................6600-1667-501
Drawer, 2.75”, wood MED OAK...............6600-1667-502
Drawer, 2.75”, wood CHERRY MAPLE..6600-1667-503
Drawer, 2.75”, wood NAT MAPLE...........6600-1667-504
16. Drawer, 5”, Plastic ....................................... 6600-2086-500
Drawer, 5”, wood NAT OAK...................... 6600-1668-501
Drawer, 5”, wood MED OAK .................... 6600-1668-502
Drawer, 5”, wood CHERRYMAPLE......... 6600-1668-503
Drawer, 5”, wood NAT MAPLE ................ 6600-1668-504
17. Screw, M4 x 16, Btn Hd............................. 6600-0706-411
18. Plastic handle
(Plas. Dwrs only)........................................... 6600-2116-500
19. Drawer slide assy........................................ 6600-2087-500
20. Din rail upgrade kit................................................M1143466
21. Pleur-evac hanger, front.......................... 6600-2115-500
22. Shroud skirt .................................................6600-2119-500*
Requires Branding Label Set choose M1111360
Label Set Giraffe Branding or M1111366 Label
Set Panda Branding as appropriate
23. M6 x 12 Btn Hd Cap Screw..................... 6600-0706-427
*Refer to section 6.11 for labels.
20
14
12
23
23
12
8
2
3
19
20
21
12
23
12
13
13
12
23
13
12
10
11
9
8
7
6
1
5
4
2
15
18
3
2
17
16
