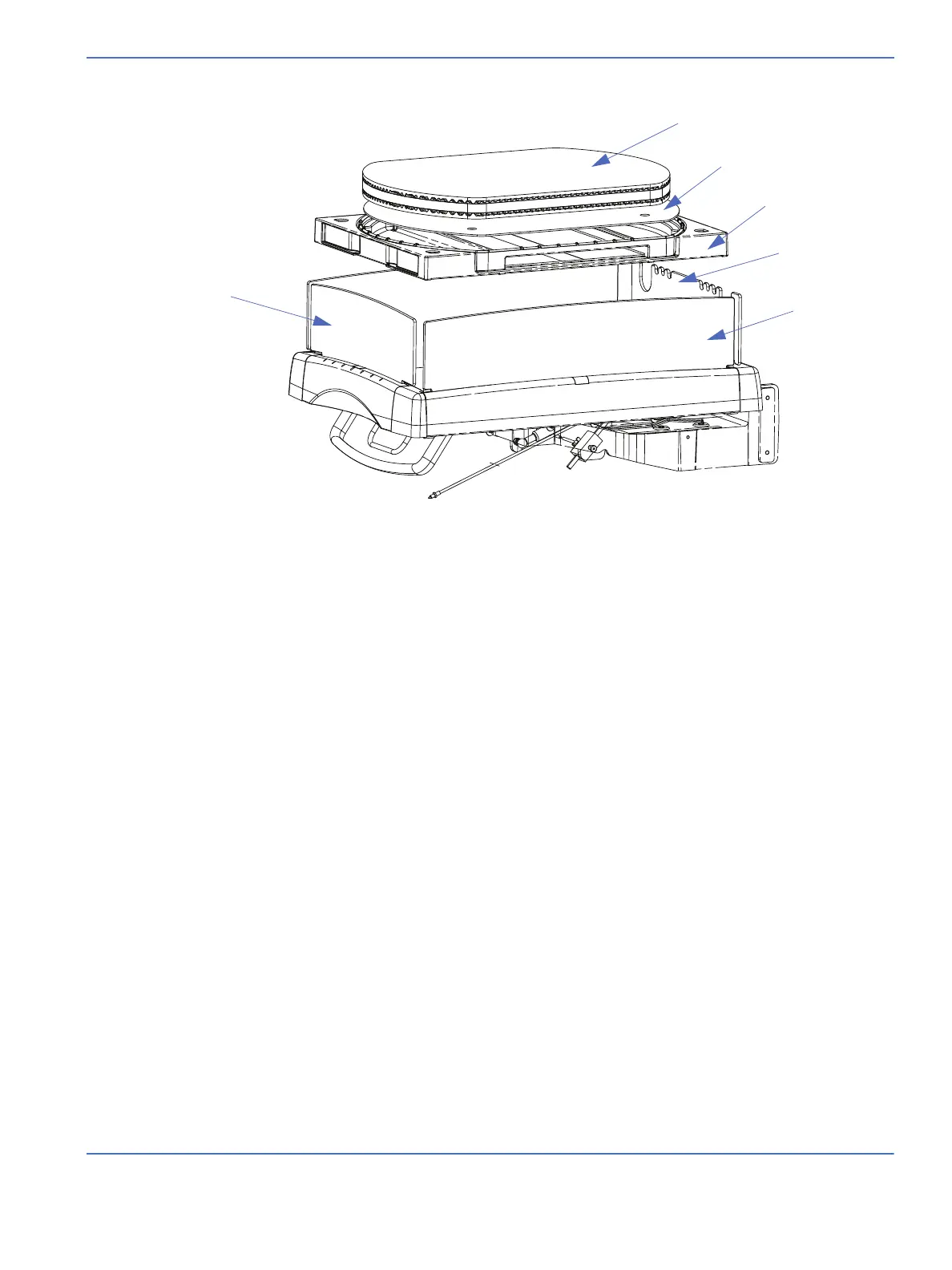

FIGURE 6-12. Bed Assembly - 3 (Giraffe Warmer Shown)
1. Mattress, Giraffe................................................................................................................................................................................ 2076066-001
Mattress, Panda.............................................................................................................................................................................6600-2057-500
2. Mattress support plate, Giraffe ..............................................................................................................................................6600-1365-500
Mattress support plate, Panda...............................................................................................................................................6600-2058-500
3. Translation deck (Giraffe only)................................................................................................................................................6600-1352-500
Mattress tray support.................................................................................................................................................................6600-1353-500
X-ray tray..........................................................................................................................................................................................6600-1334-500
Locking latch...................................................................................................................................................................................6600-1363-500
Latch cover......................................................................................................................................................................................6600-1364-500
Latch spring.....................................................................................................................................................................................6600-1079-400
4. Rear bed side panel assy., Giraffe.........................................................................................................................................6600-1655-500
Rear bed side panel assy, Panda ..........................................................................................................................................6600-2063-500
Rear bed side panel assy, tube management, Giraffe ...............................................................................................6600-2146-500
Rear bed side panel assy, tube management, Panda................................................................................................6600-2145-500
5. Left/right bed side panel assy, Giraffe.......................................................................................................................................... M1092331
Left/right bed side panel assy, Panda........................................................................................................................................... M1092338
Left/right HFOV side panel assy, Giraffe...................................................................................................................................... M1092332
Left/right HFOV side panel assy, Panda....................................................................................................................................... M1092340
6. Front bed side panel assy, Giraffe .................................................................................................................................................. M1092335
Front bed side panel assy, Panda................................................................................................................................................... M1092342
Front bed side panel assy, tube management, Giraffe........................................................................................................ M1092337
Front bed side panel assy, tube management, Panda......................................................................................................... M1092506
