GE PANDA Service Manual

Chapter 6: Illustrated Parts
Bed Assembly (Bedded Models Only)
6-14 Service Manual

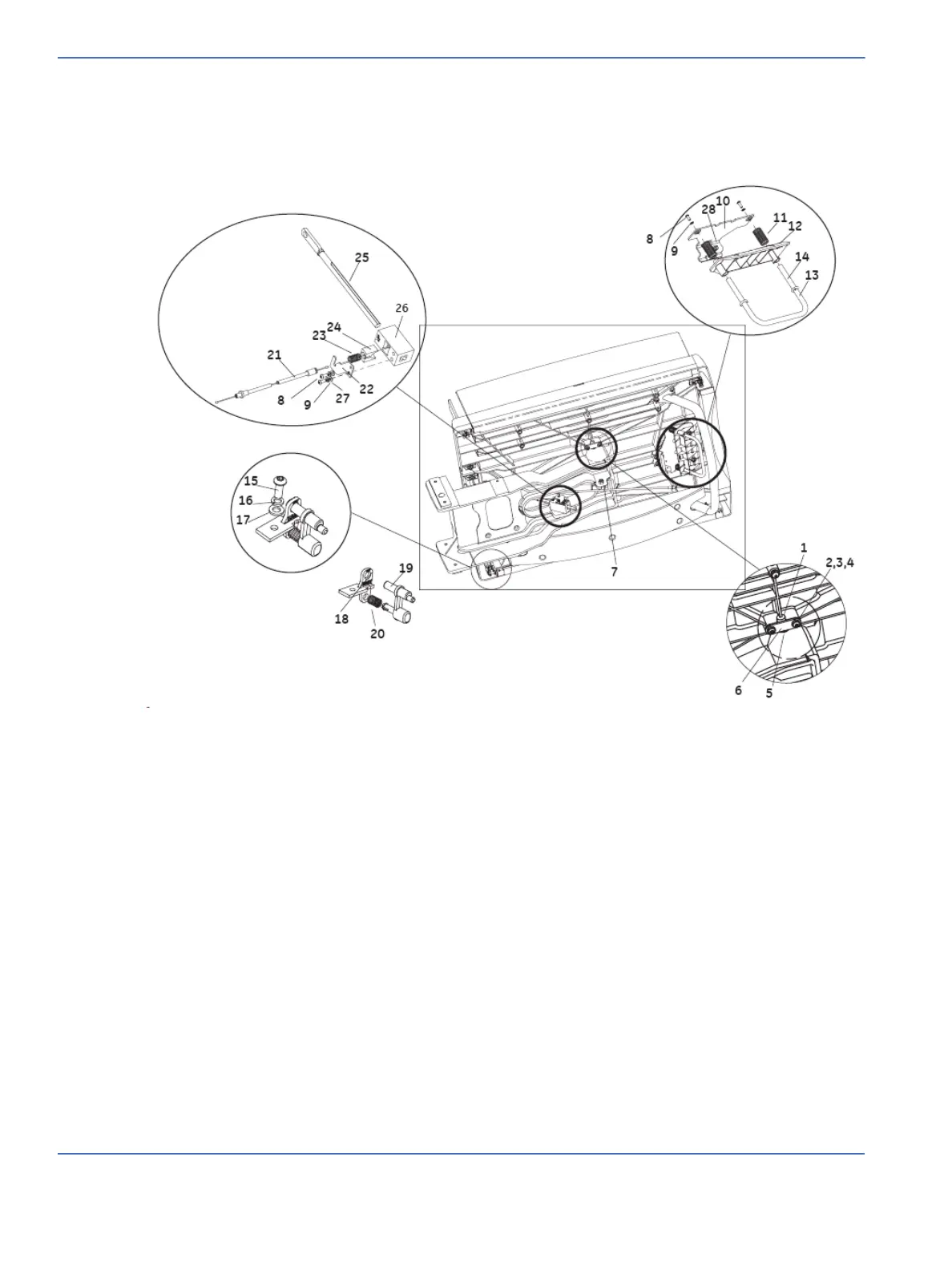

FIGURE 6-11. Bed Assembly - 2
1. Main axle........................................................ 6600-2070-500
2. Screw, M6 X 16 Btn Hd............................. 6600-0706-428
3. Split ring washer,
M6 x 6.1 ID, 1.6............................................ 6600-0713-405
4. Washer, M6 X 6.4 ID, 1.6.......................... 6600-0712-405
5. Bearing, plastic clip................................... 6600-2071-500
6. Axle strap....................................................... 6600-1662-500
7. Lock nut, M8 X 1.25................................... 6600-0714-405
8. Screw, M4 X 10 Btn Hd............................. 6600-0706-409
9. Split ring washer,
M4 X 4.1 ID, 0.9............................................ 6600-0713-403
10. Damper cable bracket............................. 6600-1663-500
11. Spring, .66 OD x 1.5L................................. 6600-1292-400
12. Damper release
handle bracket............................................ 6600-1660-500
13. O-ring .........................................................................M1072016
14. Tilt release handle .....................................6600-2073-500
15. Screw, M6 X 12 Btn Hd.............................6600-0706-427
16. Split ring washer,
M6 X 6.1 ID, 1.6 ............................................6600-0713-405
17. Washer, M6 X 6.4 ID, 1.6..........................6600-0712-405
18. Side panel keeper.......................................6600-2068-500
19. Side panel release......................................6600-2069-500
20. Spring, side panel release ......................6600-1290-400
21. Secondary Lock Cable ....................................... M1073749
22. Bracket, cable........................................................ M1073280
23. Spring, secondary lock ...................................... M1073281
24. Slide Lock Secondary Lock.............................. M1073278
25. Threaded Strut Secondary Lock.................... M1073277
26. Block Housing Secondary Lock ..................... M1073279
27. Washer, M4 X 4.3 ID, 0.8..........................6600-0712-403
28. Grommet.................................................................. M1107531

GE PANDA Specifications

General

Type	Infant Warmer
Manufacturer	GE Healthcare
Control Modes	Manual, Servo
Integrated Scale	Yes
SpO2 Monitoring	Optional
Bed Tilt	Yes
Heater Type	Ceramic
Alarms	Power Failure
Power Requirements	100-240 VAC, 50/60 Hz
Model	PANDA
Resuscitation Options	Optional
Skin Temperature Probe Accuracy	±0.3°C
