Chapter 5: Repair Procedures
Lower Unit Repairs (Bedded and Freestanding Models)
5-22 Service Manual
6. Install new foot switch. Make sure that you do not pinch the electrical wires.
7. Ensure that foot switch connectors are secured with retaining clips.
5.7.4 Caster Replacement (Figure 5-14) (Bedded and Freestanding Models)
The casters may be replaced with the unit upright or carefully placed on its back.
1. Lock all the other casters.
2. Lift the caster off the floor and use blocks to support the leg near the caster you are replacing.
3. Remove screw(s) from boss underneath the leg casting.
4. Secure the caster to the leg by tightening the screw(s) through the caster plate into the boss in the
bottom of the leg.

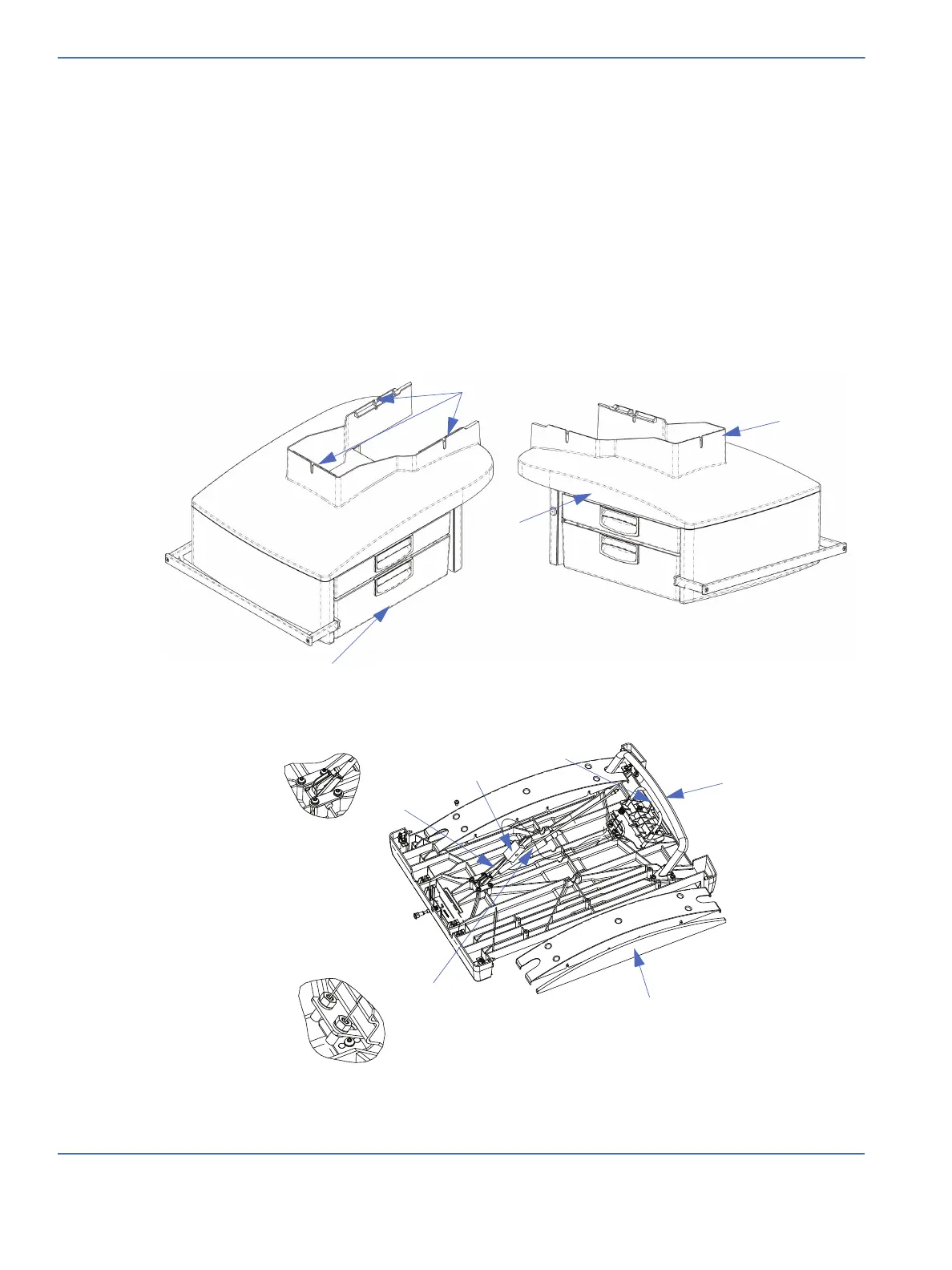

Drawers
Grasp
here
Mounting screw
locations
Shroud
FIGURE 5-12. Storage Module
Hydraulic tilt
cylinder
Pontoon inlay
Threaded
strut
Front handle
FIGURE 5-13. Bed Disassembly
Secondary
lock
Tilt handle
